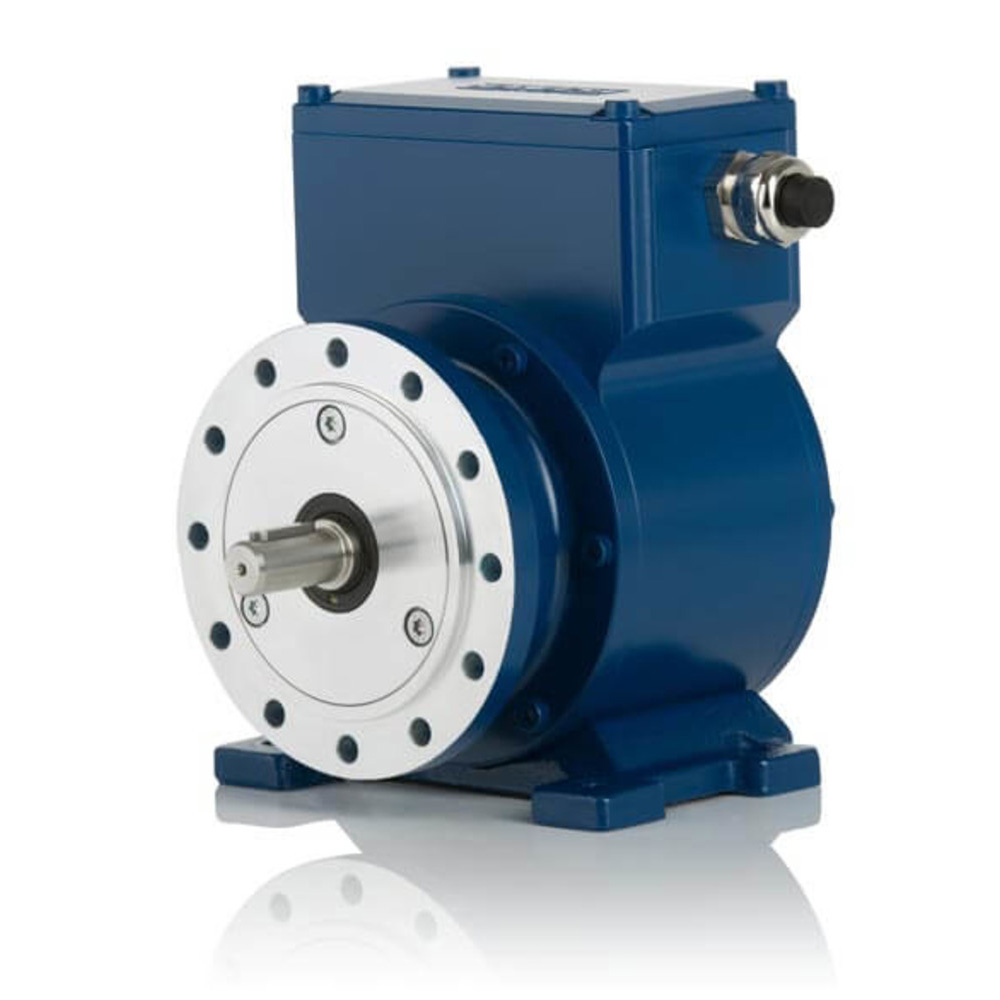

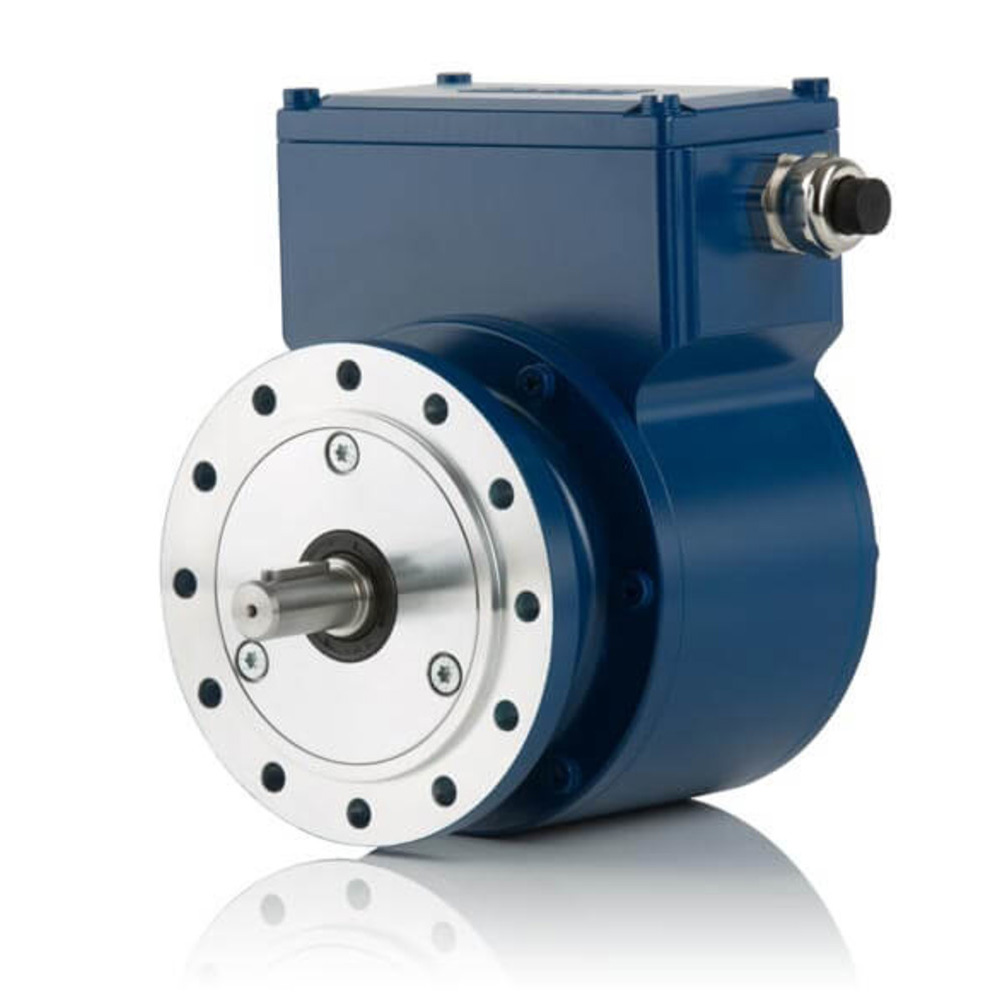

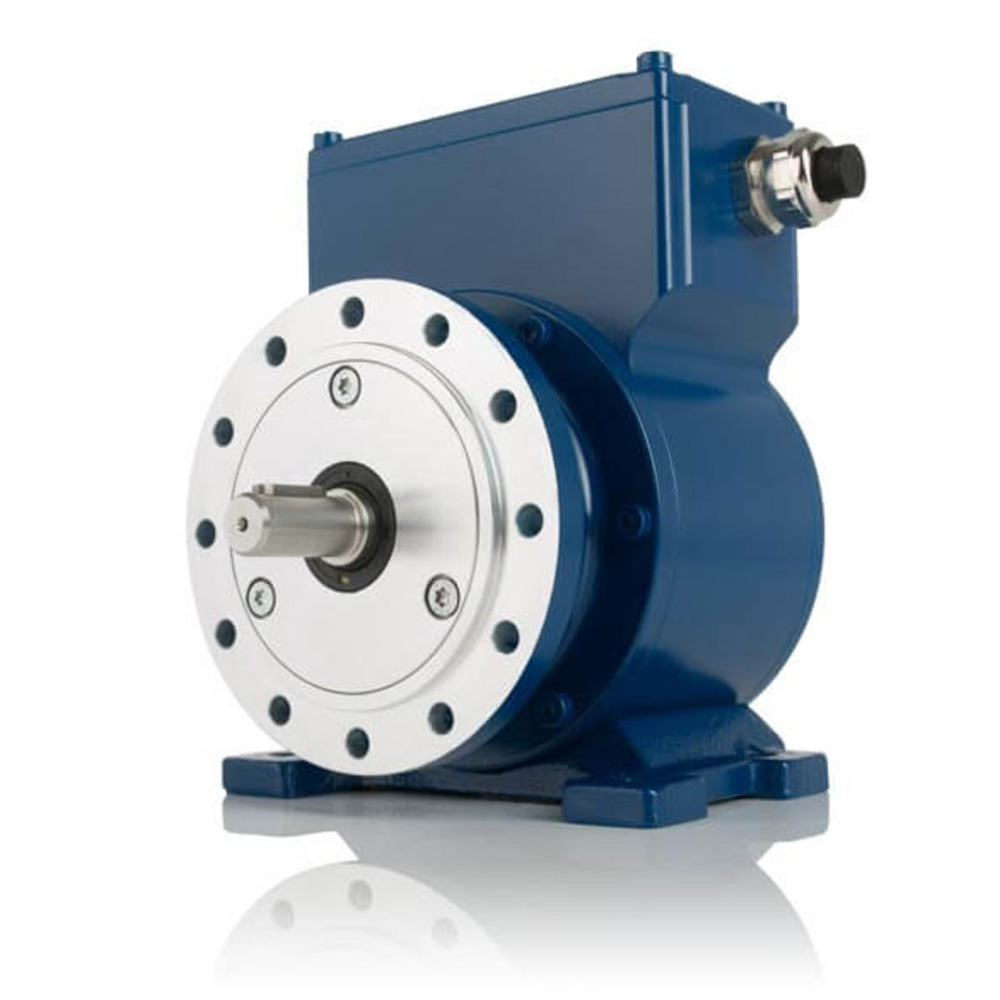

14 mm solid shaft (flange or foot mounting)
Service life extended many times under the most extreme of operating conditions
High signal quality, up to 16 bit singleturn, variety of interfaces
Options: Incremental output
| Technical Data | |
| Attribute | Value |
| Supply voltage | 12-30 VDC |
| Resolution | Singleturn max. 16 bit (65536 steps per rotation) |
| Number of interfaces | 1 |
| Interface/Product Name |
- SSI (Gray; Binär; Inkremental) | ALS 40 - Parallel | ALPA 40 - HTL,TTL | FGL 40 |
| Maximum rotation | Solid shaft: up to 4000 rpm |
| Electrical connection |

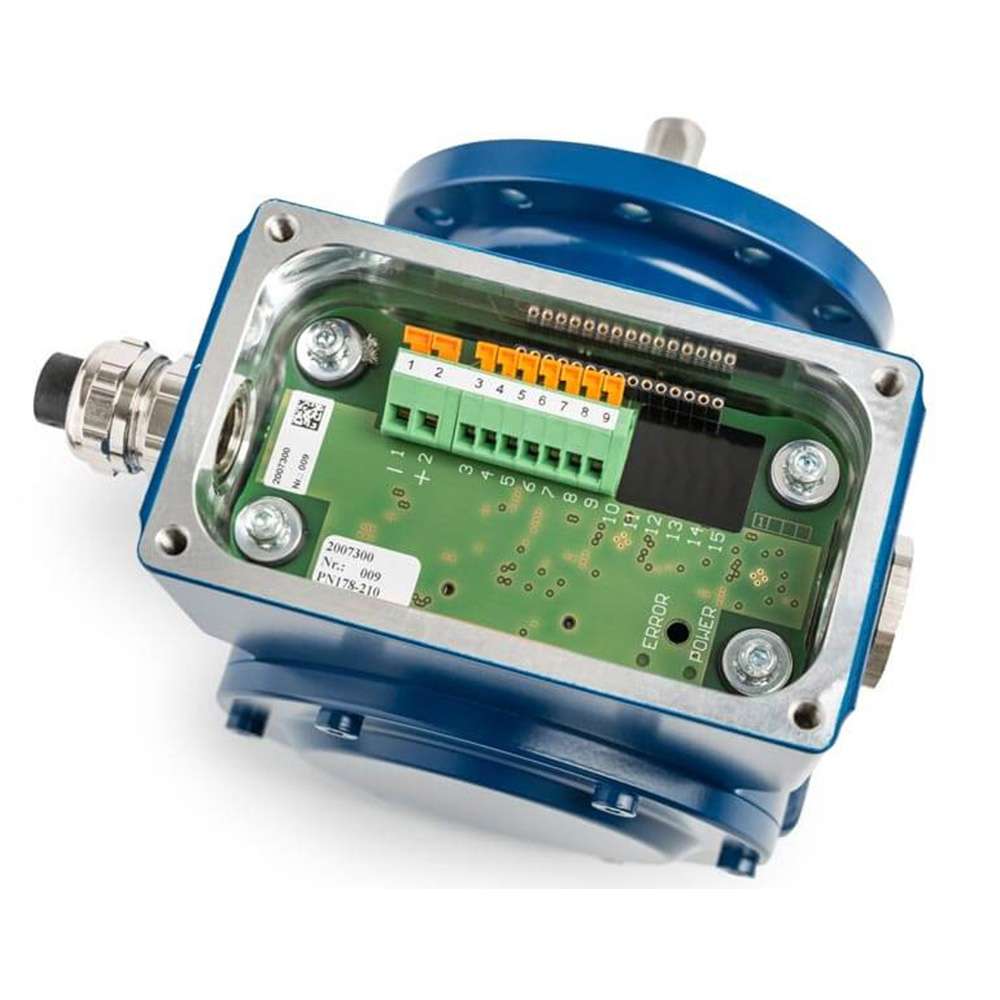

- Terminal strip in a terminal box - Fixed cable |
| Construction type / Ø shafts | Solid shaft (B5, B35): Ø 11 mm, Ø 14 mm with feather key |
| Device temperature range | -25 °C to +100 °C |
| Degree of protection | IP66 / IP67 |
| Weight | Approx. 3.5 kg |
| Device options | Preset function (preset 1000) |
| Mechanical options | |
| Special features and certificates |
- Ball bearings with 40% higher load rating, strengthened shaft - UL/CSA |
| The specialists for the most extreme conditions | |
| Looper encoders AL...40 are absolute encoders designed for the most extreme conditions with shock loads up to 450 g. They are mostly deployed in roll stands in hot rolling mills between the roll housings where they subject to high levels of energy. They supply precise information about the angle position of the looper, which is used for the highly dynamic feedback speed control of the rollers. At the same time the AL...40 reach a service life many times longer than other models. Lubricated with special grease their ball bearings offer an approximately 40 per cent higher load rating. | |
