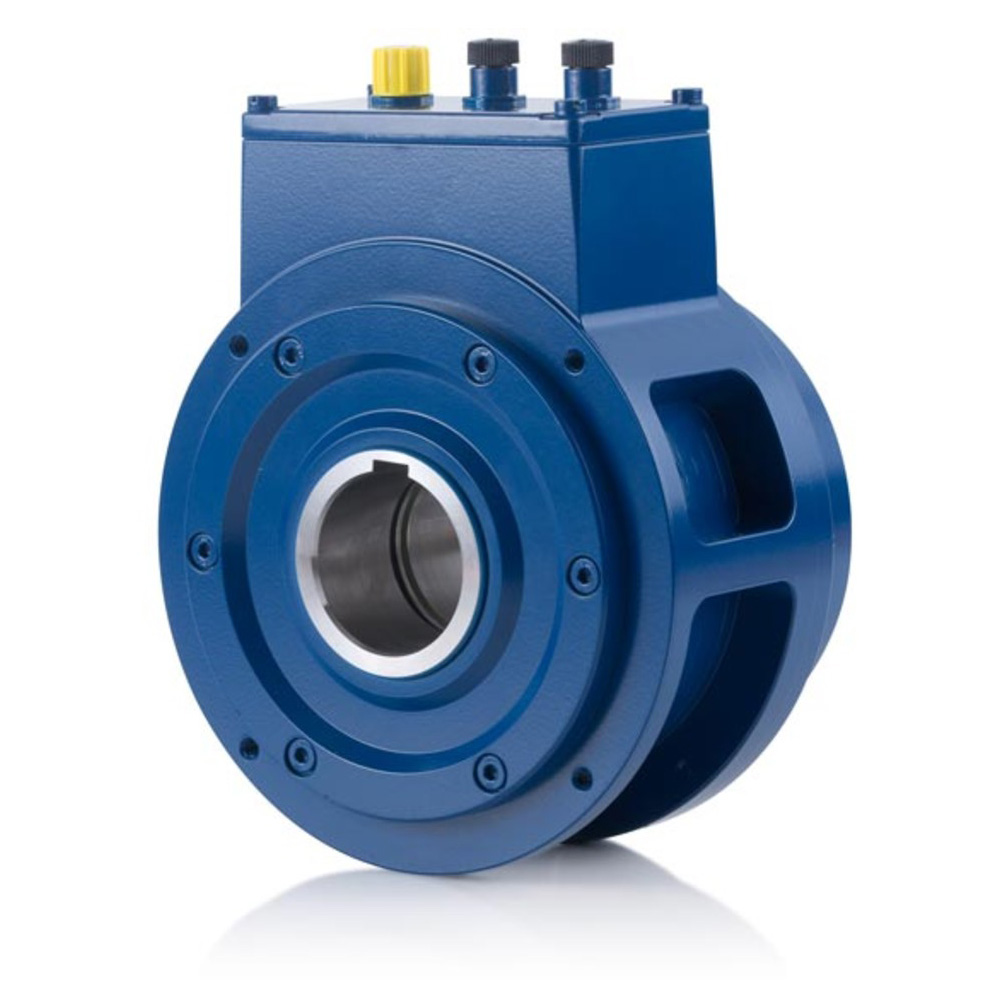

Hollow shafts up to Ø 50 mm
B14 flange as basis to attach 2 more devices
High signal quality, up to 16 bit singleturn, variety of interfaces
Options: Additional incremental output
| Technical Data | |
| Attribute | Value |
| Supply voltage | 12-30 VDC |
| Resolution | Singleturn max. 16 bit (65536 steps per rotation) |
| Number of interfaces | 1 or 2 |
| Interface/Product Name |
- EtherCAT | ASEH 60 - SSI | ASSH 60 - Parallel | ASPAH 60 |
| Maximum rotation | Hollow shaft: up to 4000 rpm |
| Electrical connection |
- Terminal strip in a terminal box - Fixed cable |
| Construction type / Ø shafts | Hollow shaft / max. Ø 50 mm with feather key |
| Device temperature range | -25 °C to +85 °C |
| Degree of protection | Up to IP55 |
| Weight | Approx. 7 kg |
| Device options |

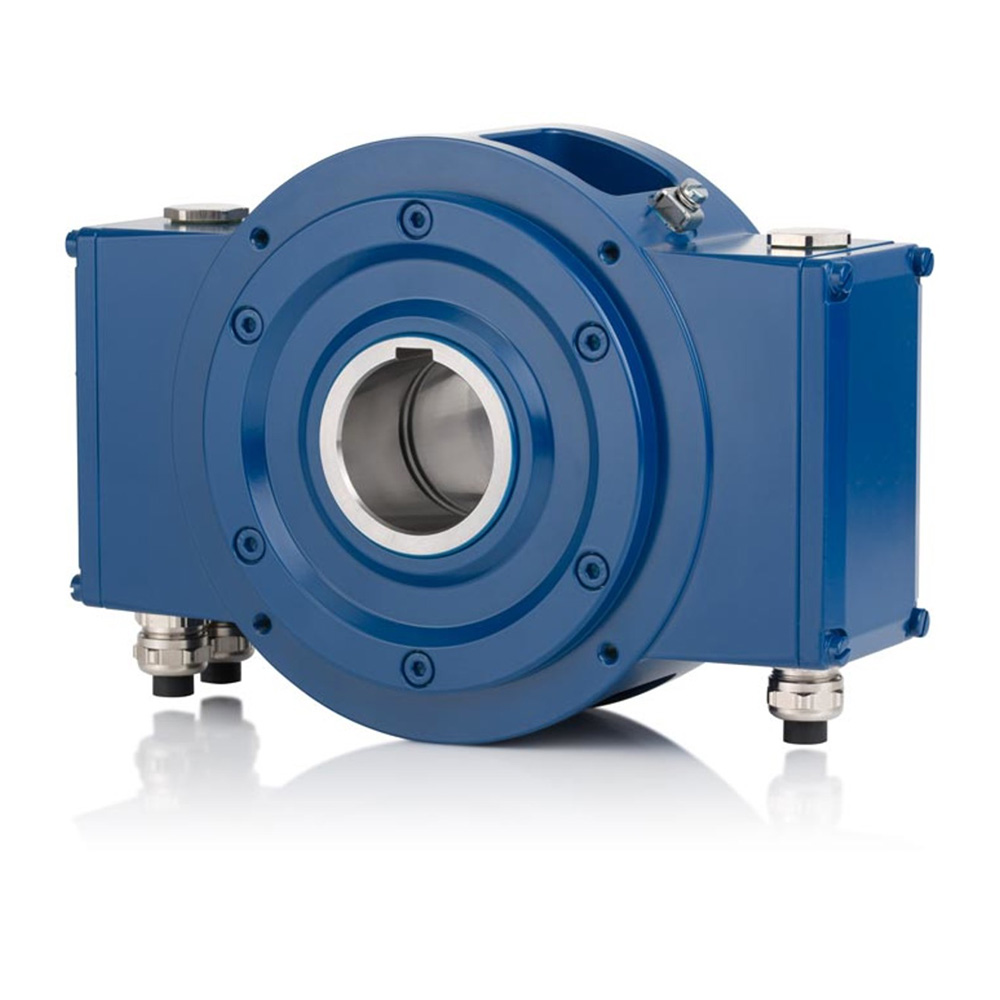

- Additional single incremental output in second terminal box - Additional double incremental output with reference pulse (HTL only) in second terminal box |
| Mechanical options |
- B14 flange for further attachments - Torque bracket (on request) |
| Special features and certificates | UL/CSA |
| The rugged absolute encoders | |
| The singleturn encoders are particularly robust; they can be deployed in a wide variety of applications to detect positions and rotational speeds at main drives in steel and rolling mills, in mining operations and in port and crane systems. They are mostly mounted on the unused shaft end via an isolated adapter flange or directly onto the shaft. With their B14 flange they are ideally suitable to attach other devices. To increase safety or facilitate separate signal transmission to the motor controls they can be installed in a redundant configuration with two equal scanning systems and evaluation electronics. | |
