For the best-possible protection of cables in heavy-duty applications
Tailor-made system solutions to meet different requirements
A variety of sealing inserts; integrated strain relief and shielding element
Individual lengths, suitable for Cu and FOC cables

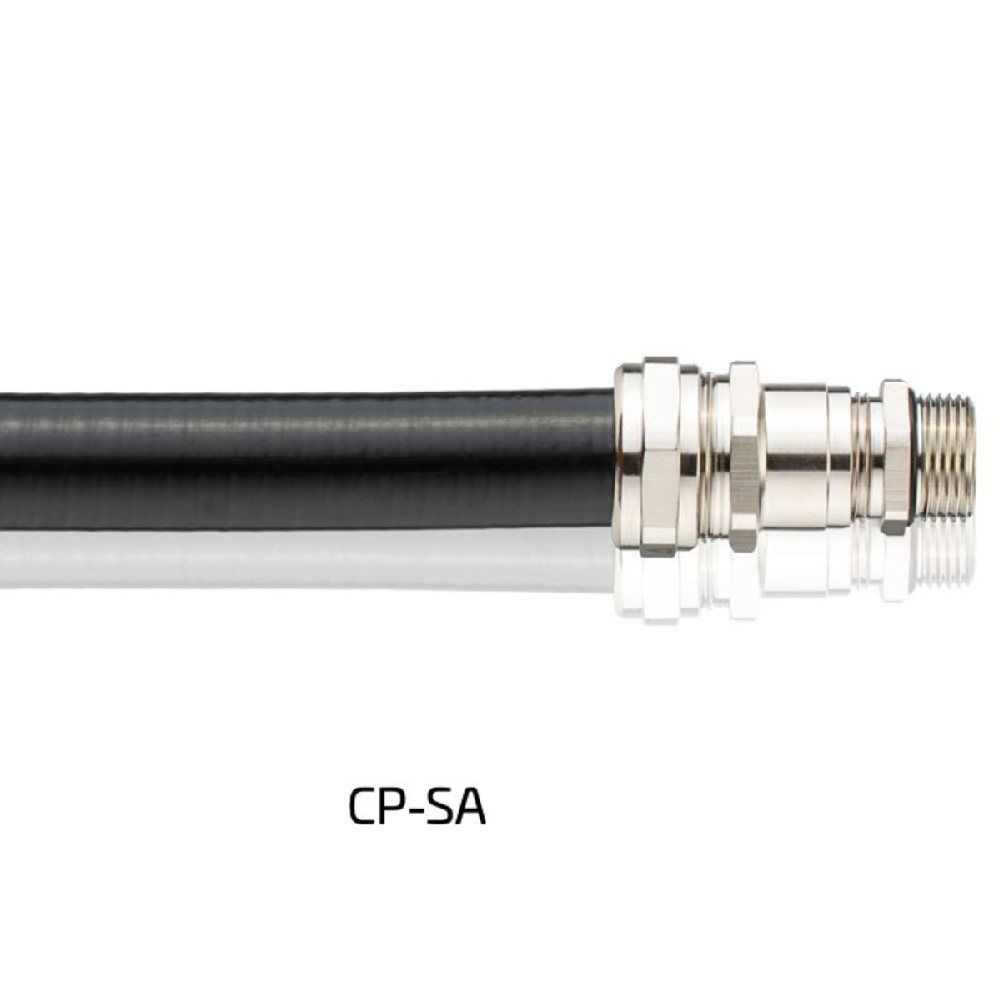

| CP-SA | |
| CP-SA | Cable Protection – standard applications / protection hose (1/2 inch), black |
| Fields of application | Standard applications, including outdoor areas (e.g., crane technology, mining) that do not need to meet high-temperature requirements |
| Material | Galvanized steel / PVC sheath |
| Properties | Extremely robust and impact shock proof, corrosion resistant, oil resistant, UV, ozone and weather resistant |
| Certification | UL/CSA (E18917) |
| Technical data | See product catalog |

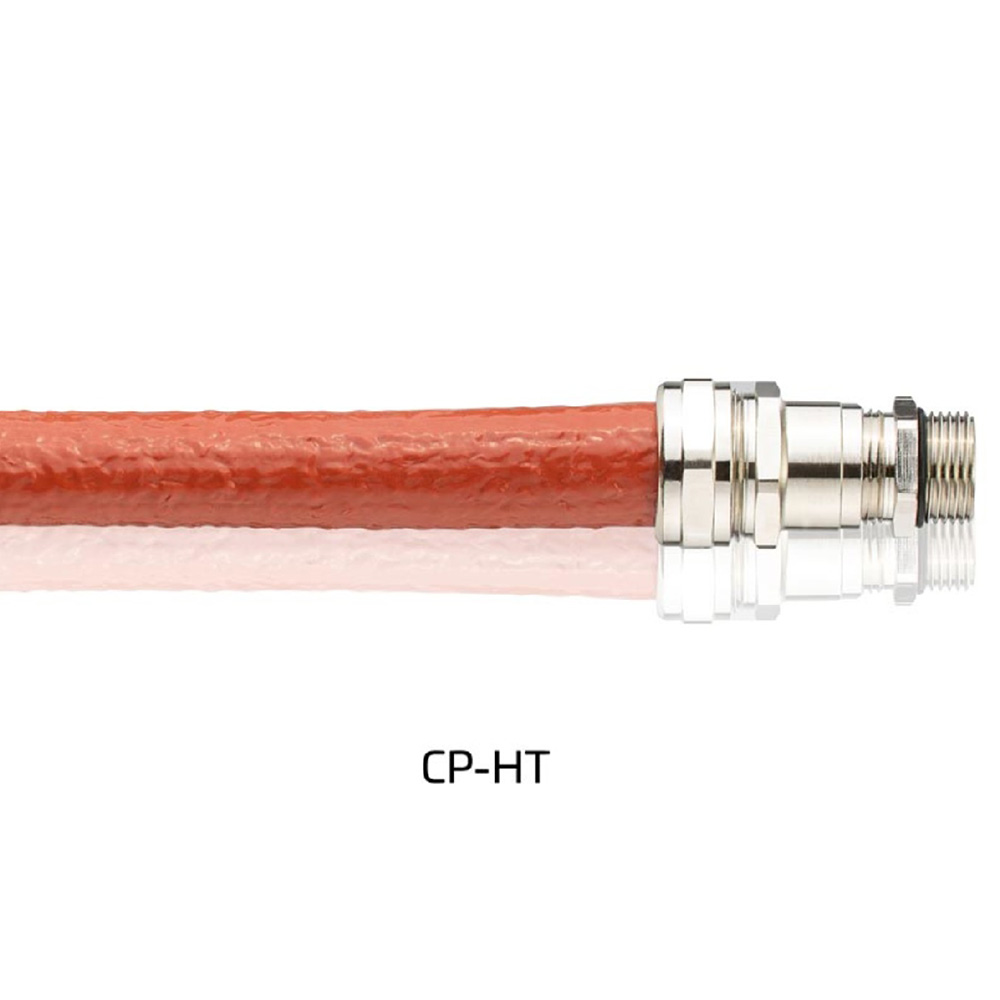

| CP-HT | |
| CP-HT | Cable Protection – high temperatures / protection hose (5/8 inch), red |
| Fields of application | Applications subject to extreme temperature loads due to radiation or direct contact, licking flames, flying sparks or molten metal spatter (e.g., steel making, hot rolling mills) |
| Material | Optical fiber / silicone sheath |
| Properties | Briefly flame resistant, very flexible, oil and chemical resistant, UV, ozone and weather-resistant |
| Technical data | See product catalog |

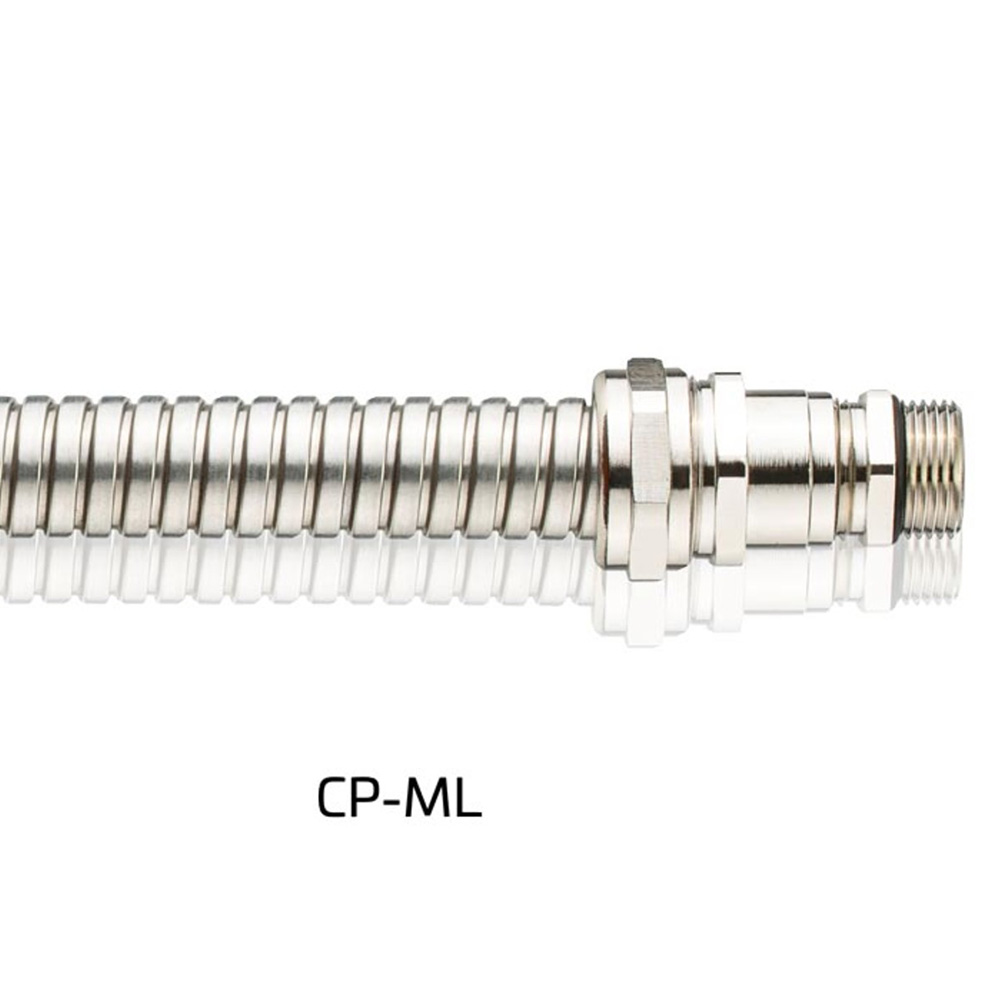

| CP-ML | |
| CP-ML | Cable Protection – mechanical loads / protection hose (1/2 inch), stainless-steel colours |
| Fields of application | Applications subject to mechanical impact loads from being struck by falling parts or through contact with transport vehicles or personnel (e.g., rolling mills, mining) |
| Material | Stainless steel V2A (agraff profile AISI-304) |
| Properties | Extremely robust, flexible and impact shock proof, very good oil and chemical resistance, UV, ozone and weather resistant |
| Technical data | See product catalog |

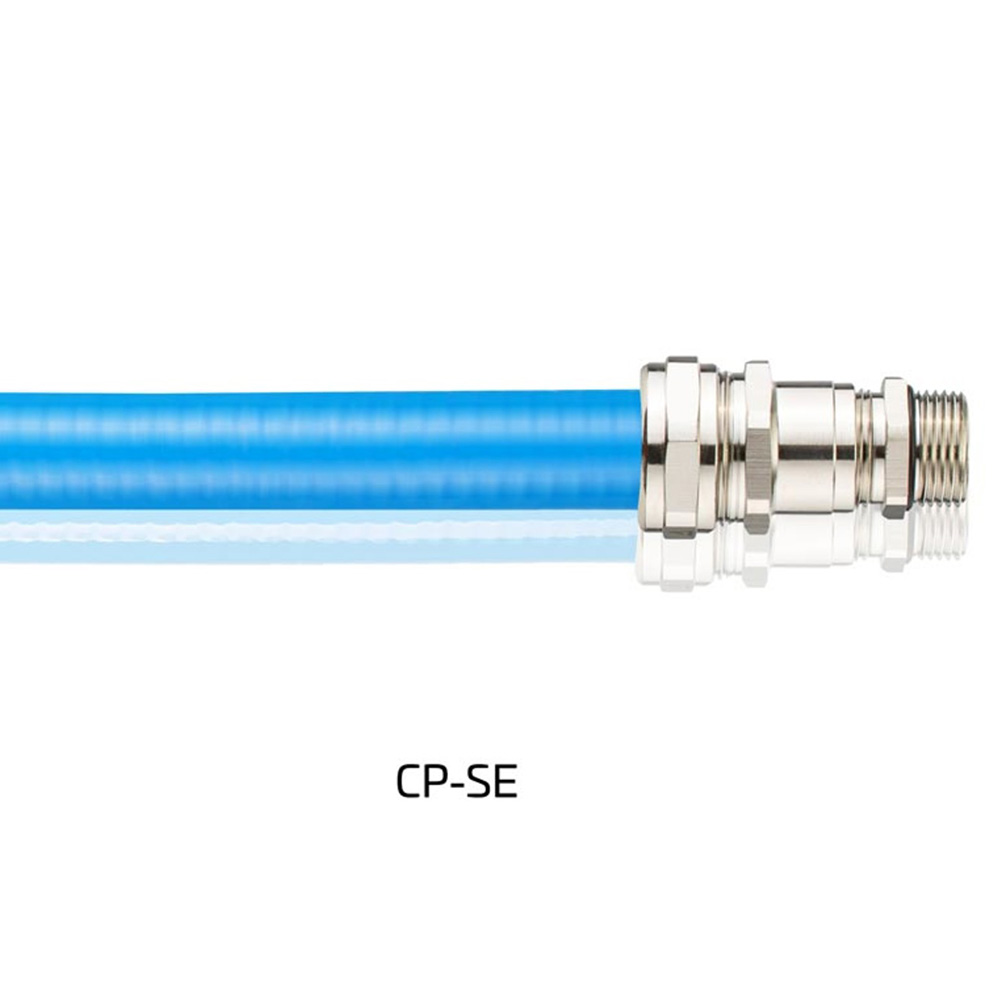

| CP-SE | |
| CP-SE | Cable Protection – saliferous environment / protection hose (1/2 inch), blue |
| Fields of application | Applications subject to saliferous air in outdoor areas (e.g. crane technology, offshore sectors) that do not need to meet high-temperature requirements |
| Material | Stainless steel V4A (AISI-316) / TBU sheath |
| Properties | Extremely UV, ozone and weather resistant, Extremely robust and shock-proof, corrosion resistant , oil and chemical resistant |
| Technical data | See product catalog |
| The bodyguards for encoder cables | |
| The tailor-made cable protection systems reliably protect encoder supply cables and signal lines against extreme conditions that prevail in heavy-duty application environments. Depending on the version they are designed to protect against high temperatures, mechanical impact loads, aggressive fluids as well as extreme environmental effects and weather conditions such as exposure to UV radiation and ozone. Protective hoses up to 30 meters in length and sealing inserts with 1 or 2-hole seals to accommodate different cable diameters facilitate a broad range of possible applications. Moreover, the integrated strain relief as well as the optional shielding element guarantee interference-free plant operations. | |

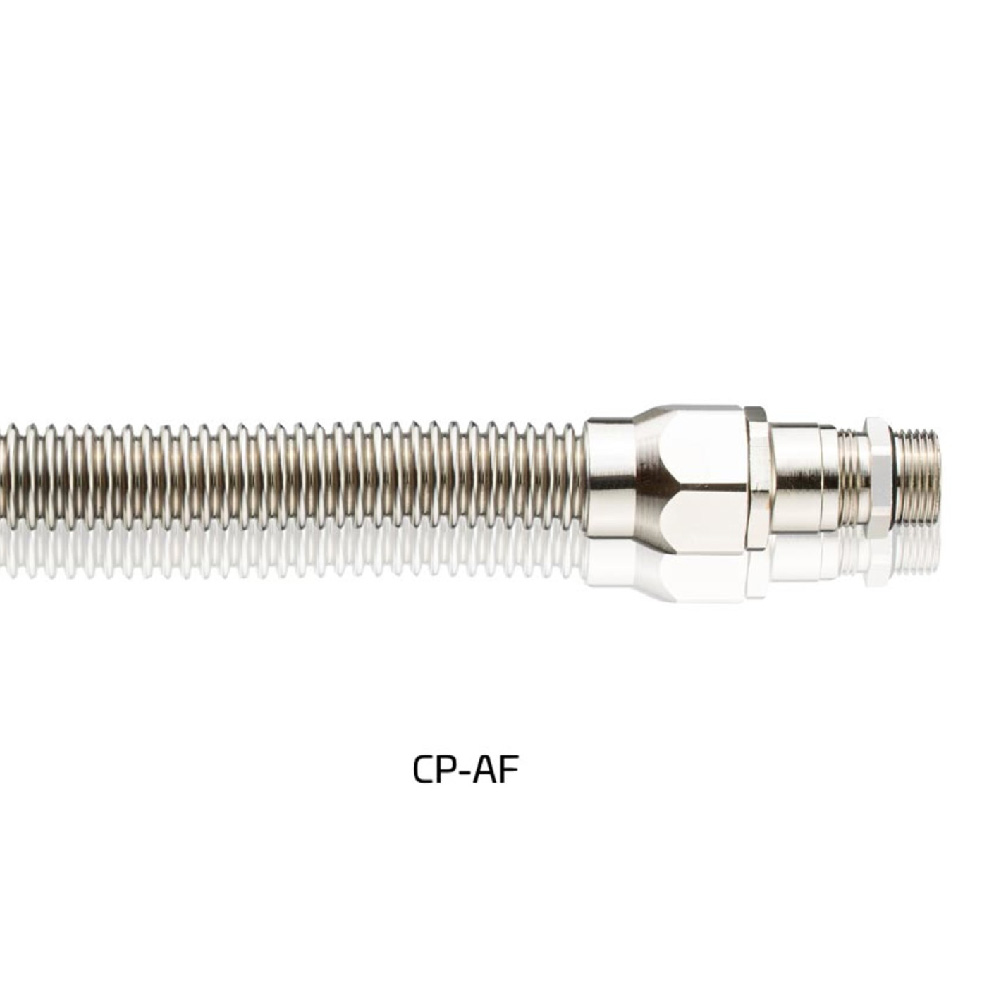

| CP-AF | |
| CP-AF | Cable Protection – aggressive fluids / protection hose (DN 16), stainless-steel colours |
| Fields of application | Applications exposed to aggressive liquid loads such as acids, alkalis, cooling emulsions, oils, chemicals (e.g., steel refining) |
| Material | Stainless steel V4A (closed corrugated pipe hose AISI-316L) |
| Properties | Maximum corrosion-resistance, robust, very good oil and chemical resistance, UV, ozone and weather resistant |
| Technical data | See product catalog |
