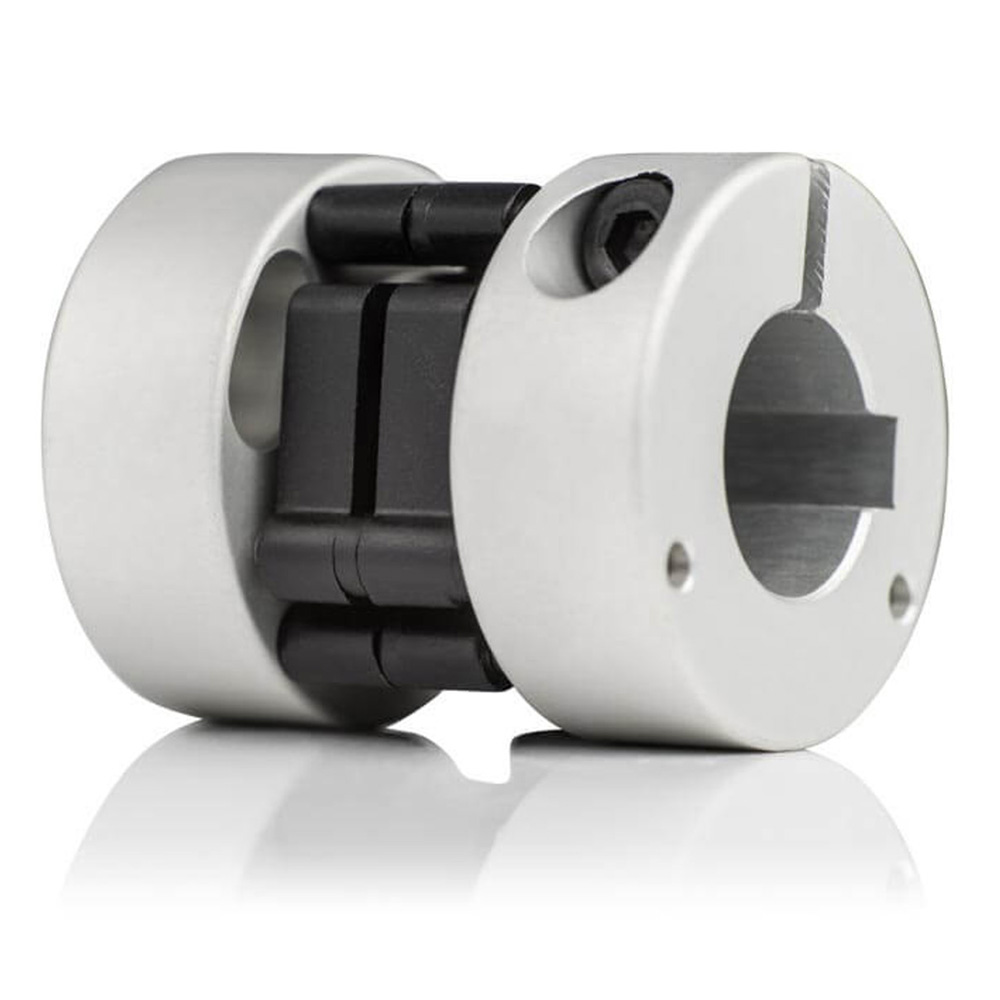

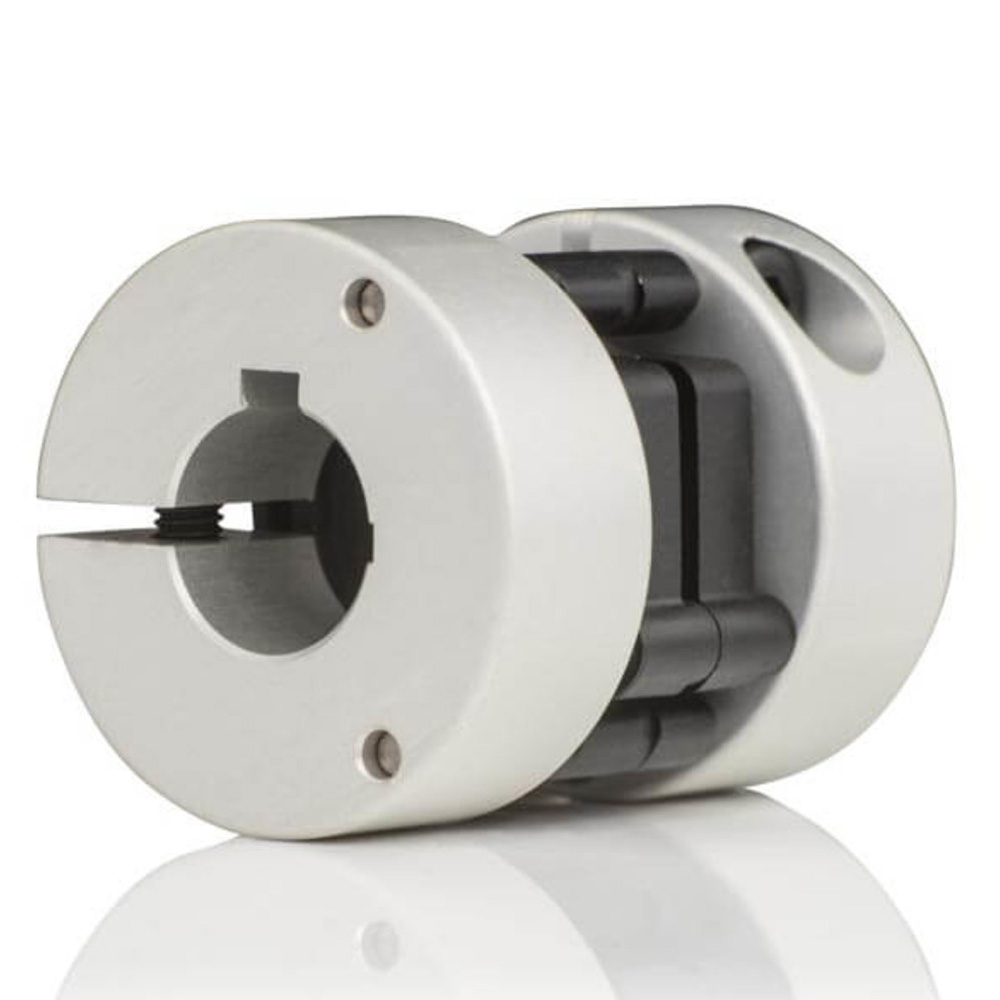

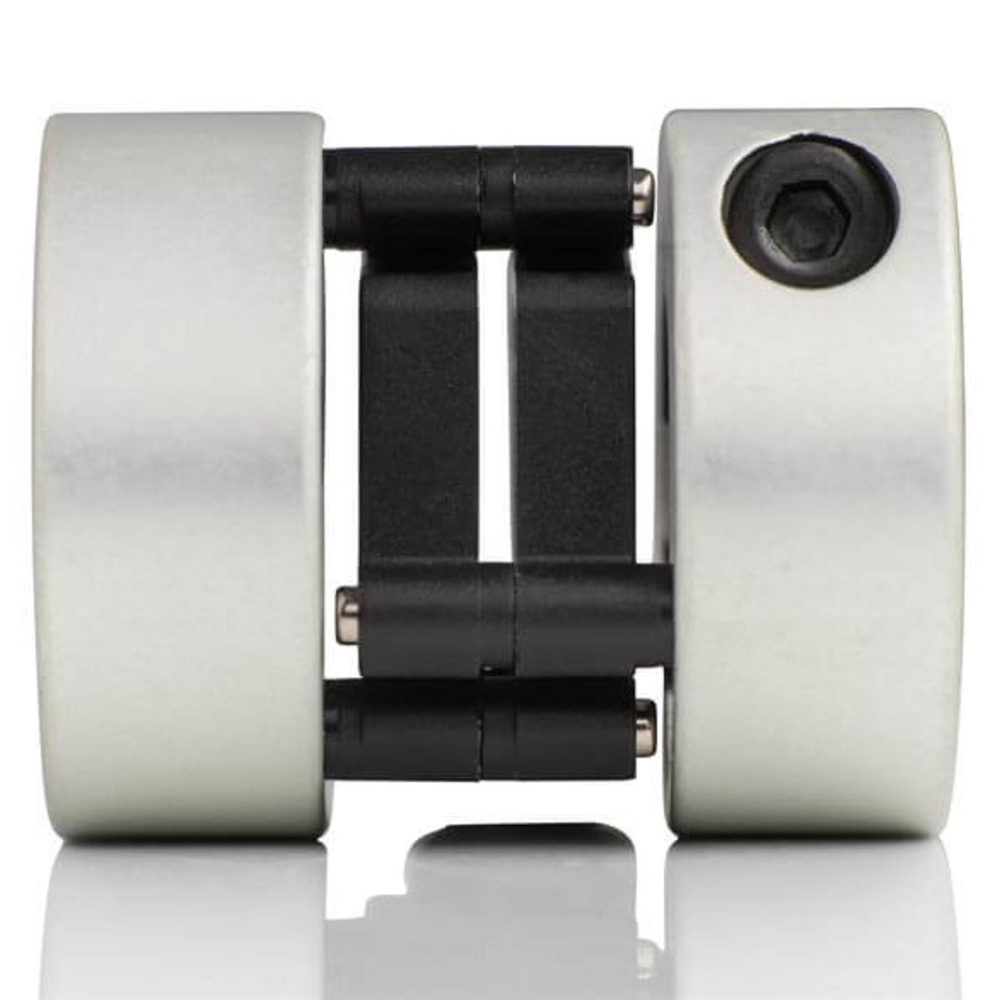

For encoder attachments with increased offset (parallel/axial)
Play-free, torsion resistant, failsafe and isolated
Variety of attachment options
Options: Extra short, rupture-proof, variable axial travel
| Technical Data | |
| Attribute | Value |
| Product usage |
- Compensate axial misalignment - Compensate parallel misalignment - Isolate against existing bearing/shaft currents - Very confined installation situations - Shafts displaying considerable axial movement (up to 10 mm) |
| Coupling specification | Aluminium coupling with plastic (electrically isolated) |
| Bore drive side | Max. Ø 40 mm with keyway or clamp (larger diameter possible by means of adapter shaft) |
| Bore encoder side | Max. Ø 40 mm with keyway or clamp (larger diameter possible by means of adapter shaft) |
| Outer diameter | Ø 25 - Ø 75 mm |
| Total length | 20.5 - 57 mm |
| Mounting accuracy | Radial misalignment: up to ±2 mm / axial misalignment: up to ±1.5 mm / angular misalignment: up to 1.5° |
| Maximum rotation | 25000 rpm |
| Temperature range | -30 °C to +80 °C |
| Shock resistance | 10 g (briefly 100 g) |
| Vibration resistance | 3 g (briefly 20 g) |
| Insulated against currents | Yes |
| Mechanical options | Attachment to larger shaft diameters possible with adapter shaft |
| Special features and certificates | |
| The particularly flexible connections | |
| The isolated and corrosion proof CPS couplings compensate an increased parallel misalignment up to ±2 mm and an increased axial misalignment up to ±1.5 mm as well as extending the service life of encoders in the process. The CPS couplings are optionally available with attachment options without lateral access for large bore diameters up to 40 mm as well as for shafts without a feather key (clamping). | |
