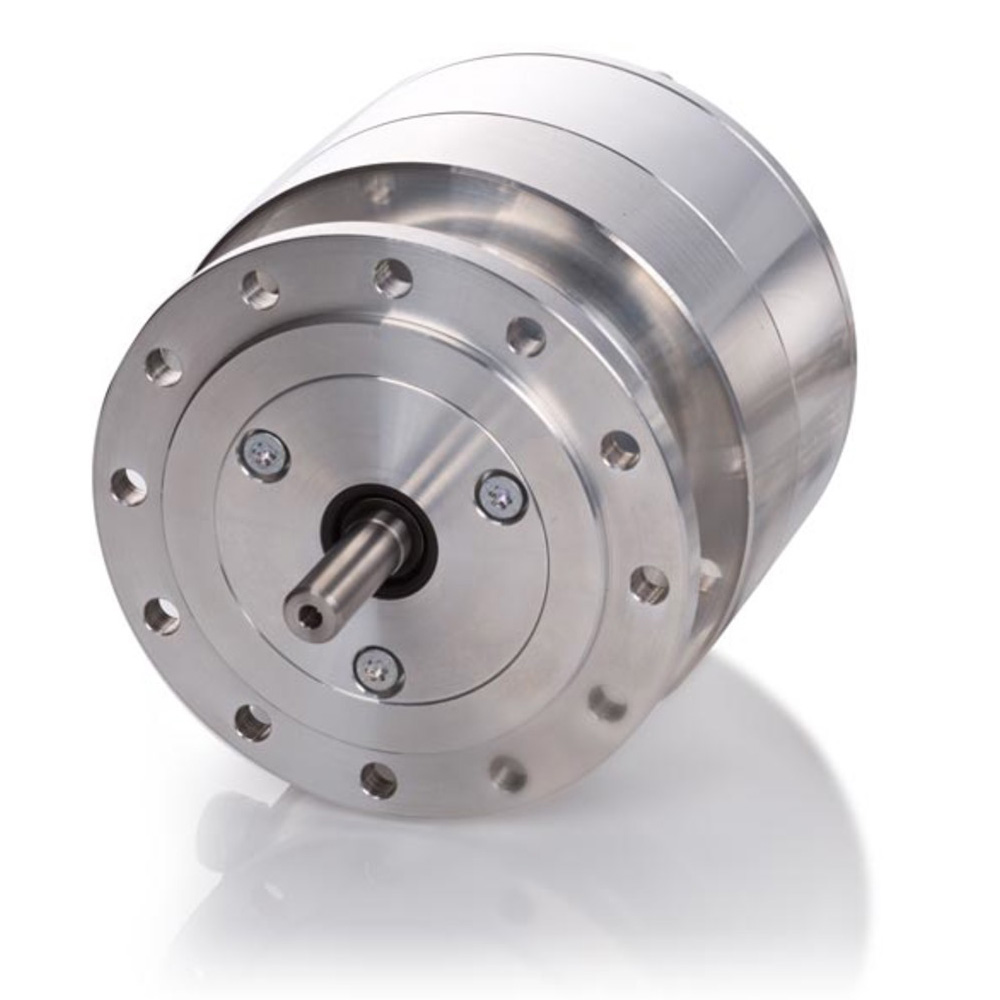

Monitor overspeed and standstill
Hollow shafts (isolated ball bearings) up to Ø 17 mm, solid shaft Ø 11 mm (flange mounting)
Nonwearing semi-conductor switch (NO contact): one switching output set ex works
Switching capacity up to 30 VDC and 0.5 A
| Technical Data | |
| Attribute | Value |
| Supply voltage | 12-30 VDC |
| Number of switches | 1 |
| Switching voltage | 0-30 VDC |
| Switching speed range |
- 1-6300 rpm with solid shaft - 1-5400 rpm with hollow shaft |
| Switching function |
- Speed monitoring: Opens when switching speed exceeded - Standstill monitoring: Opens when angle of rotation is altered - Switching points set ex-works |
| Maximum rotation |
- Up to 7000 rpm with solid shaft - Up to 6000 rpm with hollow shaft |

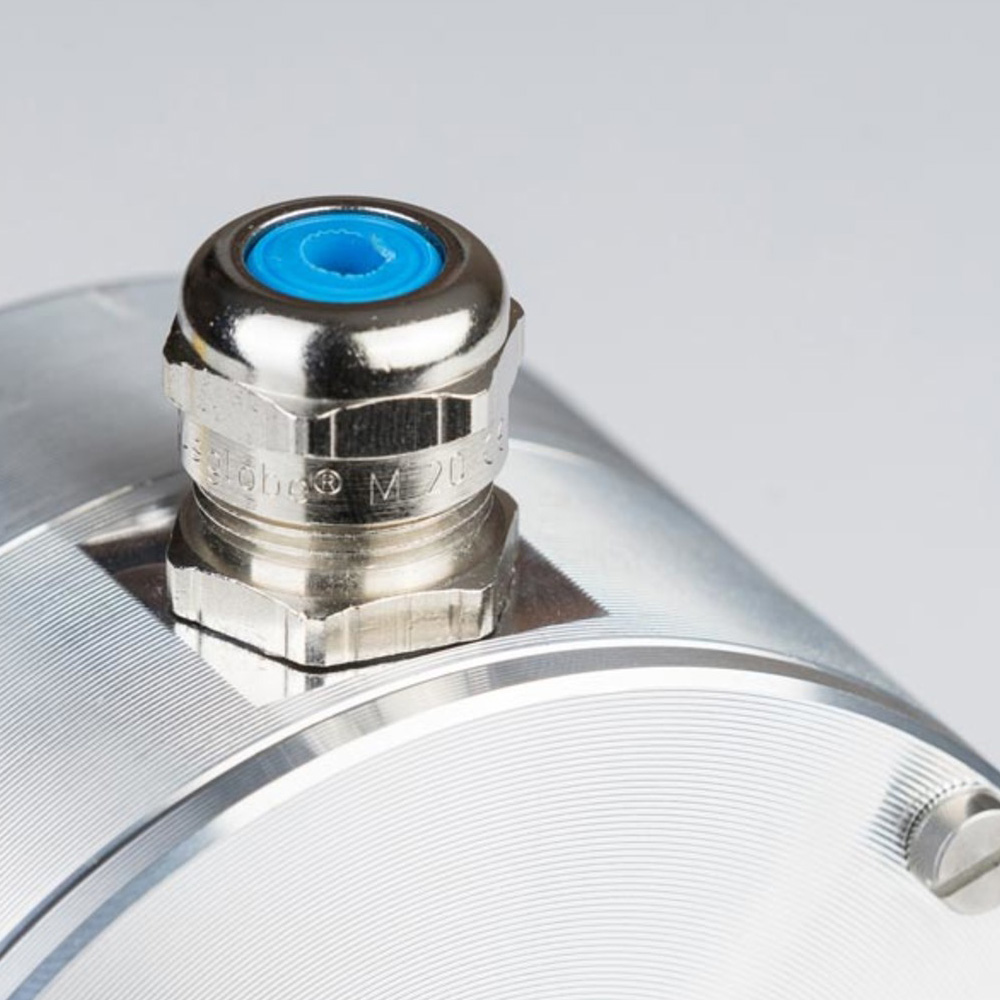

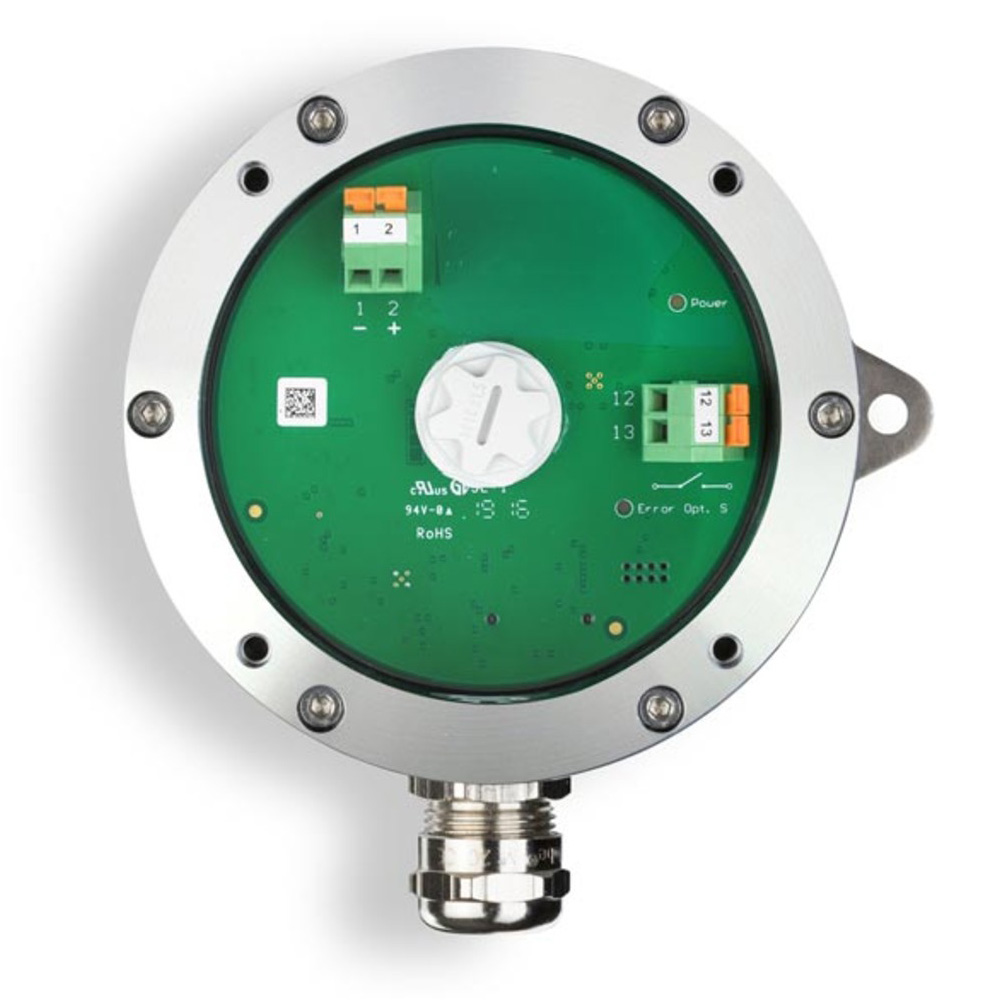

| Electrical connection |
- Terminal strip in a terminal box - Fixed cable (0.6-3 m) |
| Construction type / Ø shafts |
- Solid shaft (B5) / Ø 11 mm with feather key - Hollow shaft (isolated bearings) / Ø 12 mm, Ø 16 mm with clamp, Ø 17 mm with taper 1:10 |
| Device temperature range | -25 °C to + 85 °C |
| Degree of protection | IP66 |
| Weight | Approx. 2 kg |
| Device options | Incremental output: See FG 2 with option S |
| Mechanical options | Hollow shaft devices: Torque bracket (on request) |
| Special features and certificates |
- UL/CSA - EGSHJ 2: Increased dielectric strength up to 3 kV (direct mounting to drive-controlled motors) |
| The preset speed monitors | |
| The electronic speed switches monitor the factory-set speed with high switching accuracy, including low operating speeds. Alternatively, they can be used as standstill monitors. As a consequence, the speed switches play their part in system and personnel protection. They are installed on motors, for example in cranes, in mining operations as well as in rolling mills and more. | |
