Monitor overspeeds and underspeeds (programmable)
Hollow shafts up to Ø 25 mm, solid shafts up to Ø 14 mm (flange or foot mounting)
Relay contact / switching output: Up to 4 programmable / up to 2 diagnostics
Options: Isolated ball bearings (hollow shaft), additional incremental output, further encoders attachable
| Technical Data | |
| Attribute | Value |
| Supply voltage | 12-30 VDC or 100-240 VAC |
| Number of switches | 2 or 4 |
| Switching voltage | 2-30 VDC or 30-230 VAC/DC |
| Switching speed range |
- 0.63-6000 rpm with solid shaft - 0.63-4000 rpm with hollow shaft |
| Switching function |
- Speed monitoring: Opens when switching speed exceeded or fallen below - Additional functions: Direction of rotation switch, switching hysteresis (min. 10%), switching delay (0-300 ms), … - Programming via the selected switching speed range (interface: Mini USB) |
| Maximum rotation |
- Up to 6000 rpm with solid shaft - Up to 4000 rpm with hollow shaft |
| Electrical connection |
- Terminal strip in a terminal box - Fixed cable (0.6-3 m) - 12-pole round connector Burndy - 15-pole industrial connector |
| Construction type / Ø shafts |
- Solid shaft (B5, B35): Ø 11 mm, Ø 14 mm with feather key - Hollow shaft / Ø 16 mm, Ø 19 mm, Ø 20 mm with keyway; Ø 16 mm, Ø 25 mm with clamp |
| Device temperature range |
- 0 °C to +70 °C - -25 °C to +85 °C - -40 °C to +85 °C (on request) |
| Degree of protection | Up to IP66 / IP67 |
| Weight | Approx. 3.5 kg |
| Device options | Incremental output: See FG 40 with option S |
| Mechanical options |
- Second shaft end with B14 flange for attachments (solid shaft construction type only) - Additional foot (solid shaft construction type only) - Isolated ball bearing (hollow shaft construction type only) - MI: Saliferous environment - MS: Wet areas in rolling mills - Hollow shaft devices: Torque bracket (on request) |
| Special features and certificates | UL/CSA (for all devices with connection technology „Terminal strip in a terminal box“ and up to 30 V supply voltage / switching voltage) |
| The programmable speed monitors | |

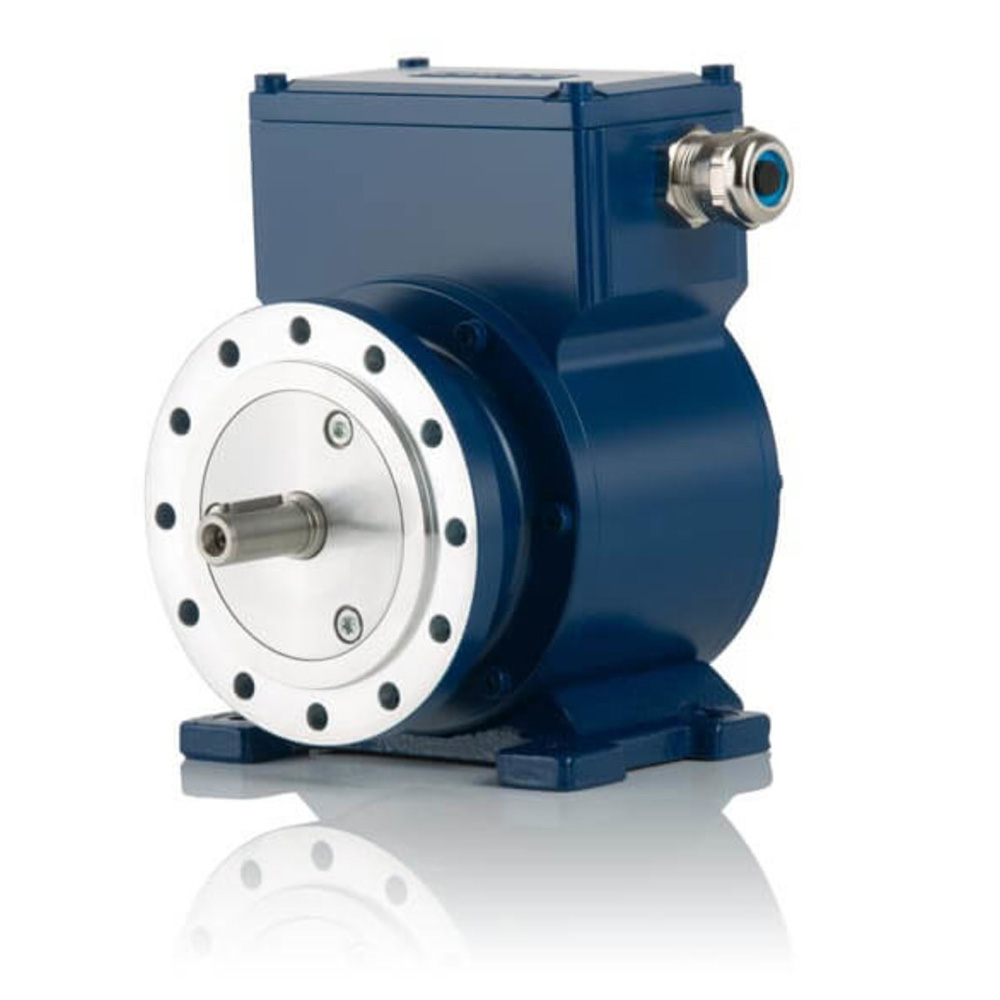

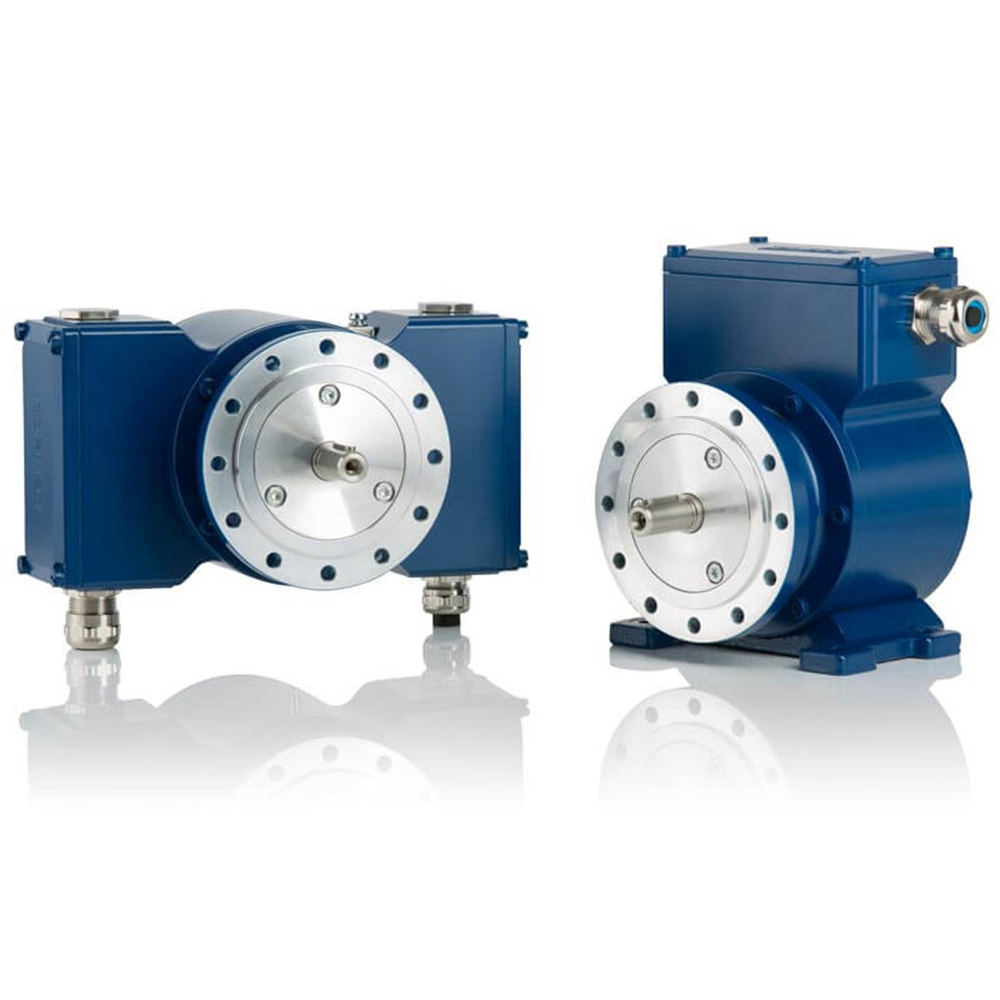

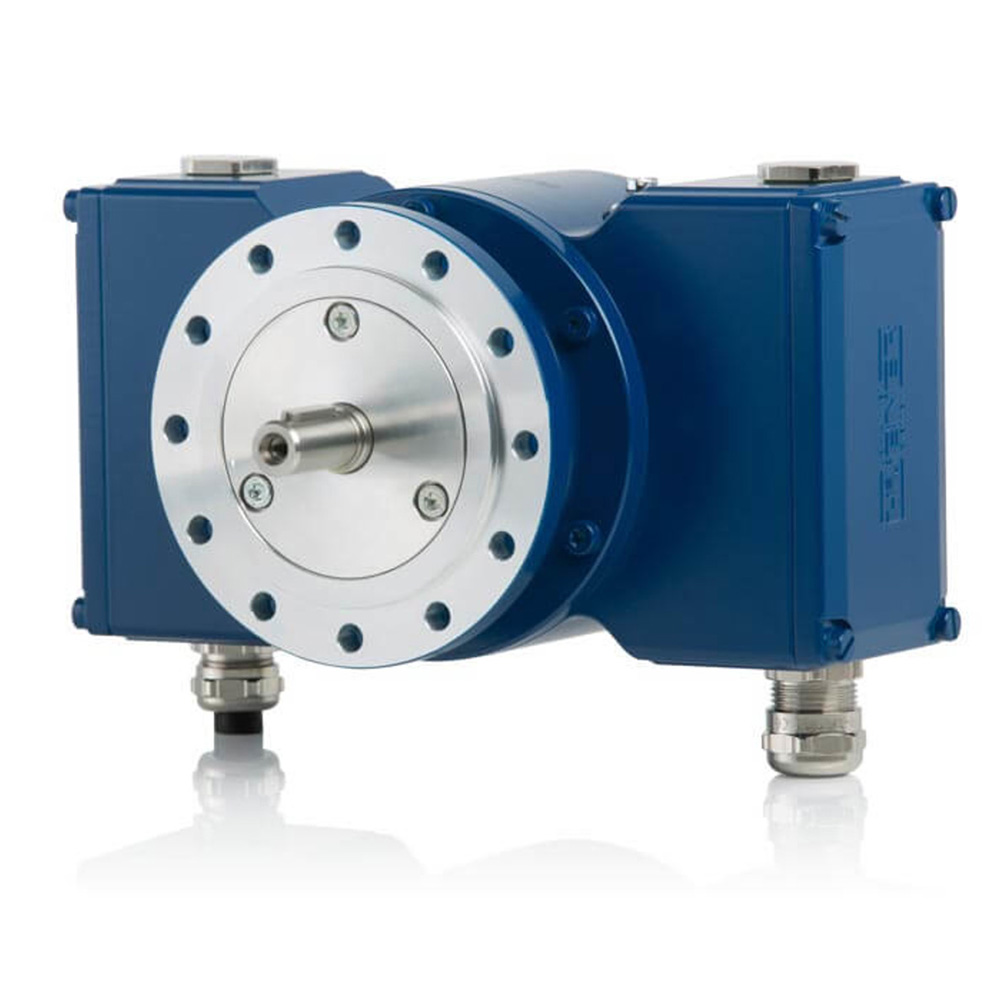

| The electronic overspeed switches monitor as many as four programmable speed ranges (overspeeds, underspeeds and standstill) with a high level of switching accuracy, including at low operating speeds. If a programmed speed is exceeded or is too low, the respective switching output switches. As a consequence, the speed switches play their part in system and personnel protection. They are installed on motors on cranes, in mining operations as well as in rolling mills and more. When devices are swapped it is possible to transfer the parameters previously stored on the first device to the new device. | |
