Safety integrated speed monitoring (programmable)

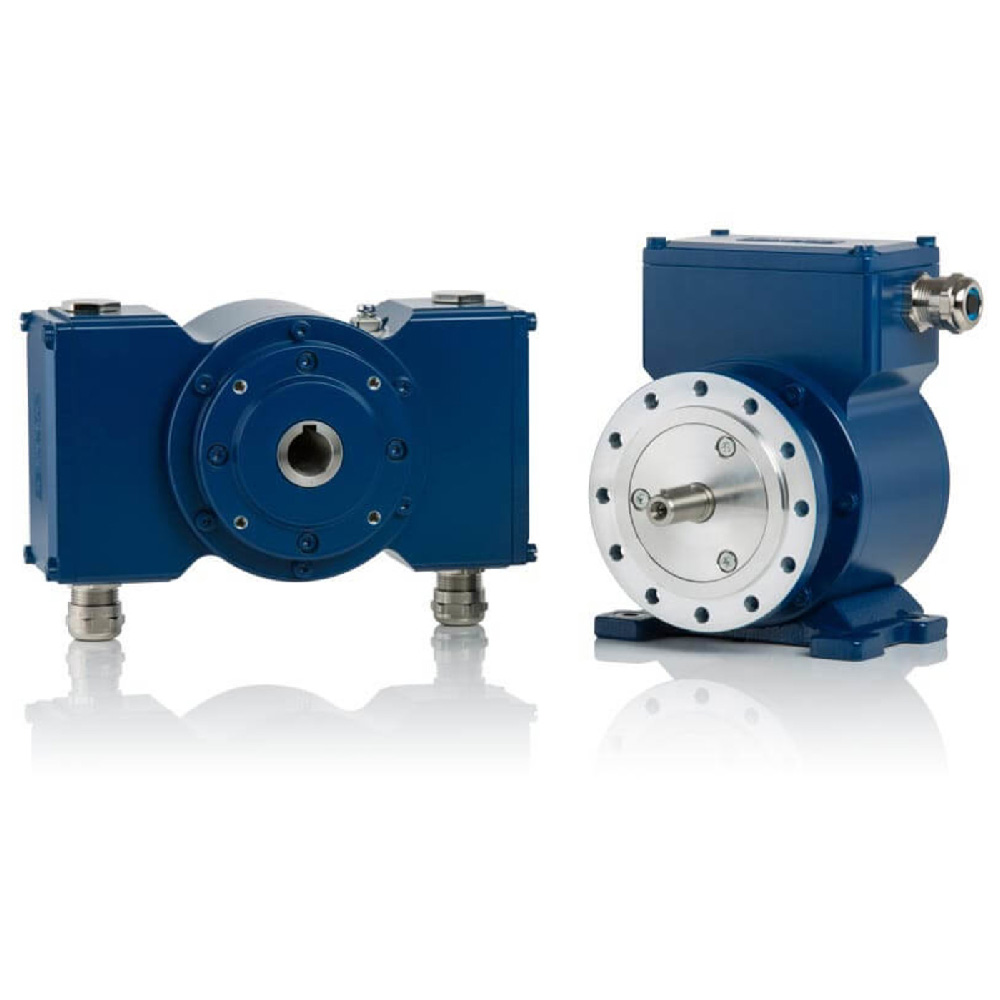

Hollow shafts up to Ø 20 mm, solid shafts up to Ø 14 mm (flange or foot mounting)
Nonwearing semi-conductor switch (NO contact): Up to 4 programmable / up to 2 diagnostics
Options: Isolated ball bearings (hollow shaft), additional incremental output, further encoders attachable
| Technical Data | |
| Attribute | Value |
| Supply voltage | 12-30 VDC or 100-240 VAC |
| Number of switches | 2 or 4 |
| Switching voltage | 0-30 VDC or 30-230 VAC/DC |
| Switching speed range |
- 0.5-5400 rpm with solid shaft - 0.5-3600 rpm with hollow shaft |
| Switching function |
- Speed monitoring: Opens when switching speed exceeded or fallen below - Additional functions: Direction of rotation switch, switching hysteresis (min. 10%), switching delay (0-300 ms), … - Programming via the selected switching speed range (interface: Mini USB) |
| Maximum rotation |
- Up to 6000 rpm with solid shaft - Up to 4000 rpm with hollow shaft |
| Electrical connection |
- Terminal strip in a terminal box - Fixed cable |
| Construction type / Ø shafts |

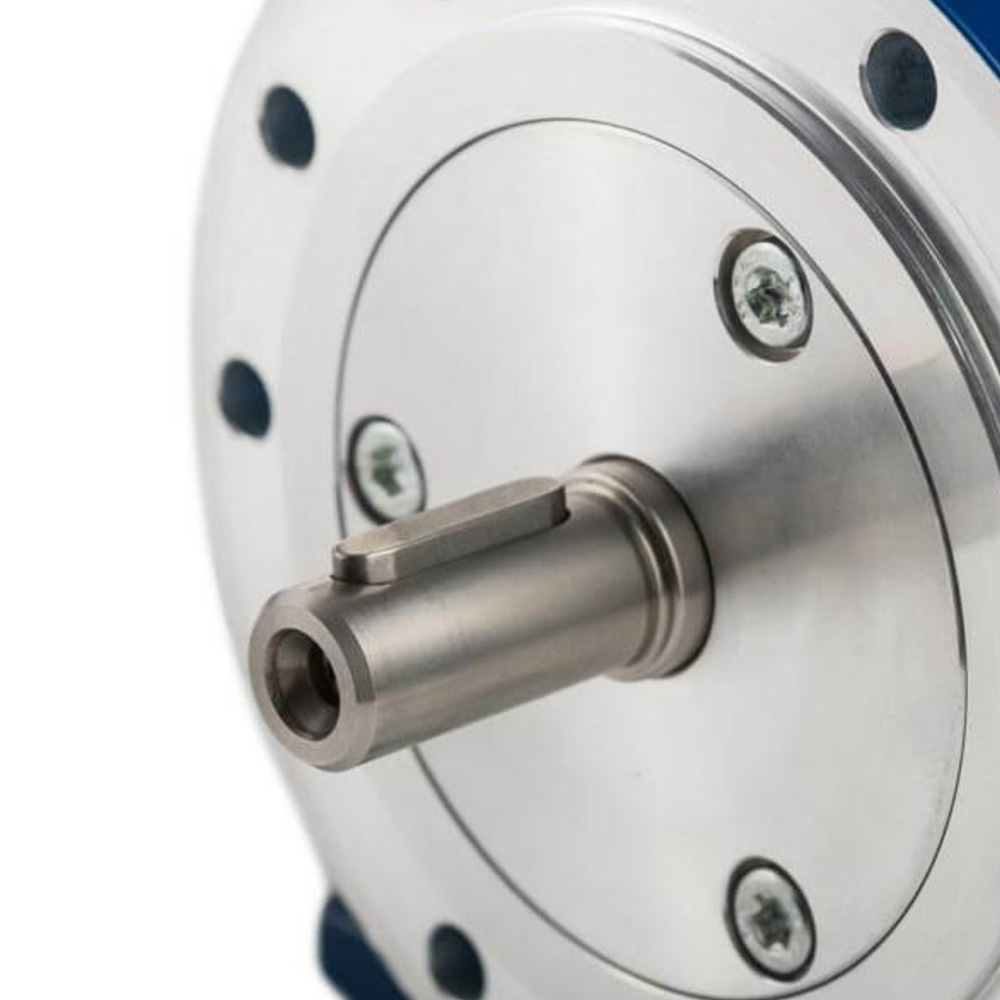

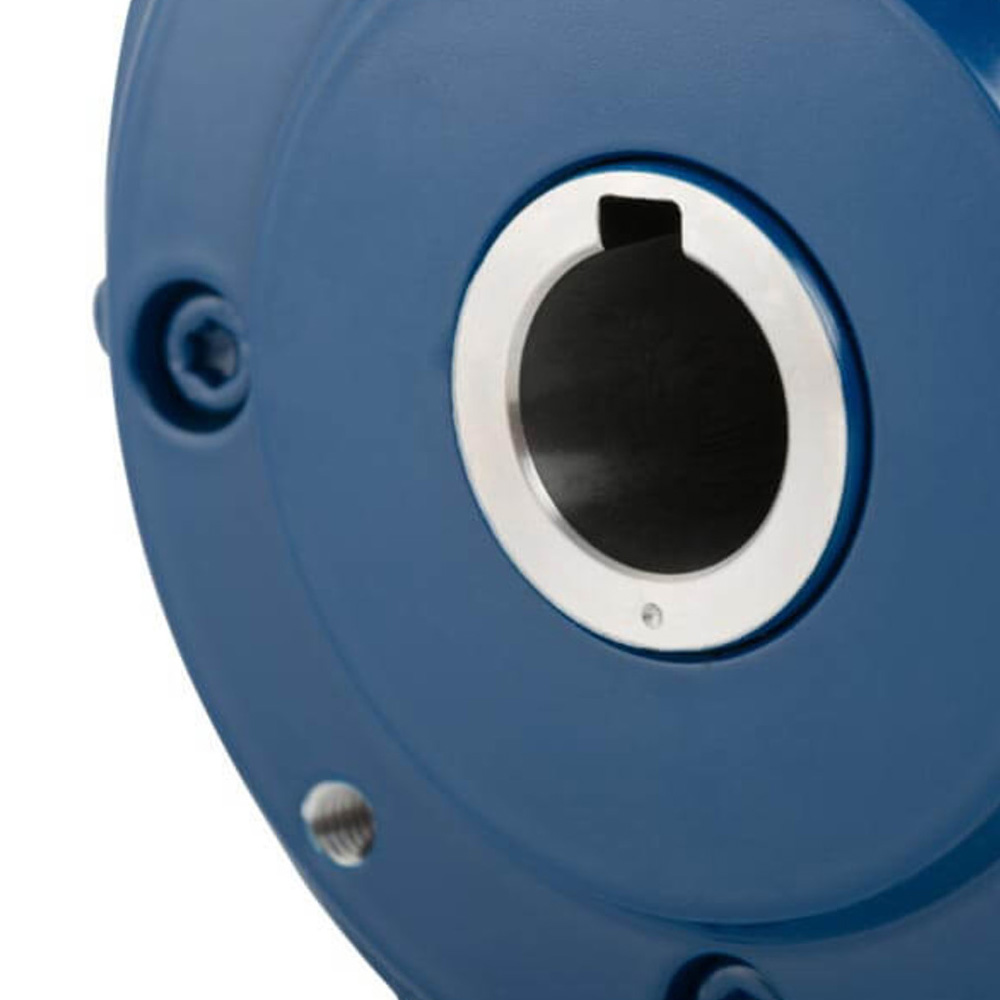

- Solid shaft (B5, B35) / Ø 11 mm, Ø 14 mm with feather key - Hollow shaft / Ø 16 mm, Ø 19 mm, Ø 20 mm with keyway |
| Device temperature range | -25 °C to +85 °C |
| Degree of protection | Up to IP66 / IP67 |
| Weight | Approx. 3.5 kg |

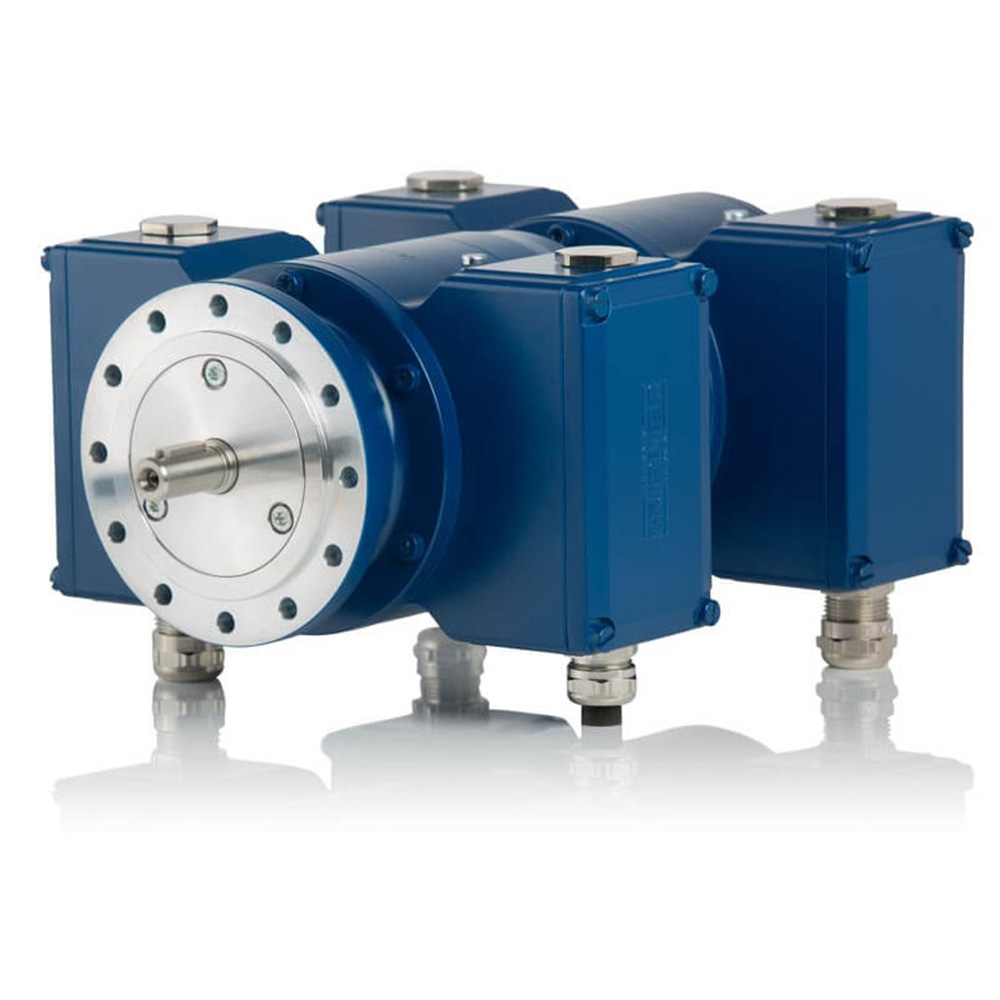

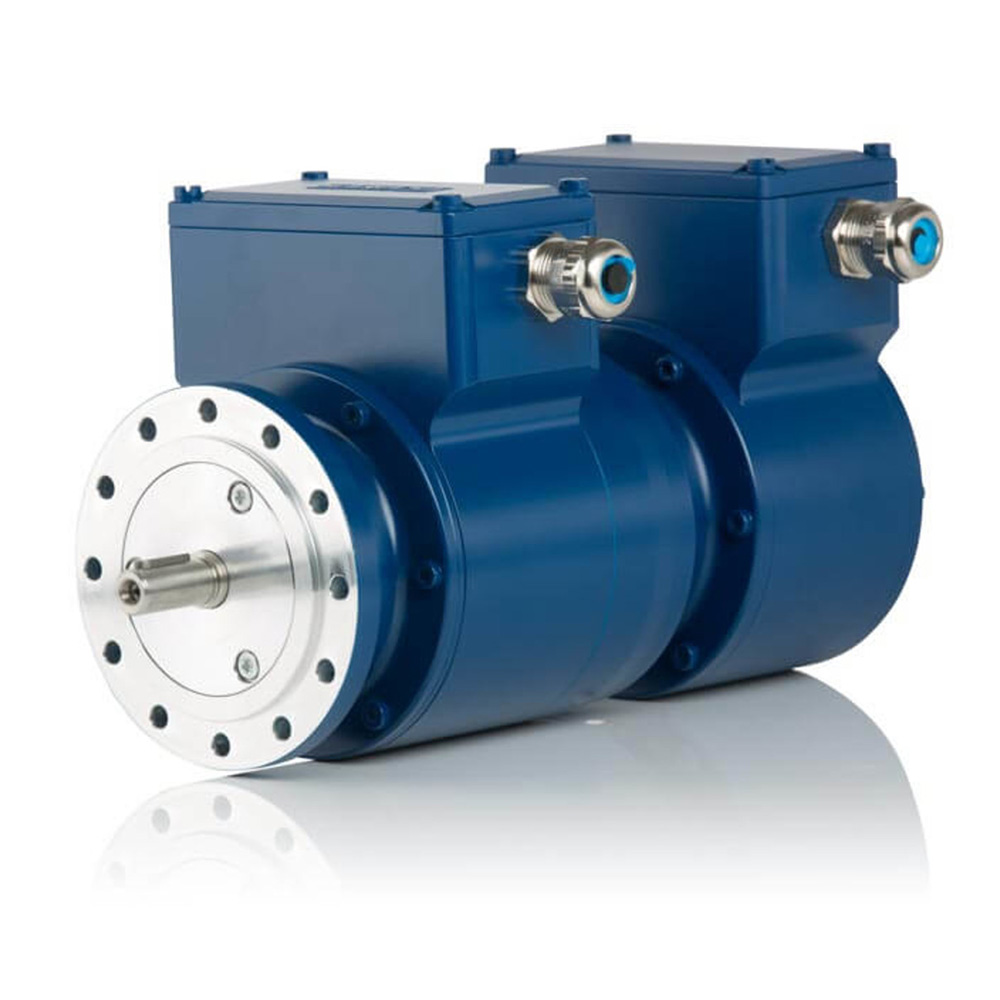

| Device options | With additional integrated FG 40 |
| Mechanical options |
- Second shaft end with B14 flange for attachments (solid shaft construction type only) - Additional foot (solid shaft construction type only) - Isolated ball bearing (hollow shaft construction type only) - MI: Saliferous environment - Hollow shaft devices: Torque bracket (on request) |
| Special features and certificates |
- SIL 2 (IEC 61508) / PL d (DIN EN ISO 13849) - UL/CSA (for all devices with connection technology „Terminal strip in a terminal box“ and up to 30 V supply voltage / switching voltage) |
| The programmable speed monitors with integrated safety | |
| The electronic overspeed switches monitor as many as four programmable speed ranges (overspeeds, underspeeds and standstill) with a high level of switching accuracy, including at low operating speeds. They are certified for safety applications up to SIL 2 / PL d. If a programmed speed is exceeded or is too low, the respective switching output switches. As a consequence, the speed switches play their part in system and personnel protection. They are installed on motors on cranes, in mining operations as well as in rolling mills and more. When devices are swapped it is possible to transfer the parameters previously stored on the first device to the new device. | |
