ATEX and IECEx certified (gas and dust) to EN/IEC 60079
Explosion-proof housing, salt-water proof aluminium, IP66
Up to 250000 pulses HTL/TTL, up to 2500 sine periods
Option: Second signal output
| Technical Data | |
| Attribute | Value |
| Supply voltage | 12-30 VDC |
| Signal amplitude |
- HTL or TTL - Sin/Cos |
| Pulse rate |
- Standard pulse rates for HTL, TTL and Sin/Cos: 500, 600, 1000, 1024, 1200, 1300, 2500 - Interpolation factors (for HTL/TTL pulses only): 1, 2, 4, 8, 10, 20, 40, 50, 100 |
| Output signals | 0°, 90°, N, status and inverted signals |
| Maximum frequency | Solid shaft: up to 6000 rpm / max. 200 kHz |
| Electrical connection | Terminal strip in a terminal box |

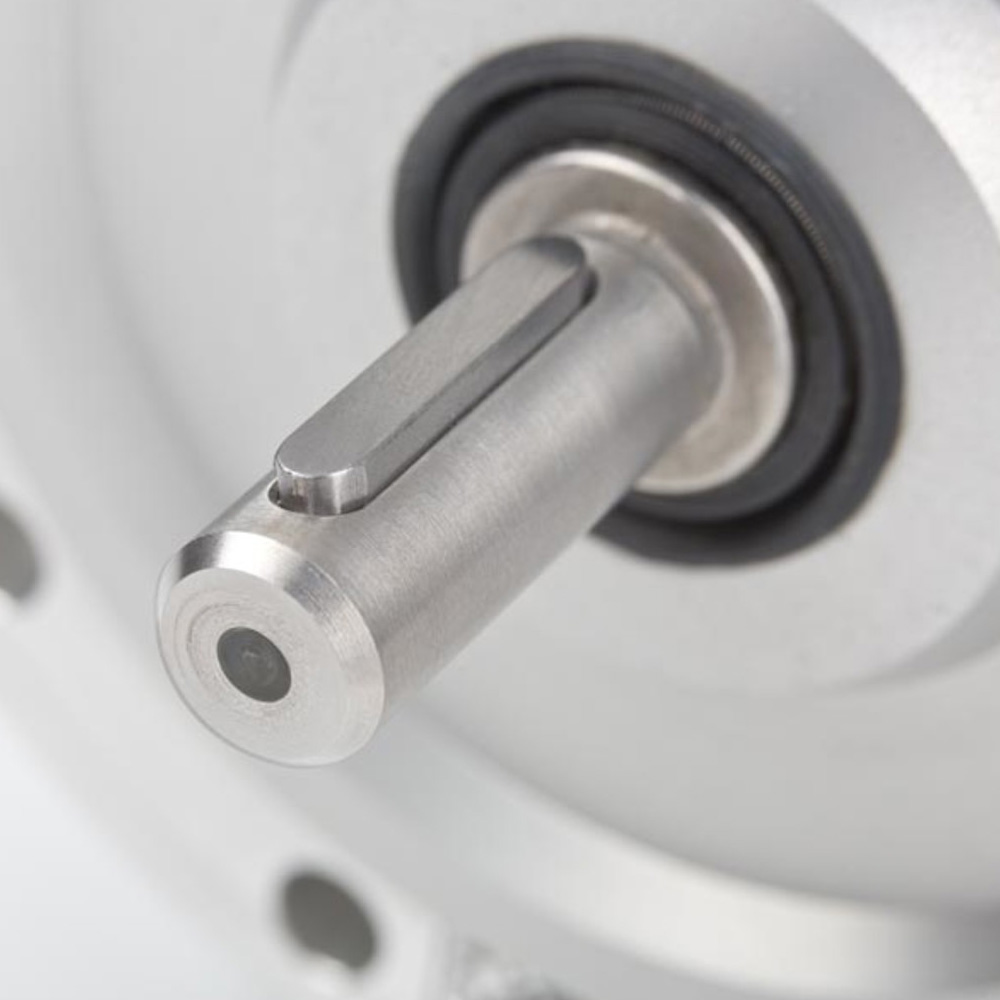

| Construction type / Ø shafts | Solid shaft (B5) / Ø 11 mm, Ø 14 mm with feather key |
| Device temperature range | -40 °C to +60 °C (T6 up to +55 °C) |
| Degree of protection | IP66 |
| <Weight/td> | Approx. 3.9 kg |
| Device options |
- AK: System with terminal strip connections - AKK: Two systems with terminal strip connections - AH: HTL signals 0°, 90°, reference pulse, status; all signals each with respective inverted signals - AT: TTL signals 0°, 90°, reference pulse, status; all signals each with respective inverted signals - SH: 1 Vpp signals sine/cosine, reference pulse; status as HTL signal; all signals each with respective inverted signals - ST: 1 Vpp signals sine/cosine, reference pulse; status as TTL signal; all signals each with respective inverted signals |

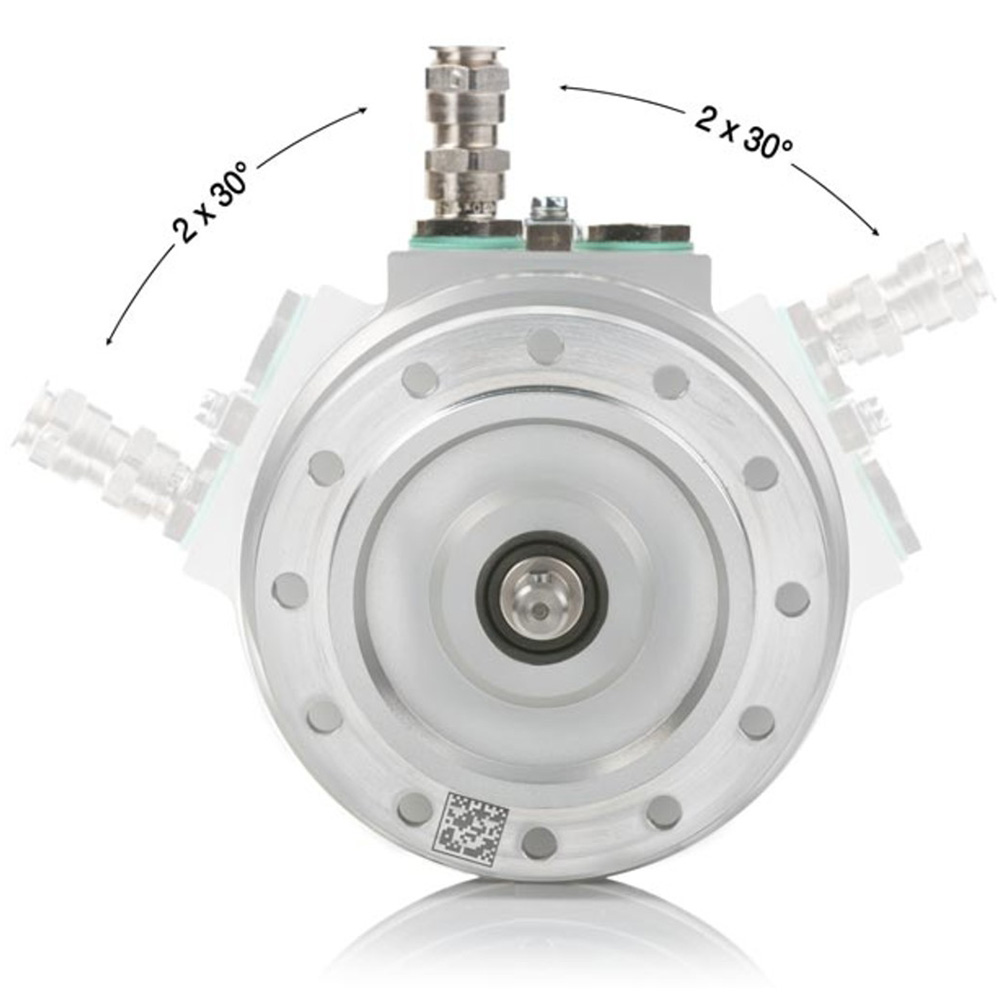

| Mechanical options |

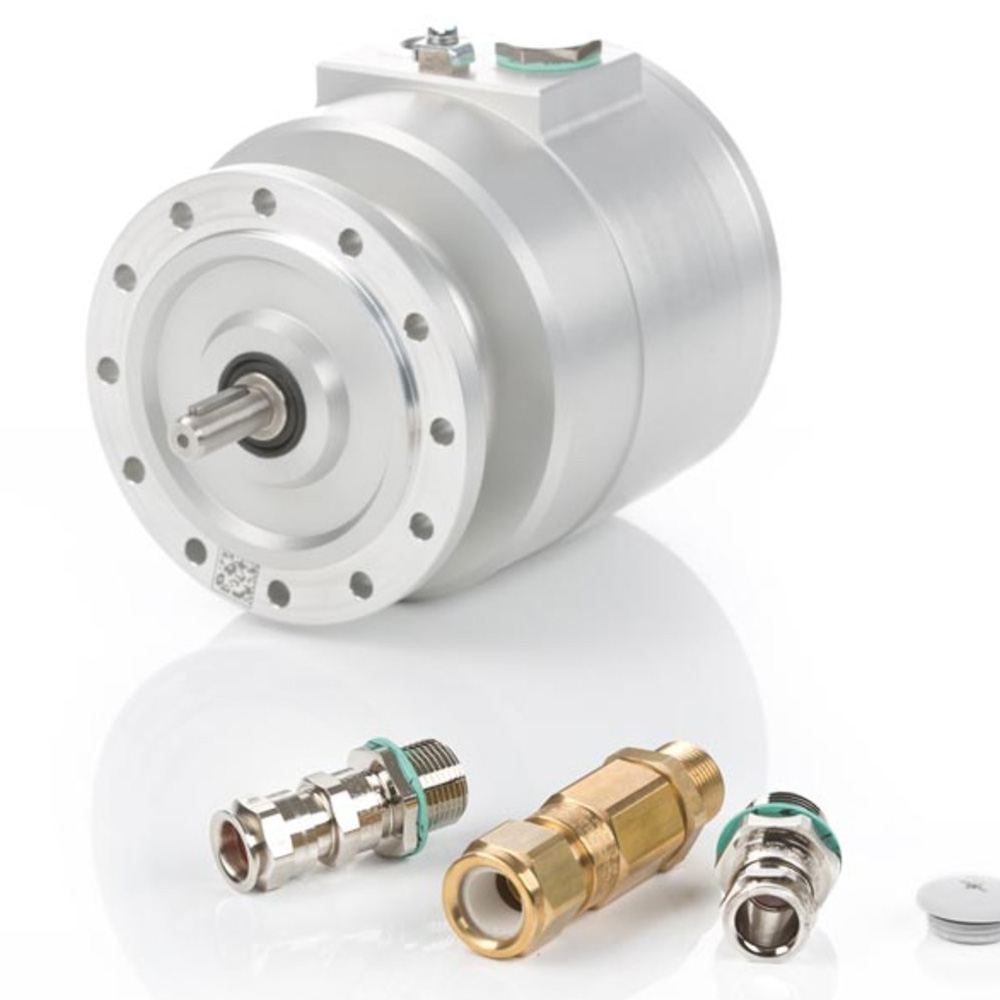

Accessories: Cable glands and blanking plugs (not in scope of supply) It is only allowed to use cable glands and blanking plugs that are approved and certified for the respective application in accordance with the standards EN/IEC 60079-0 and EN/IEC 60079-1 (gas) or EN/IEC 60079-31 (dust). |
| Special features and certificates |
ATEX and IECEx certified to EN/IEC 60079: - Gas: II 2G Ex db IIC T6-T5 Gb - Dust: II 2D Ex tb IIIC T85°C Db IP6x |
| The all-rounders with Ex protection | |

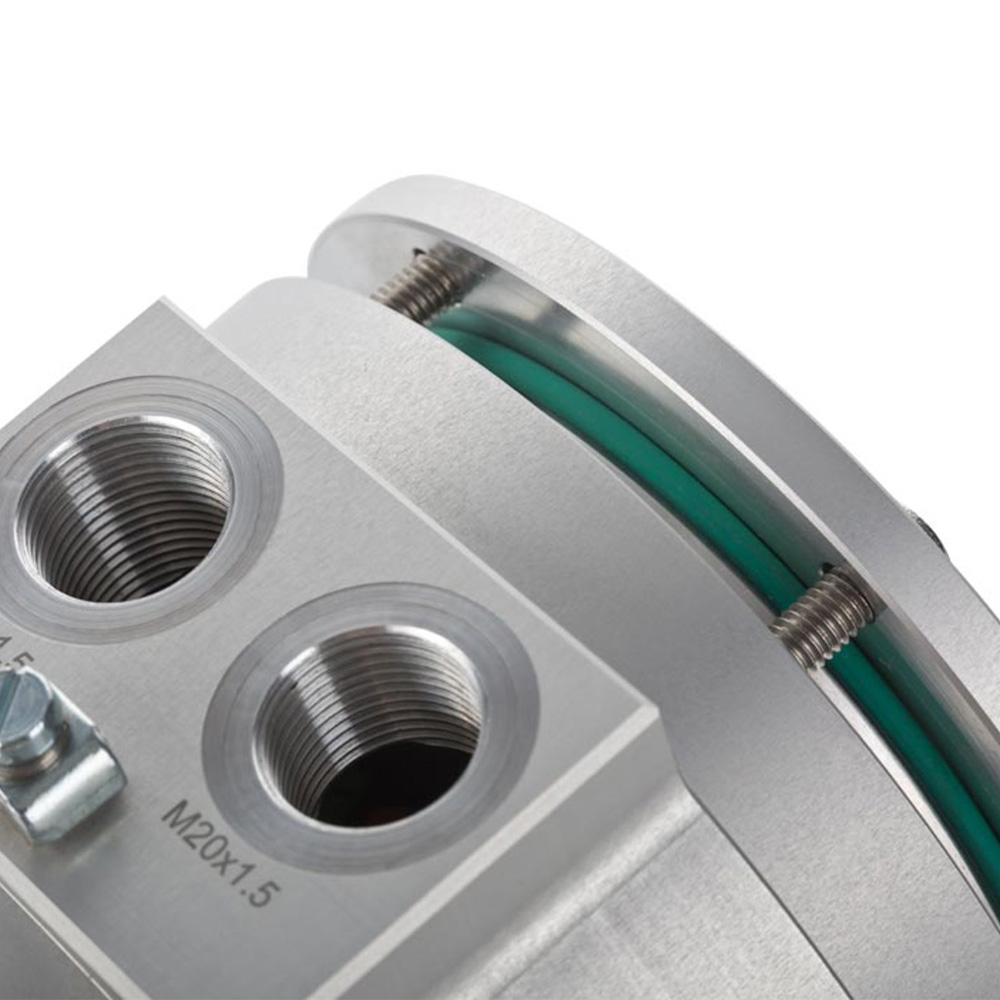

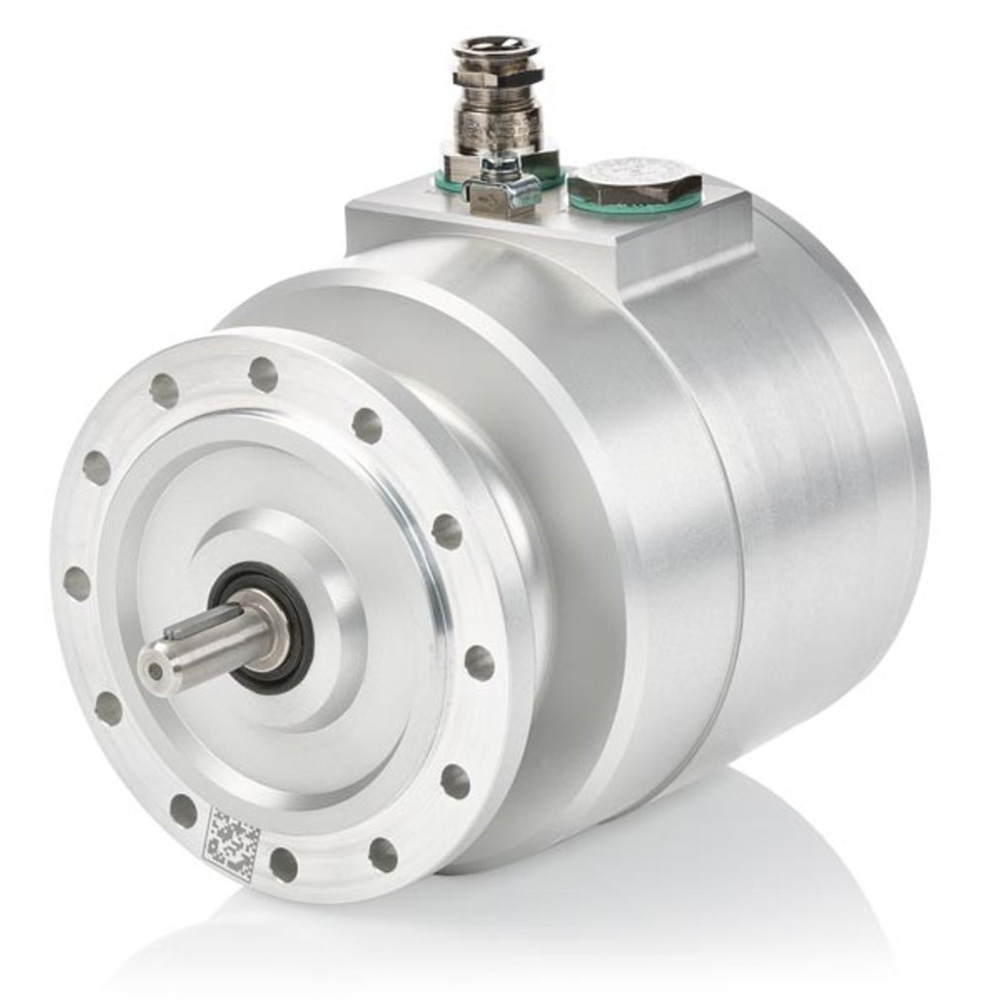

| The incremental, solid shaft encoders FG 40 Ex can be deployed in a wide variety of applications to measure the speed at standard, main and secondary drives in potentially explosive atmospheres, for example in the oil and gas industry as well as in petrochemical applications. Certified to EN 60079 (ATEX) and IEC 60079 (IECEx) the encoder is certified for applications in Zones 1 and 2 (gas) as well as Zones 21 and 22 (dust) and designed to meet degree of protection requirements IP66. Technically, they are based on the FG 40 models. The explosion-proof housings with detachable terminal box covers facilitate connecting the cables during on site installation. That in turn means it is possible to use different cable lengths to connect a device of the same type. | |
