Hollow shafts up to Ø 20 mm, solid shafts up to Ø 14 mm (flange or foot mounting)
Certified for safety applications up to SIL 3 / PL e
High signal quality, HTL, TTL, sin/cos, up to 4096 pulses
Options: safety certified solid or hollow shaft attachment
| Technical Data | |
| Attribute | Value |
| Supply voltage | 12-30 VDC |
| Signal amplitude |
- HTL or TTL - Sin/Cos |
| Pulse rate | 1024, 2048, 4096 |
| Output signals | 0°, 90° and inverted signals, Reference pulse (N) without SIL / PL, with inverted signal |
| Maximum frequency |
- Solid shaft: up to 4000 rpm / HTL and TTL: 100 kHz; Sin/Cos: 500 kHz - Hollow shaft: up to 3000 rpm / HTL and TTL: 100 kHz; Sin/Cos 500 kHz |

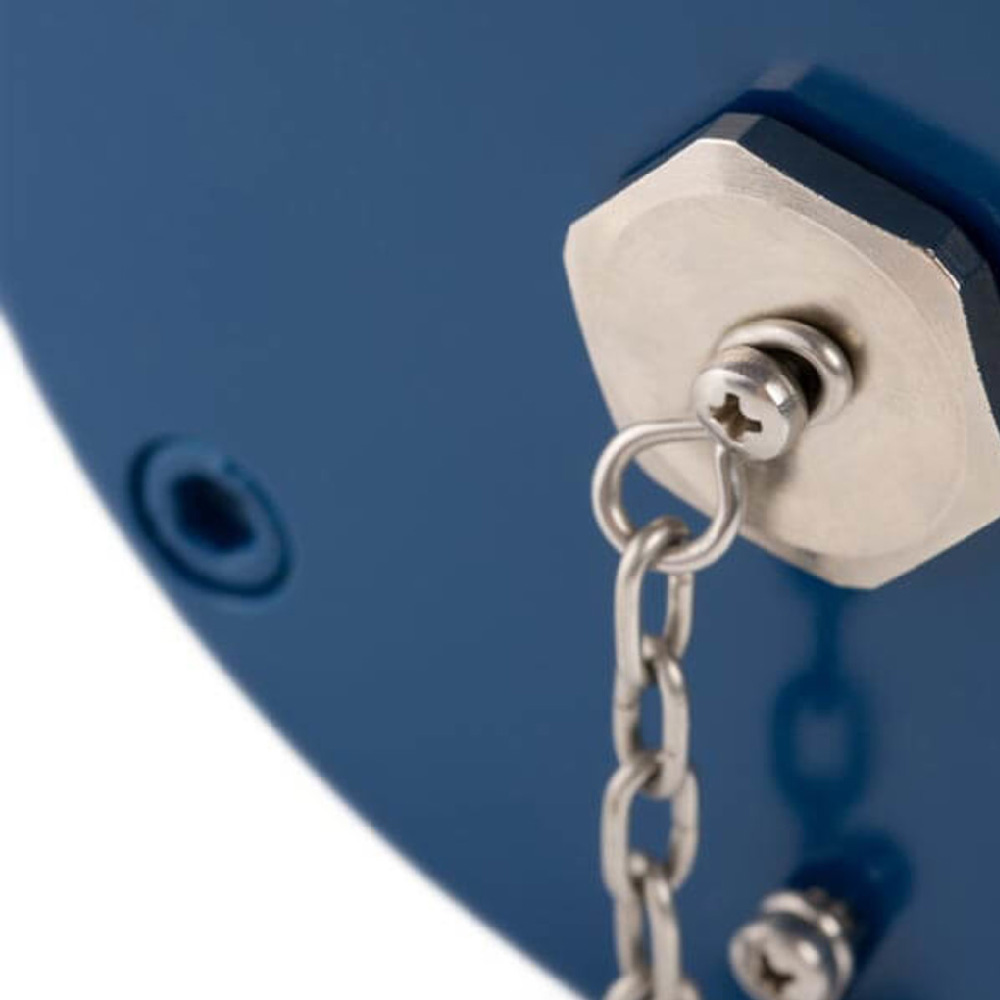

| Electrical connection |

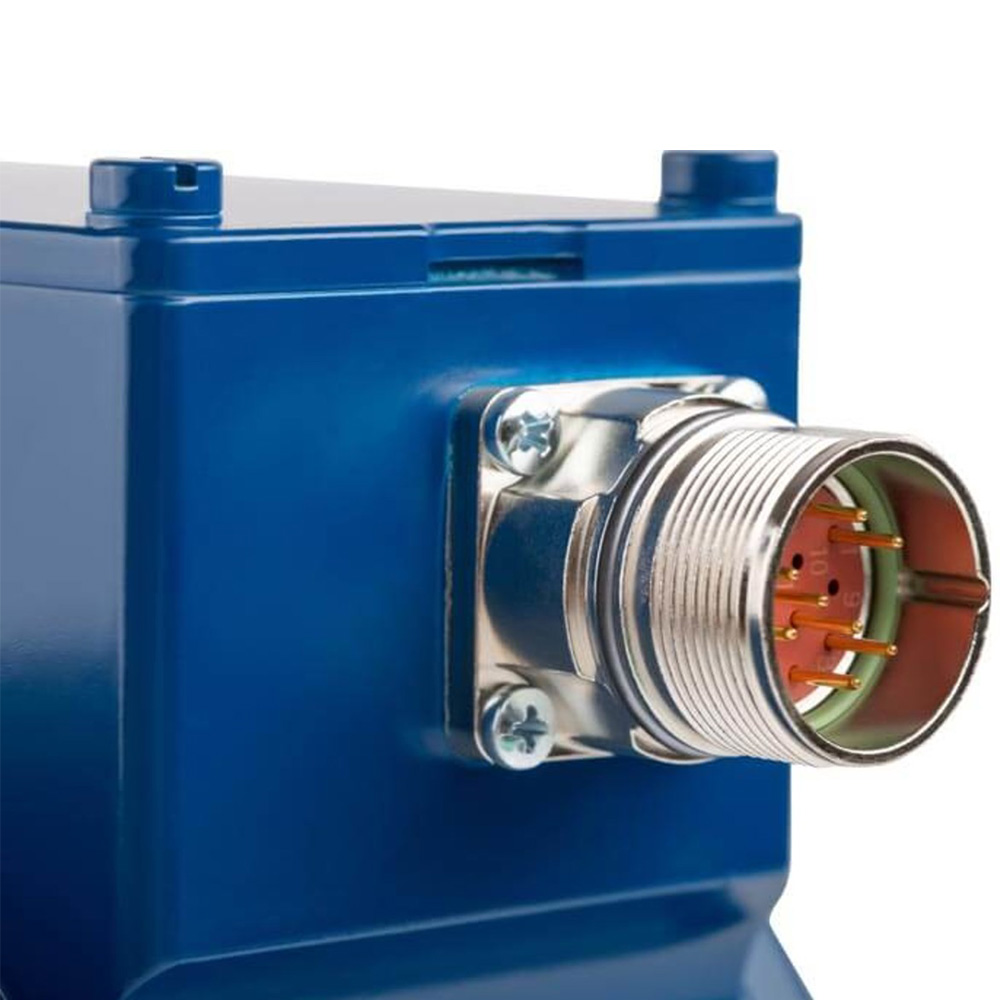

- Terminal strip in a terminal box - Fixed cable - 12-pole round connector M23 |
| Construction type / Ø shafts |

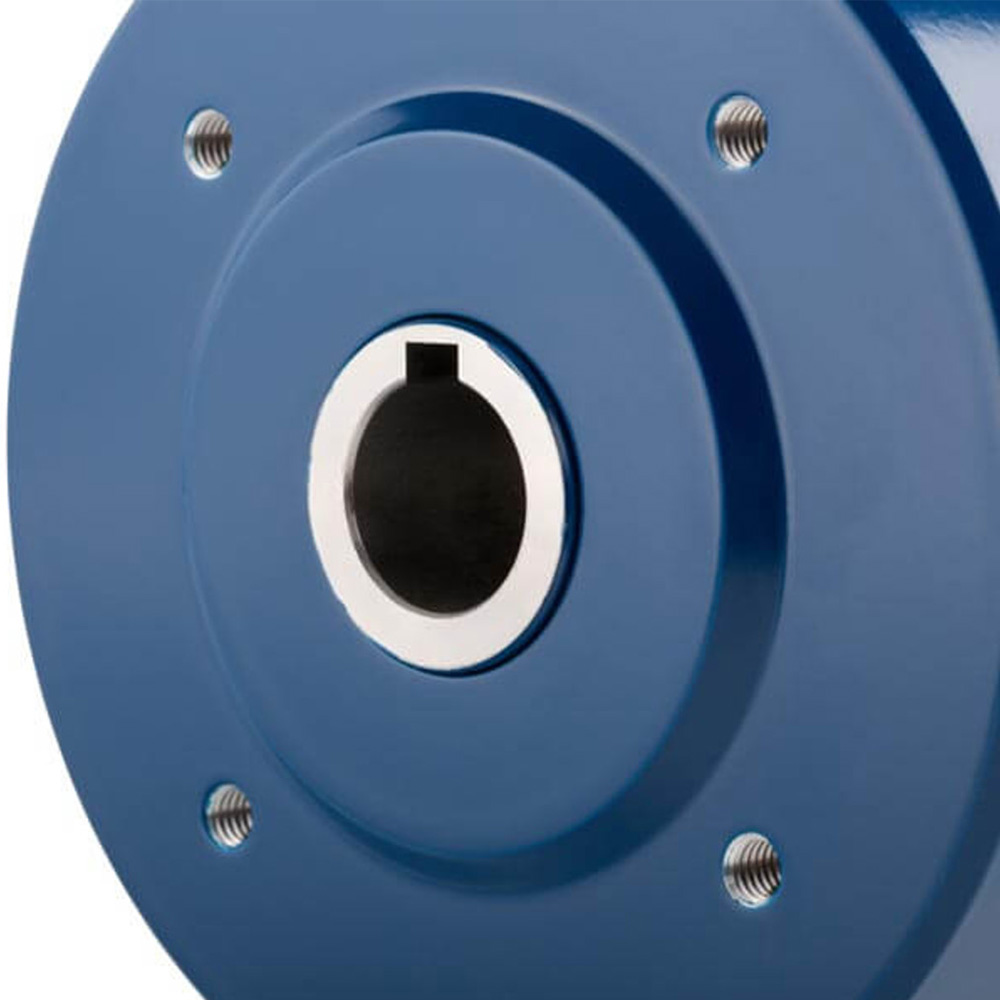

- Solid shaft (B5 / B35): Ø 11 mm or Ø 14 mm - Hollow shaft: Ø 20 mm with keyway (for shafts up to max. length: 48 mm) |
| Device temperature range | -40 °C to +85 °C |
| Degree of protection | up to IP66 / IP67 |
| Weight | Approx. 3.0 kg |
| Device options | |
| Mechanical options | - Additional foot (solid shaft, construction type B35 only) |
| Special features and certificates |
- For speed oriented safety functions SLS, SSR, SSM, SLA, SAR: SIL 3 (DIN EN 61508); PL e / category 3 (DIN EN ISO 13849) - For position oriented safety functions SDI, SS1, SS2, SOS, SLP, SLI, SCA: SIL 2 (DIN EN 61508); PL d / category 3 (DIN EN ISO 13849) - Suitable for wet areas in rolling mills - Saltwater-proof |
| Robust solutions with safety certification | |

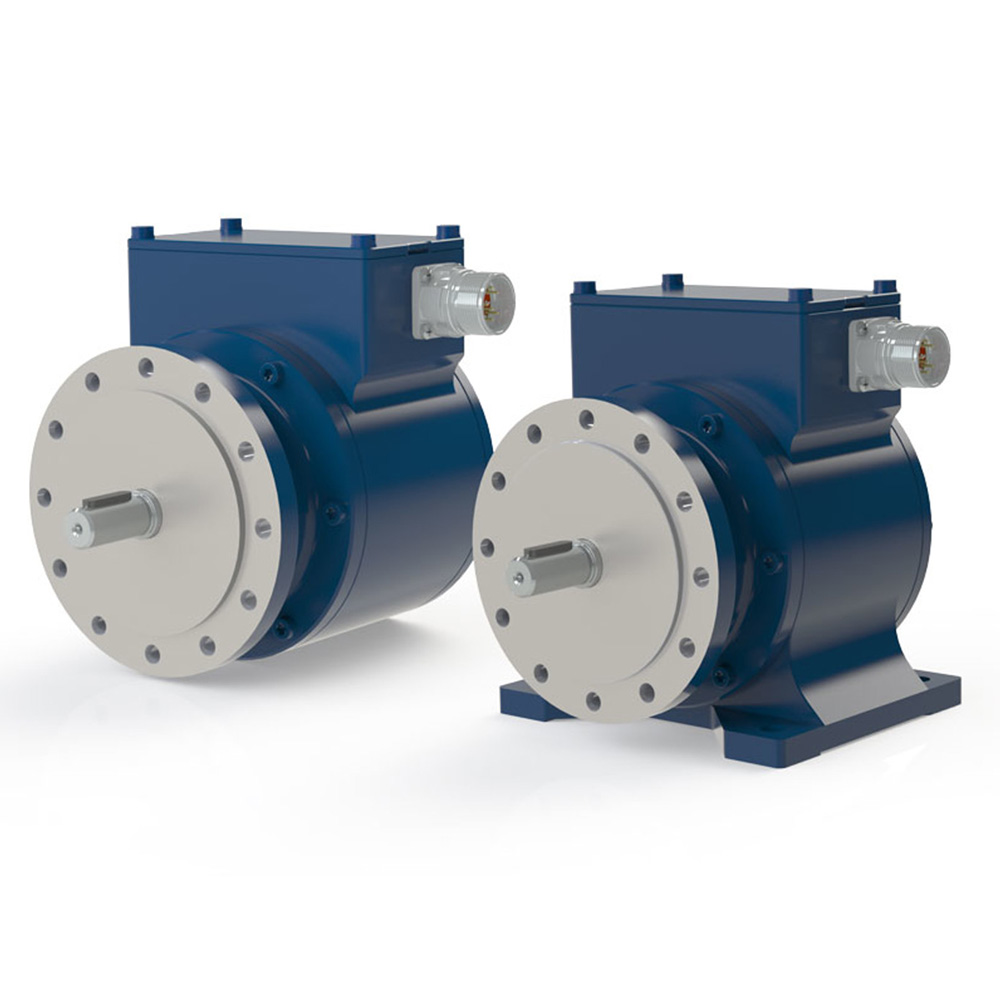

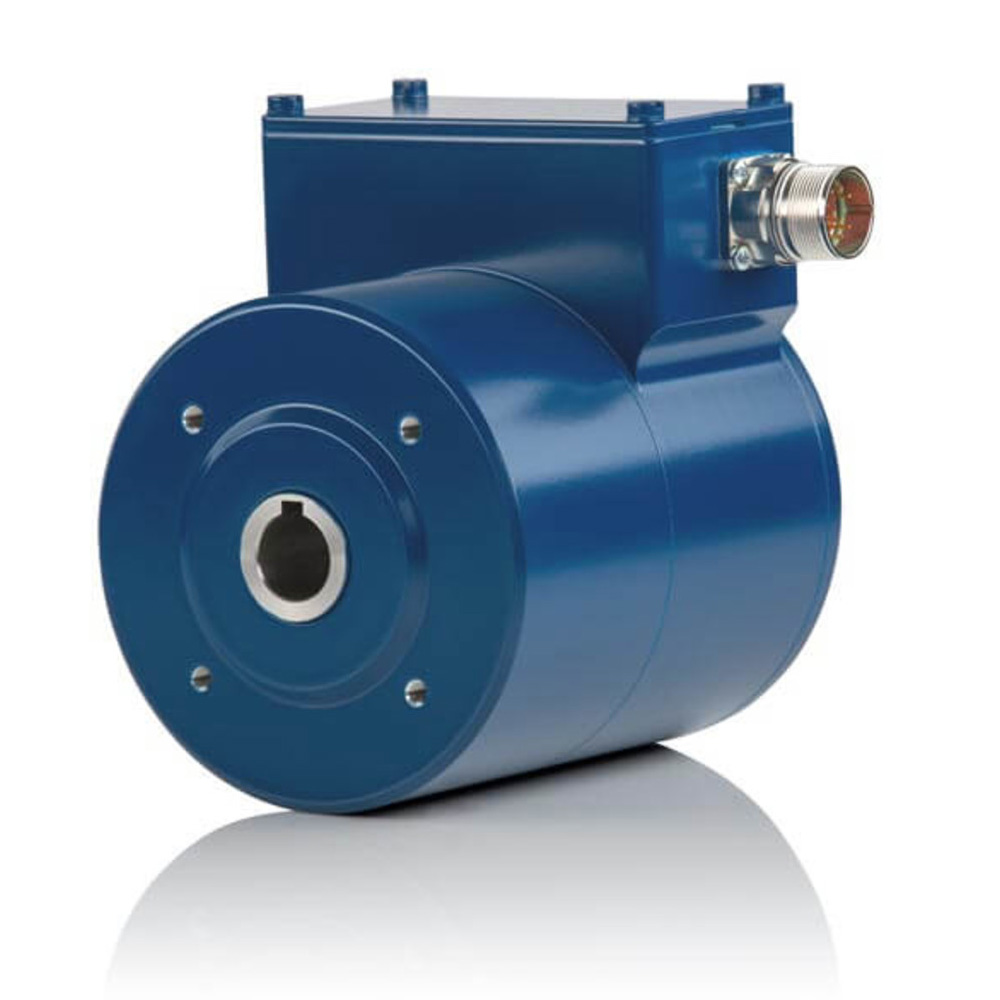

| The extremely rugged incremental encoders FG 41 (solid shaft) / FGH 41 (hollow shaft) are specifically designed for safety applications in heavy industry. The SIL certified series offers a high level of safety up to SIL 2 / PL d (position oriented) and SIL 3 / PL e (speed oriented). The encoders are highly resistant to shock and vibration loads, with degree of protection up to IP67. Day offer a high signal quality (HTL, TTL, Sin/Cos) up to 4096 pulses to guarantee exact measurement results even in particularly harsh operating conditions such as in wet areas in rolling mills or sea air. | |
