For encoder attachments with offset
Play-free, torsion resistant and failsafe
Extends service life of encoders
Options: Isolated version (HKI 5)
| Technical Data | |
| Attribute | Value |
| Product usage |
- Compensate axial misalignment - Compensate angular offset - Isolate against existing bearing/shaft currents |
| Coupling specification |

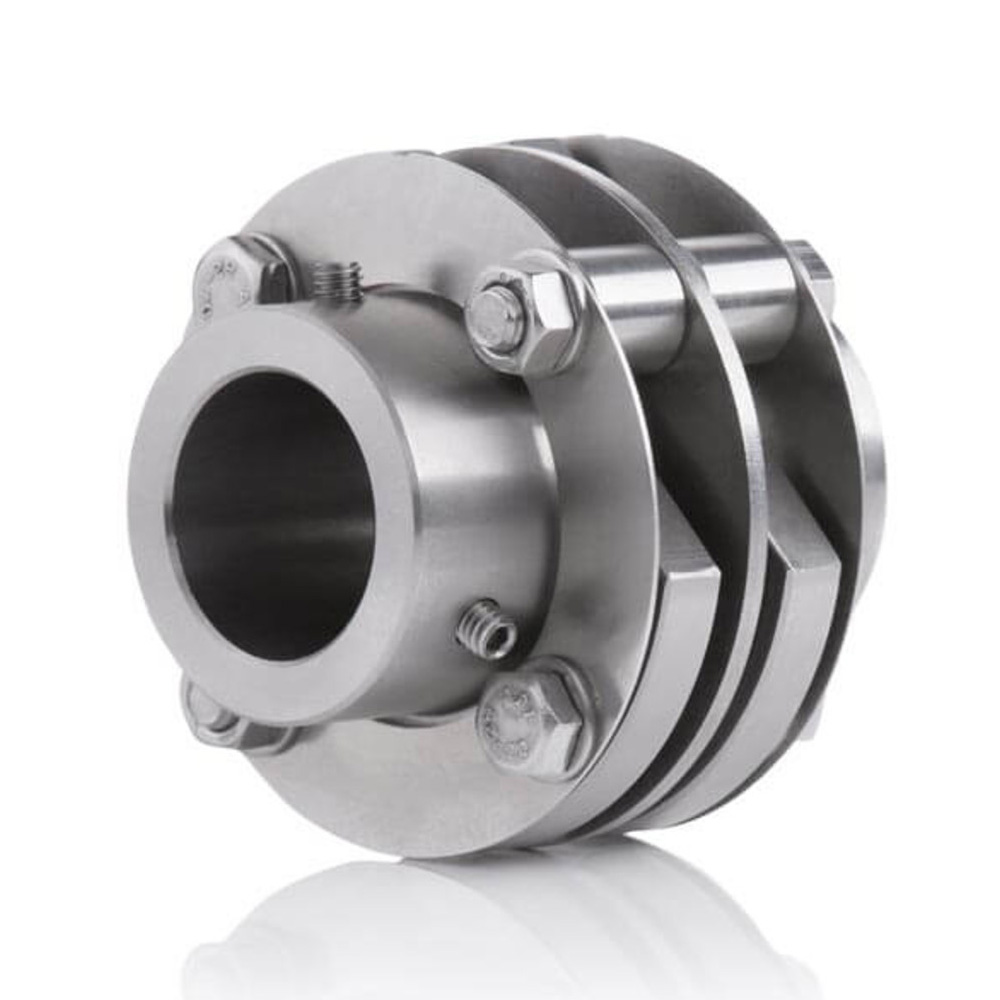

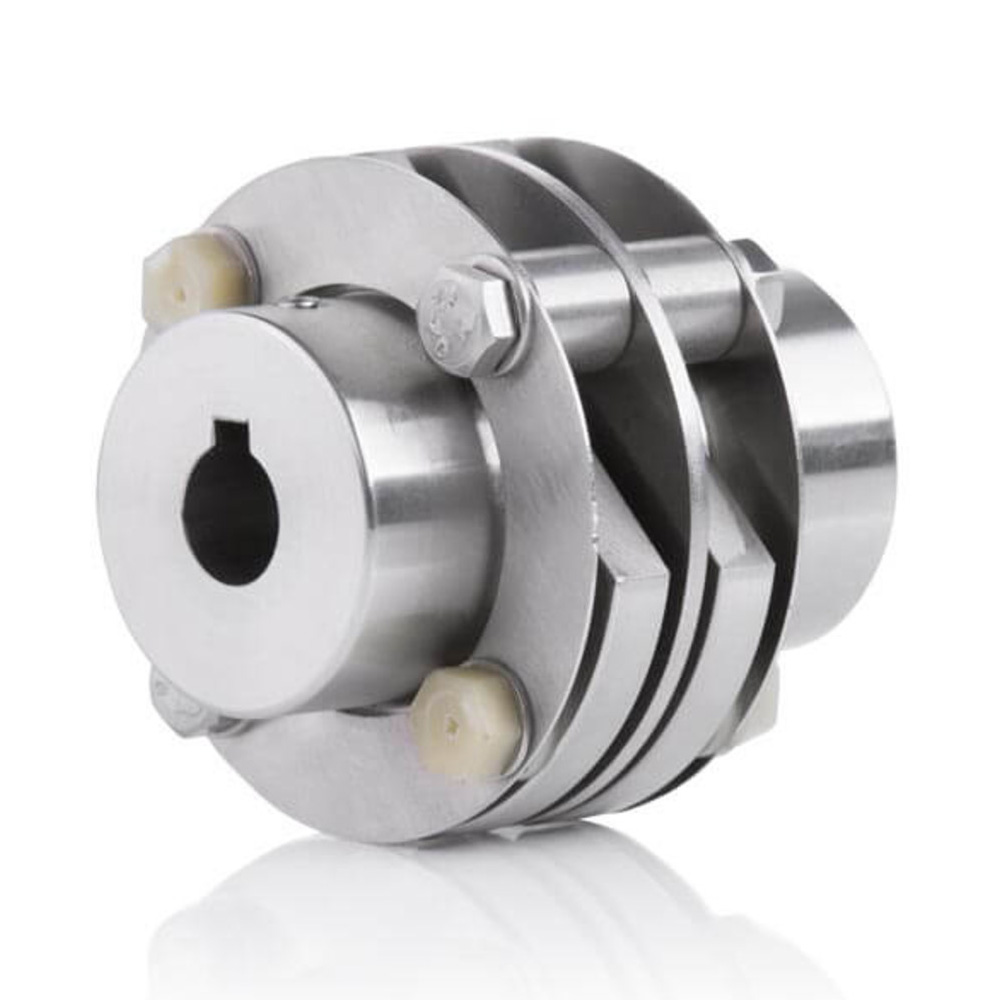

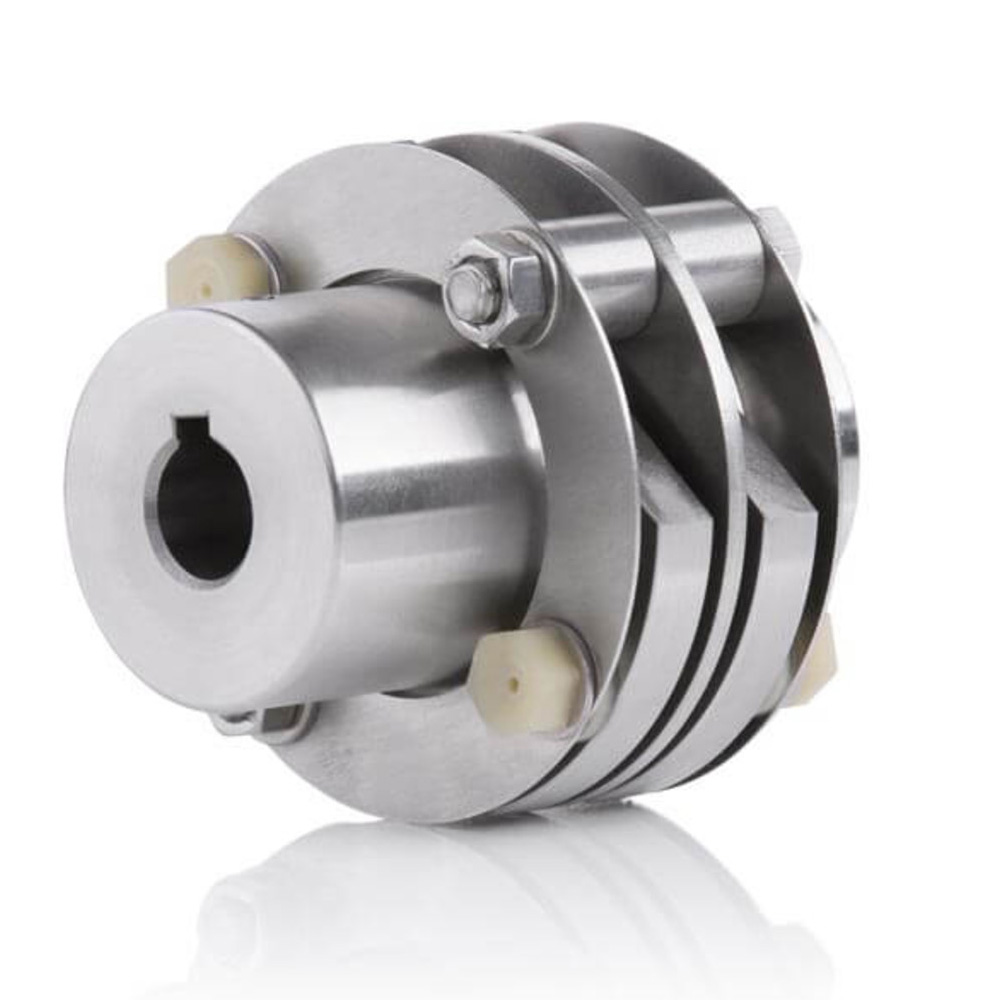

- HK 5…: Stainless steel coupling - HKI 5…: Stainless steel coupling with plastic screws (electrically isolated) |

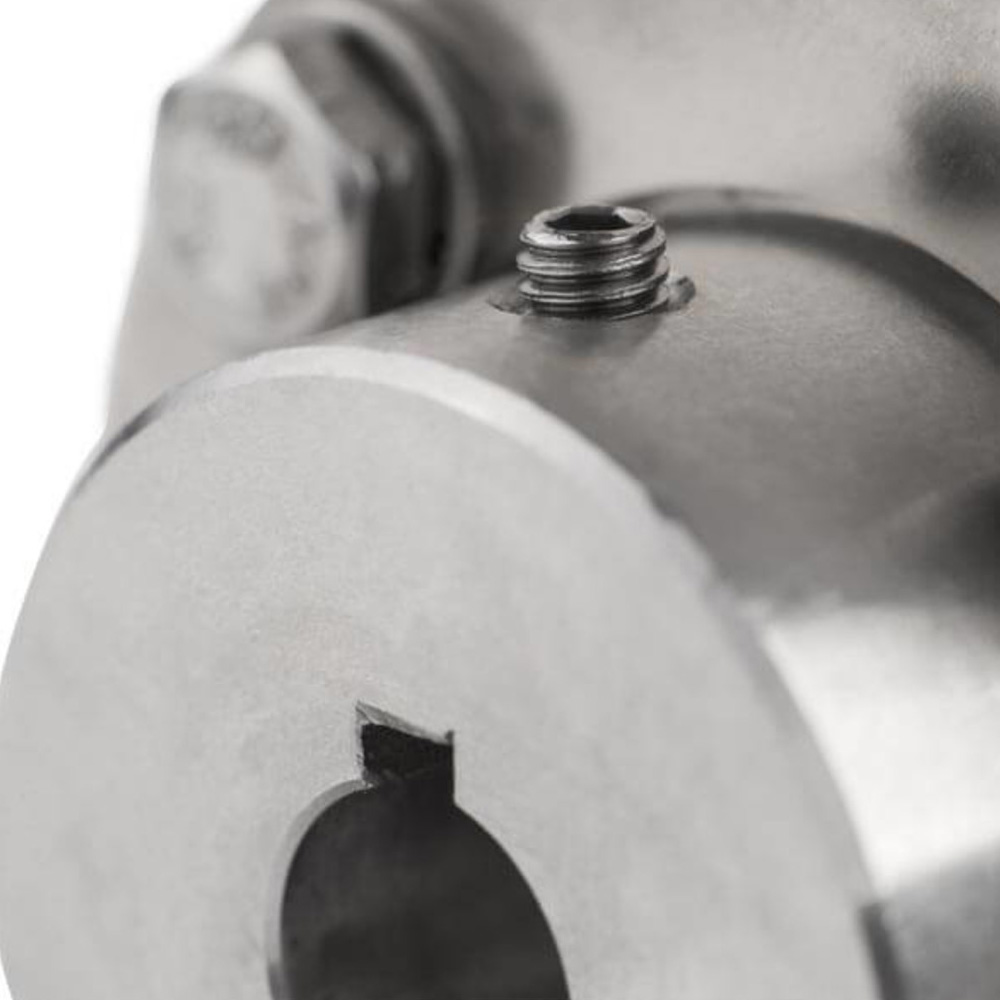

| Bore drive side | Max. Ø 22 mm with keyway or clamp |
| Bore encoder side | Max. Ø 22 mm with keyway or clamp |
| Outer diameter | Ø 54 mm |
| Total length | 42 - 68 mm |
| Mounting accuracy | Angular offset: up to 0.5° / axial misalignment: up to ±1 mm |
| Maximum rotation | 10000 rpm |
| Temperature range |
- HK 5…: -50 °C to +120 °C - HKI 5…: -40 °C to +110 °C |
| Shock resistance | 10 g (briefly 100 g) |
| Vibration resistance | 3 g (briefly 20 g) |
| Insulated against currents |
- HK 5…: No - HKI 5…: Yes |
| Mechanical options |
- Isolation against bearing/shaft currents (type HKI) - Larger diameter possible by means of adapter shaft |
| Special features and certificates | |
| The stable connections | |

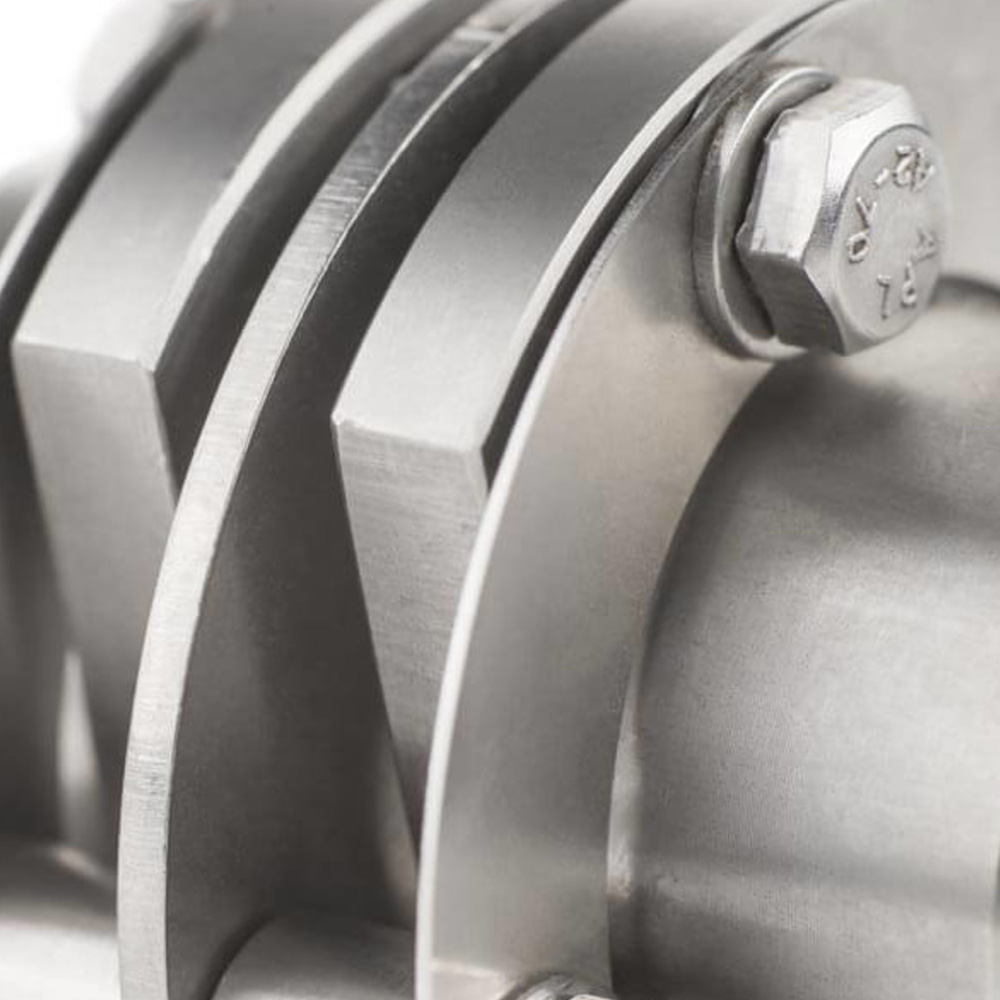

| Corrosion proof HK metal multiple disc couplings compensate an angular offset up to 0.5° and an axial misalignment up to ±1 mm as well as extending the service life of encoders in the process. Single joint couplings are available with different hub lengths and bore diameters in addition to isolated coupling versions for attachments where the risk of shaft currents is a concern. | |
