For encoder attachments with offset
Play-free, torsion resistant and failsafe
Extends service life of encoders
Options: Isolated version (HKDI 5)
| Technical Data | |
| Attribute | Value |
| Product usage |
- Compensate axial misalignment - Compensate parallel misalignment - Isolate against existing bearing/shaft currents |
| Coupling specification |

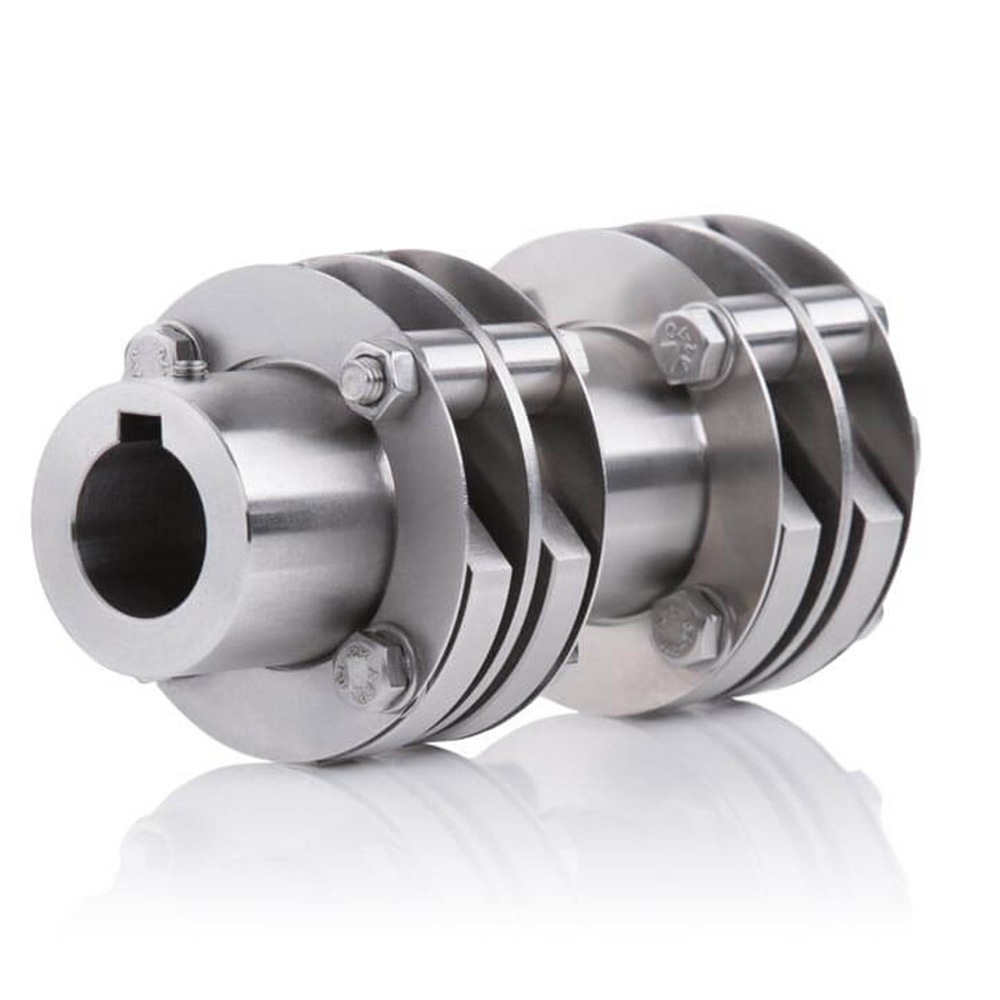

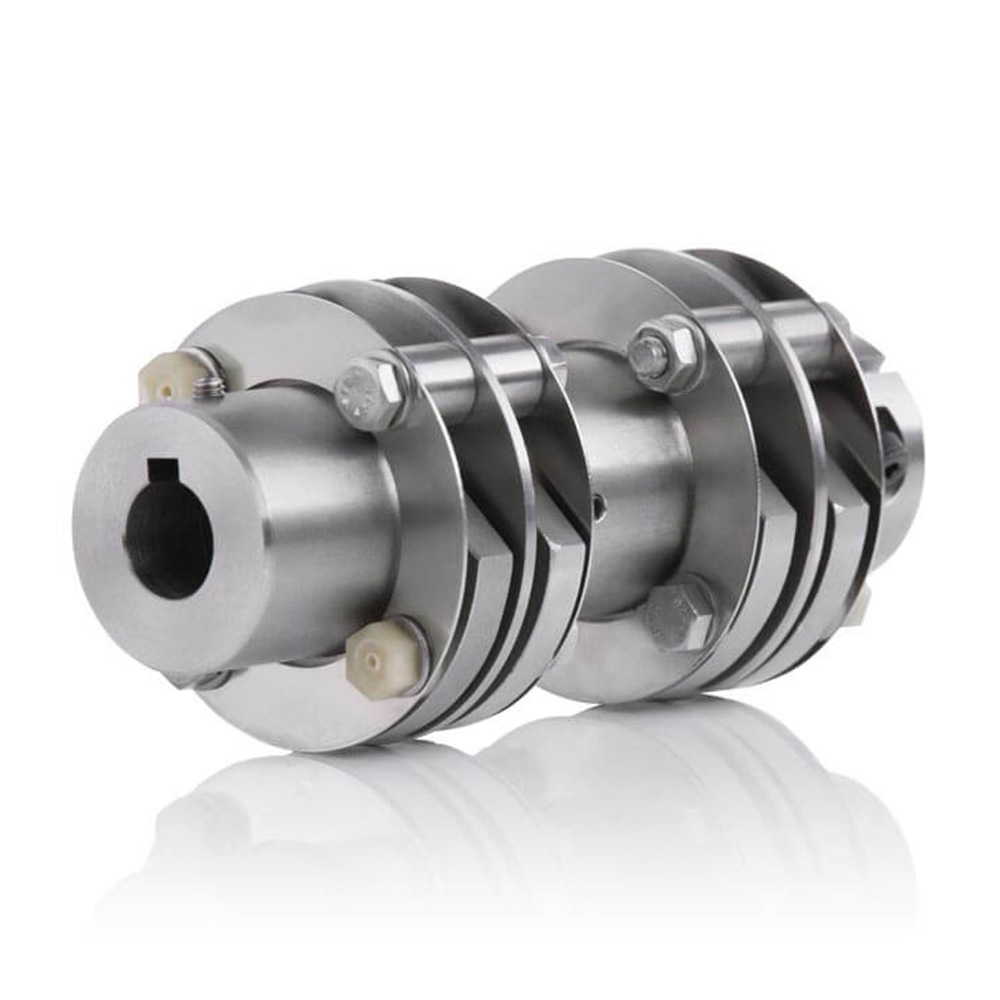

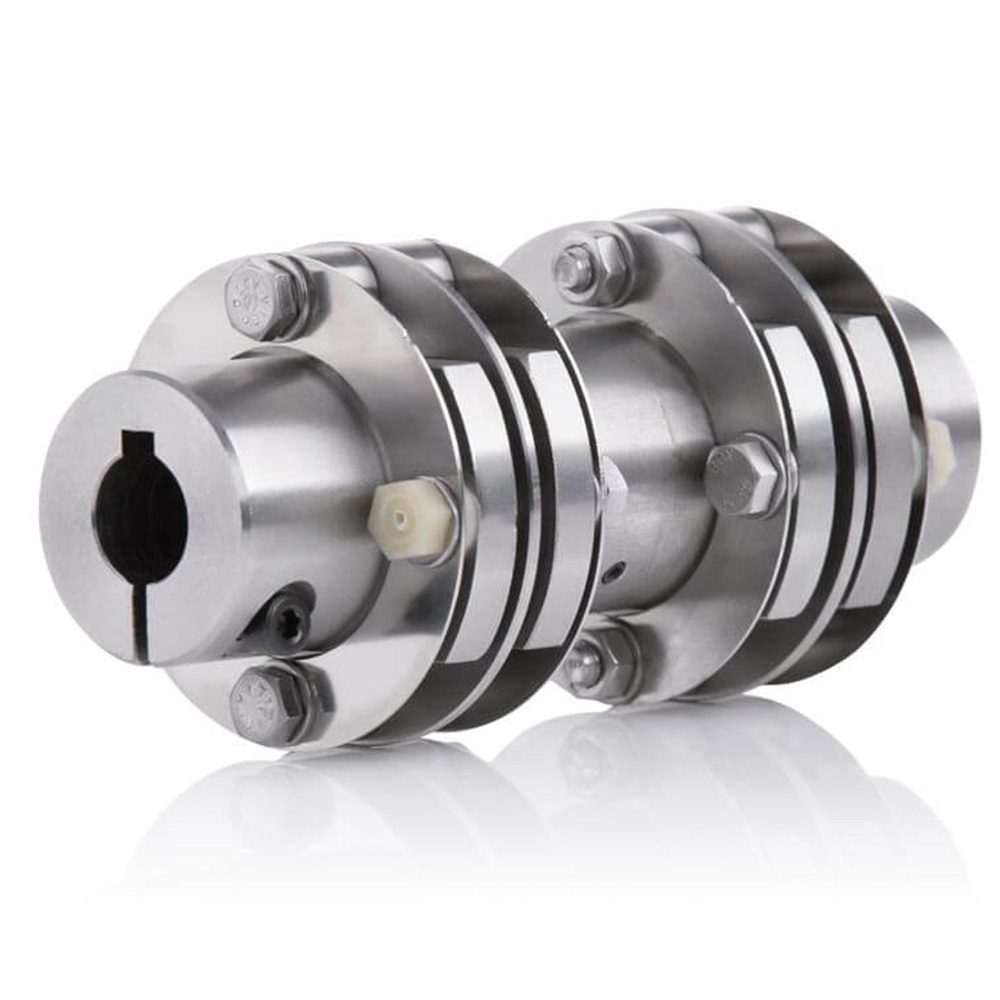

- HKD 5…: Stainless steel coupling - HKDI 5…: Stainless steel coupling with plastic screws (electrically isolated) |

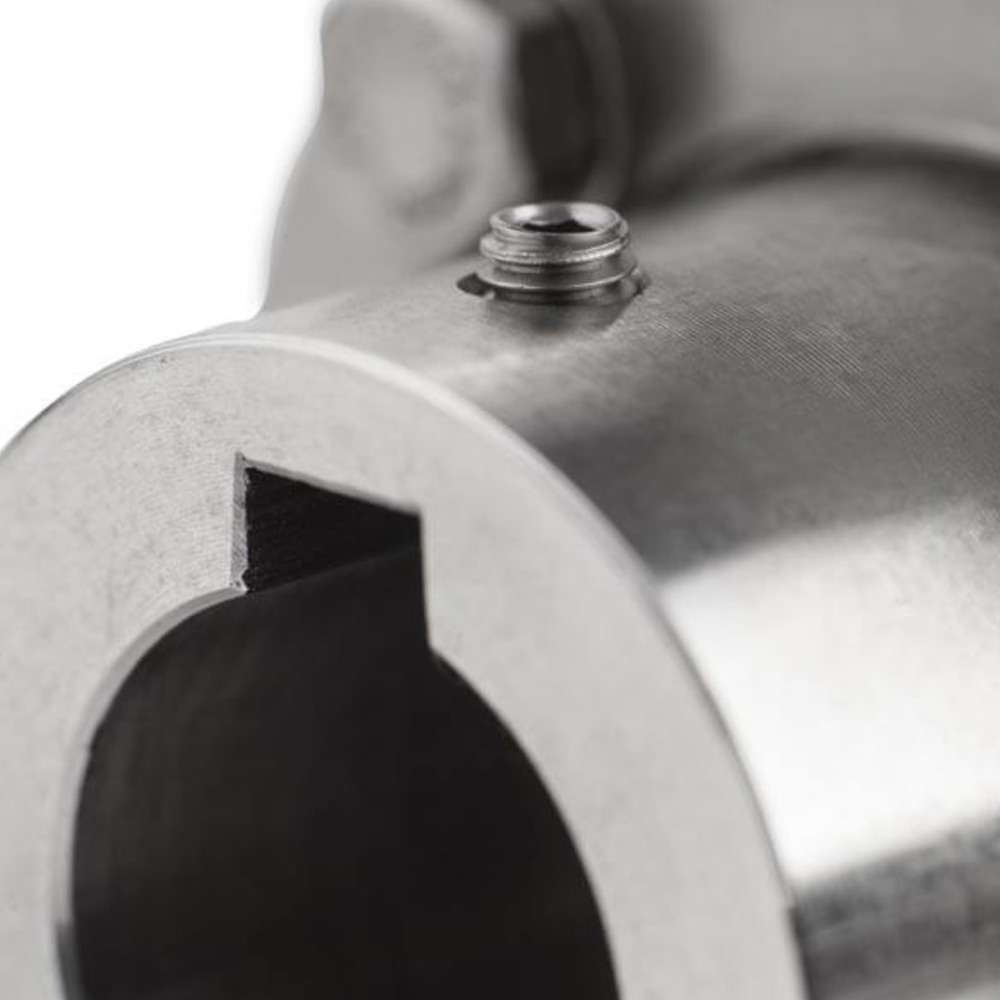

| Bore drive side | Max. Ø 22 mm with keyway or clamp |
| Bore encoder side | Max. Ø 22 mm with keyway or clamp |
| Outer diameter | Ø 54 mm |
| Total length | 66 - 120 mm |
| Mounting accuracy | Radial misalignment: up to ±0.5 mm / axial misalignment: up to ±1 mm |
| Maximum rotation | 4000 rpm |
| Temperature range |
- HKD 5…: -50 °C to +120 °C - HKDI 5…: -40 °C to +110 °C |
| Shock resistance | Briefly 50 g |
| Vibration resistance | Briefly 10 g |
| Insulated against currents |
- HKD 5…: No - HKDI 5…: Yes |
| Mechanical options |
- Isolation against bearing/shaft currents (type HKSI) - Attachment to larger shaft diameters possible with adapter shaft |
| Special features and certificates | |
| The stable connections | |

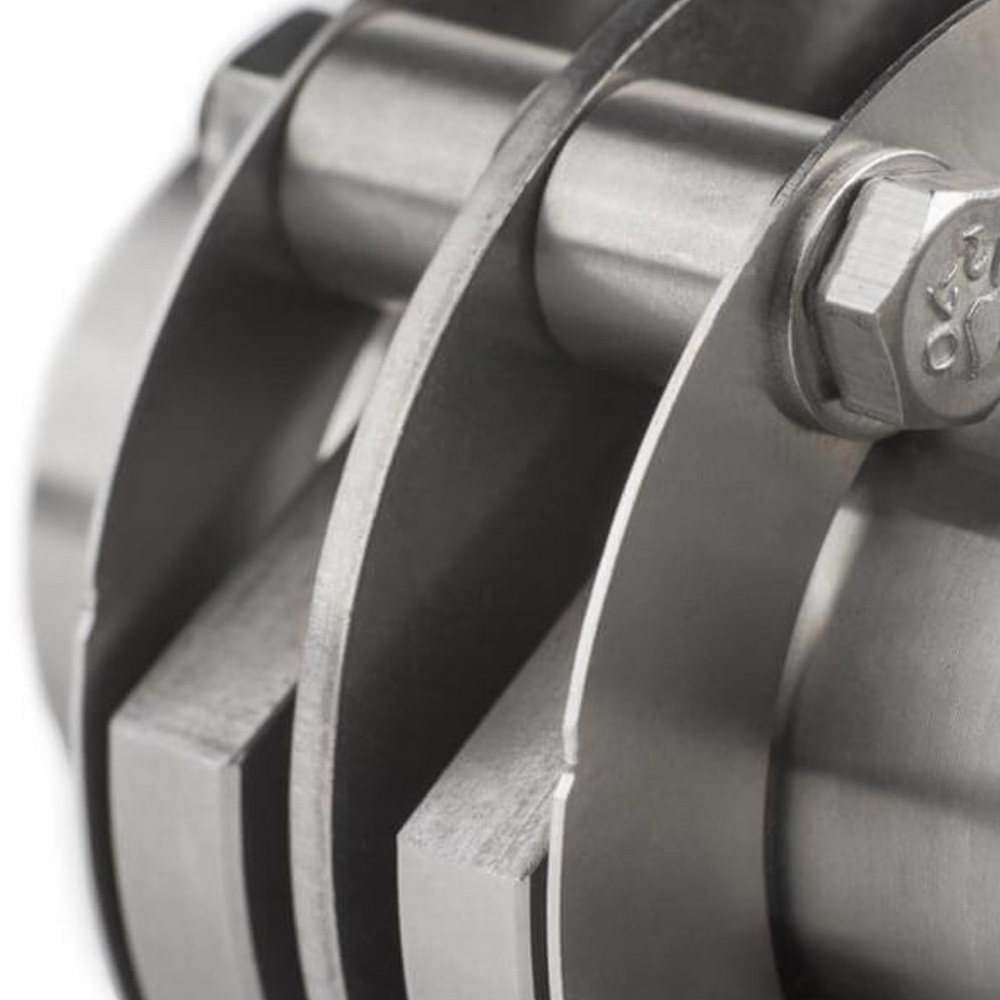

| Corrosion proof HKD metal multiple disc couplings compensate a parallel misalignment up to ±0.5 mm and an axial misalignment up to ±1 mm as well as extending the service life of encoders in the process. Double joint couplings are available with different hub lengths and bore diameters in addition to isolated coupling versions for attachments where the risk of shaft currents is a concern. | |
