For encoder attachments with increased offset (parallel/axial)
Play-free, torsion resistant, failsafe and isolated
Extends service life of encoders
Options: Variety of attachment possibilities
| Technical Data | |
| Attribute | Value |
| Product usage |
- Compensate axial misalignment - Compensate parallel misalignment - Isolate against existing bearing/shaft currents |

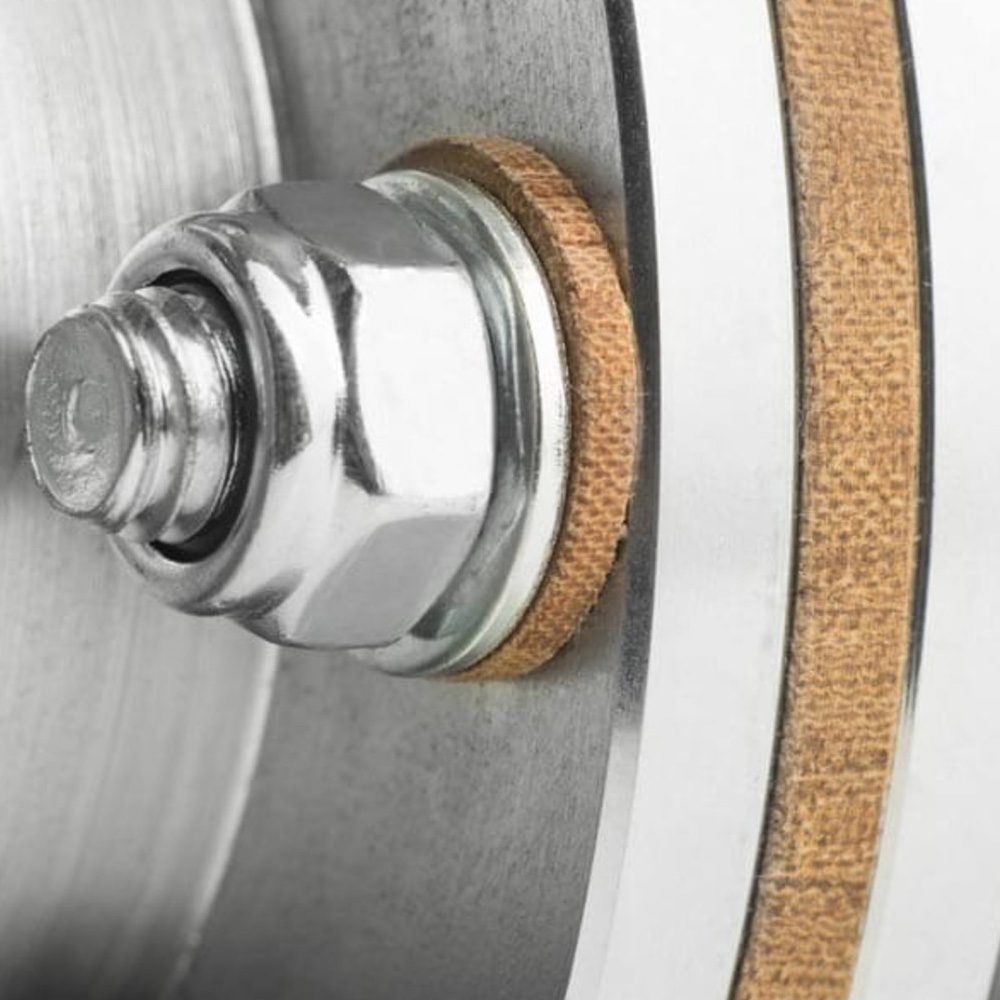

| Coupling specification | Stainless steel coupling with plastic screws (electrically isolated) |

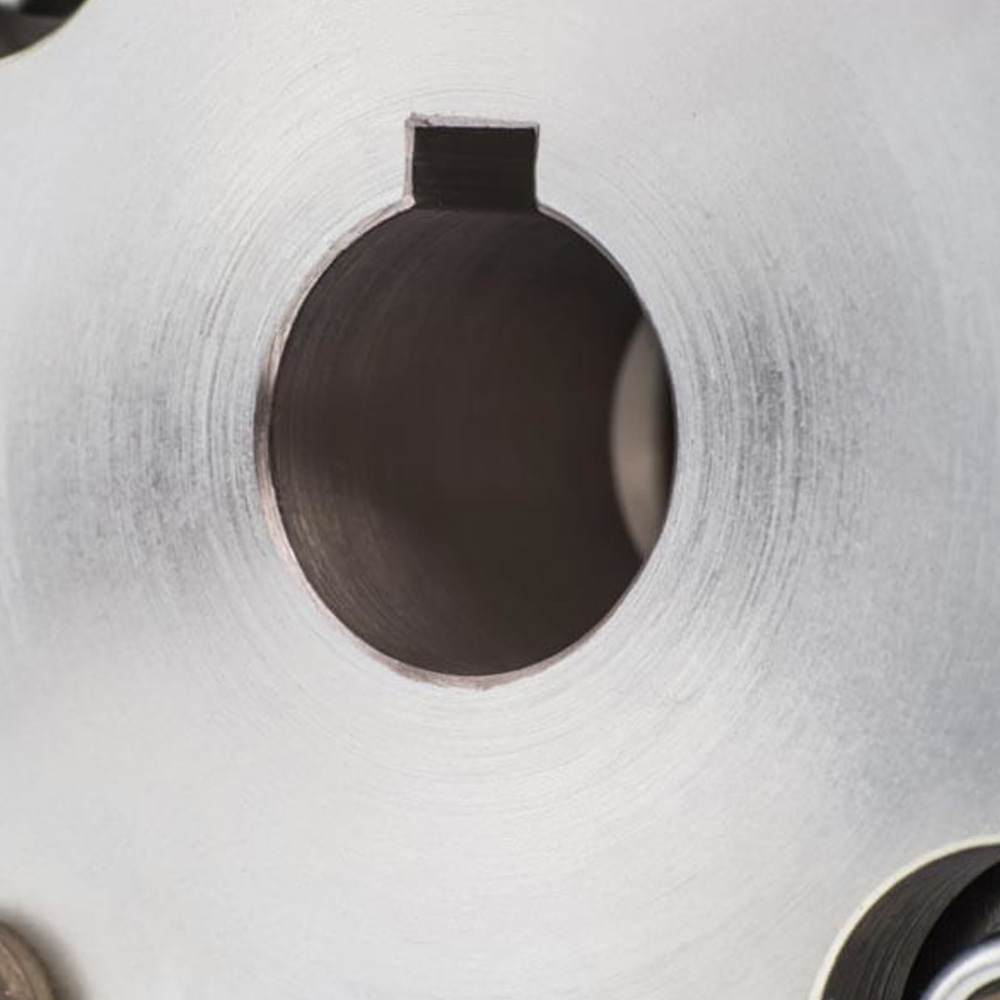

| Bore drive side | Max. Ø 40 mm with keyway / taper: 20 mm or 32 mm (larger diameter possible by means of adapter shaft) |
| Bore encoder side | Max. Ø 40 mm with keyway / taper: 20 mm or 32 mm (larger diameter possible by means of adapter shaft) |
| Outer diameter | Ø 97 mm |
| Total length | 112 - 191 mm |
| Mounting accuracy | Radial misalignment: up to ±1 mm / axial misalignment: up to ±2 mm |
| Maximum rotation | 12000 rpm |
| Temperature range | -40 °C to +110 °C |
| Shock resistance | 10 g (briefly 100 g) |
| Vibration resistance | 3 g (briefly 20 g) |
| Insulated against currents | Yes |
| Mechanical options | Attachment to larger shaft diameters possible with adapter shaft |
| Special features and certificates | |
| The flexible connections | |

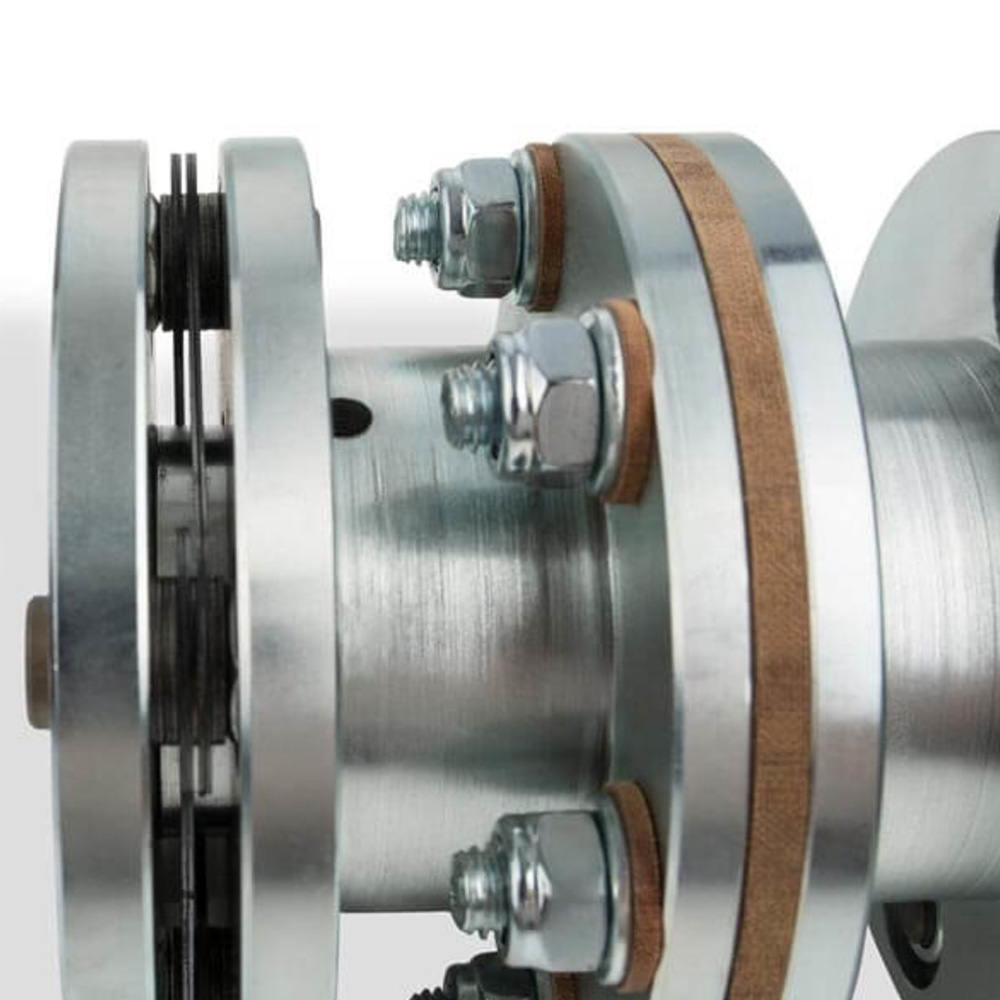

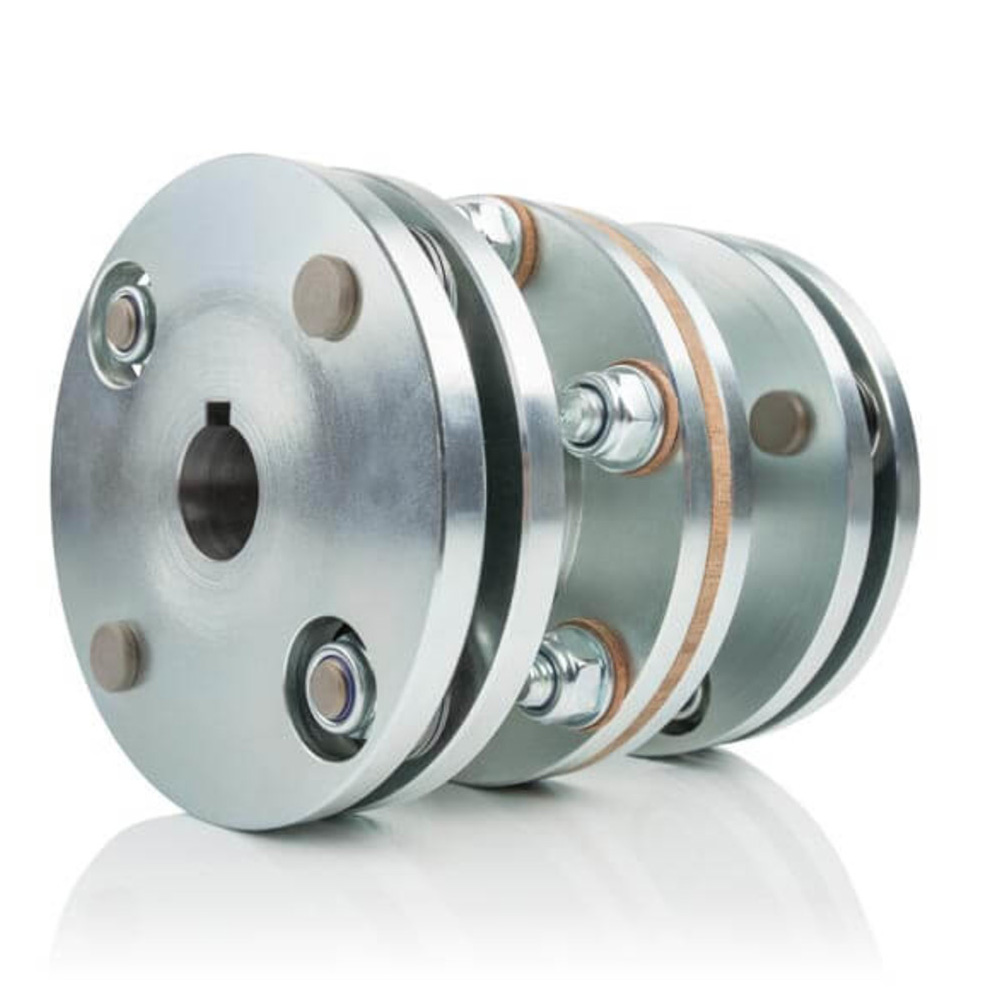

| The isolated and corrosion proof HKI metal multiple disc couplings compensate an increased parallel misalignment up to ±1 mm and an axial misalignment up to ±2 mm as well as extending the service life of encoders in the process. Double joint couplings are optionally available with attachment options for large bore diameters up to 40 mm as well as for shafts without a feather key (positive fit) or tapered shaft. | |
