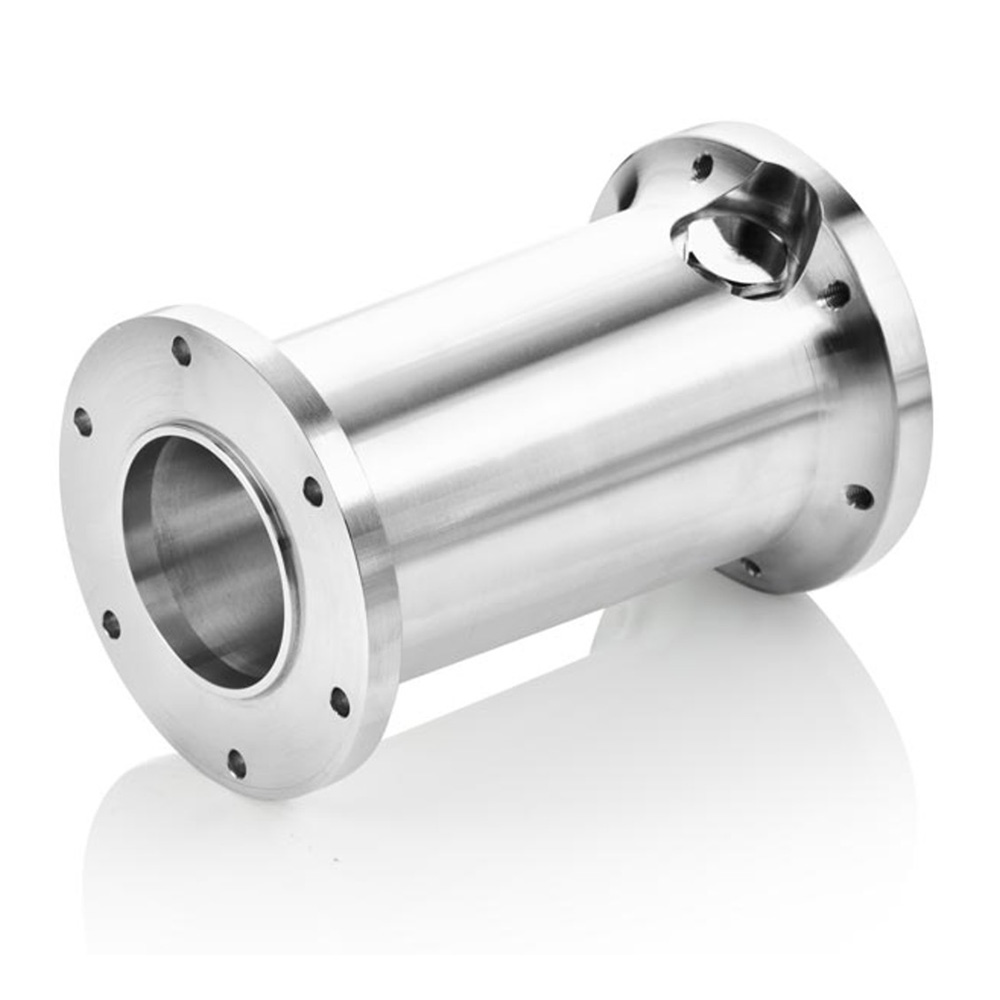

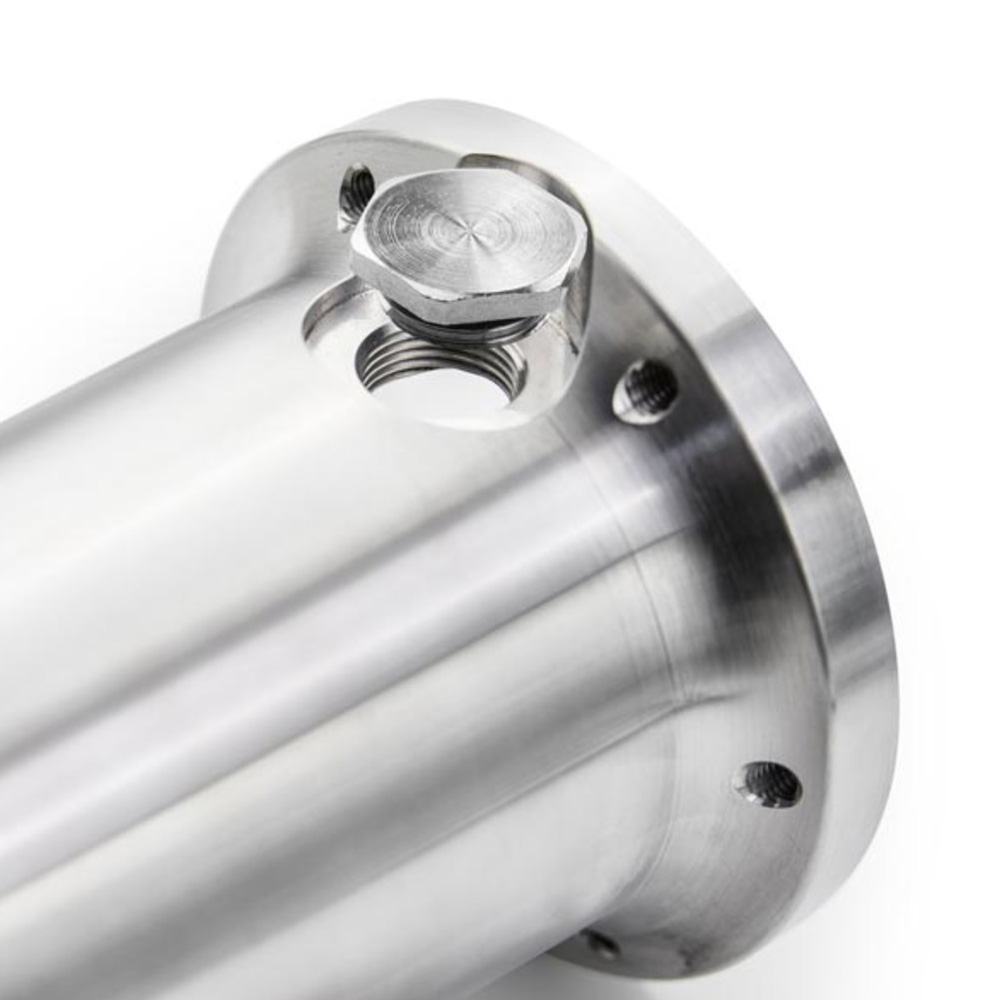

Taylormade flange attachment of solid shaft encoders
Individual design options (flanged length / mechanical interface)
Corrosion-resistant aluminium housing
Options: Certified safety component to DIN EN ISO 13849-2 (PL e)
| Technical Data | |
| Attribute | Value |
| Product usage | Intermediate flange with spacer ring for a B5 attachment of a solid shaft encoder to a customer shaft |
| Mounting type | Calculated individually case-by-case /design as per consultation |

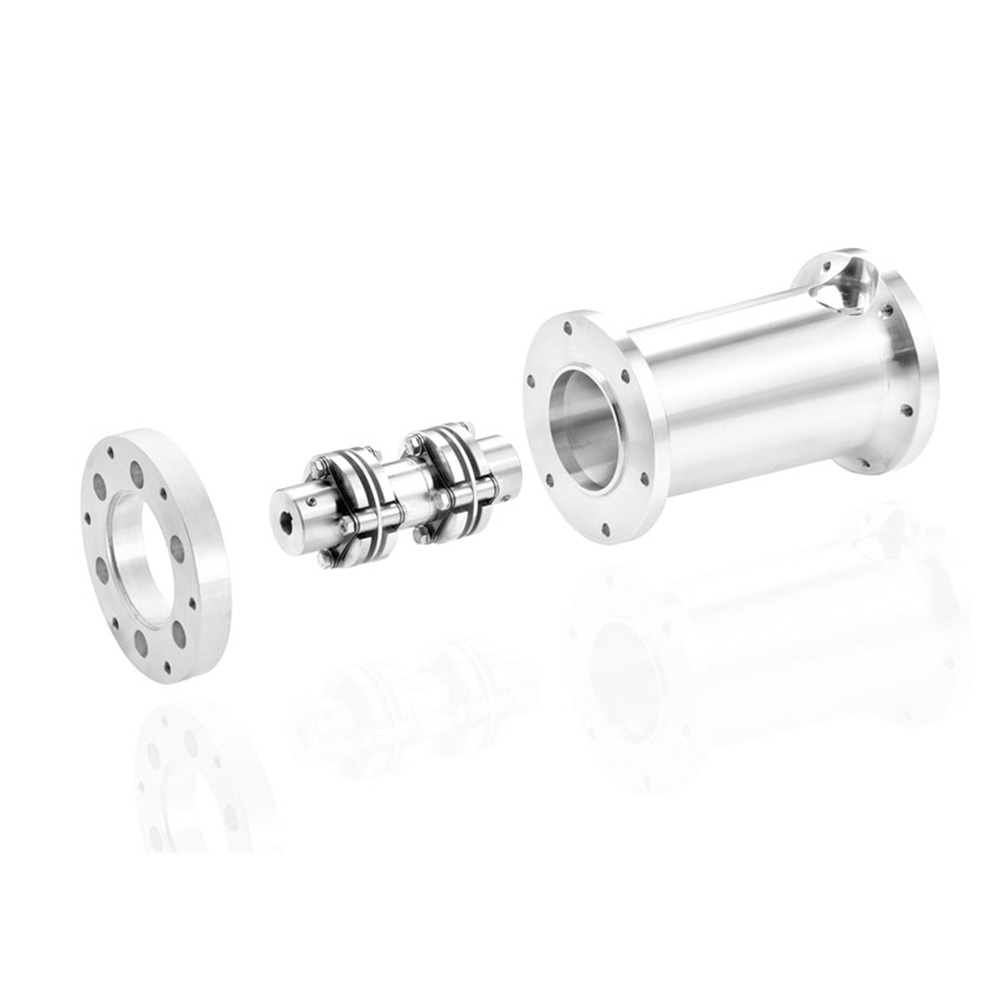

| Mounting accuracy | Solid shaft encoder via coupling to customer’s solid shaft (max. length 250 mm; spacer ring: Hole circle Ø ≥ 85 mm; centering Ø ≥ 65 mm) |
| Maximum rotation | Calculated individually case-by-case /design as per consultation |
| Temperature range | -25 °C to +85 °C |
| Shock resistance | Up to 100 g briefly(to DIN EN 60068-2-27); 54 g permanently for encoder weight 4.2 kg; Values for greater encoder weights on request |
| Vibration resistance | Up to 20 g briefly(to DIN EN 60068-2-6); 17 g permanently for encoder weight 4.2 kg; Values for greater encoder weights on request |
| Insulated against currents | No |
| Mechanical options | |
| Special features and certificates | Optionally designed as safety component with fault exclusion to DIN EN ISO 13849-2 (up to PLe), with CE declaration of conformity |
| The compensators | |

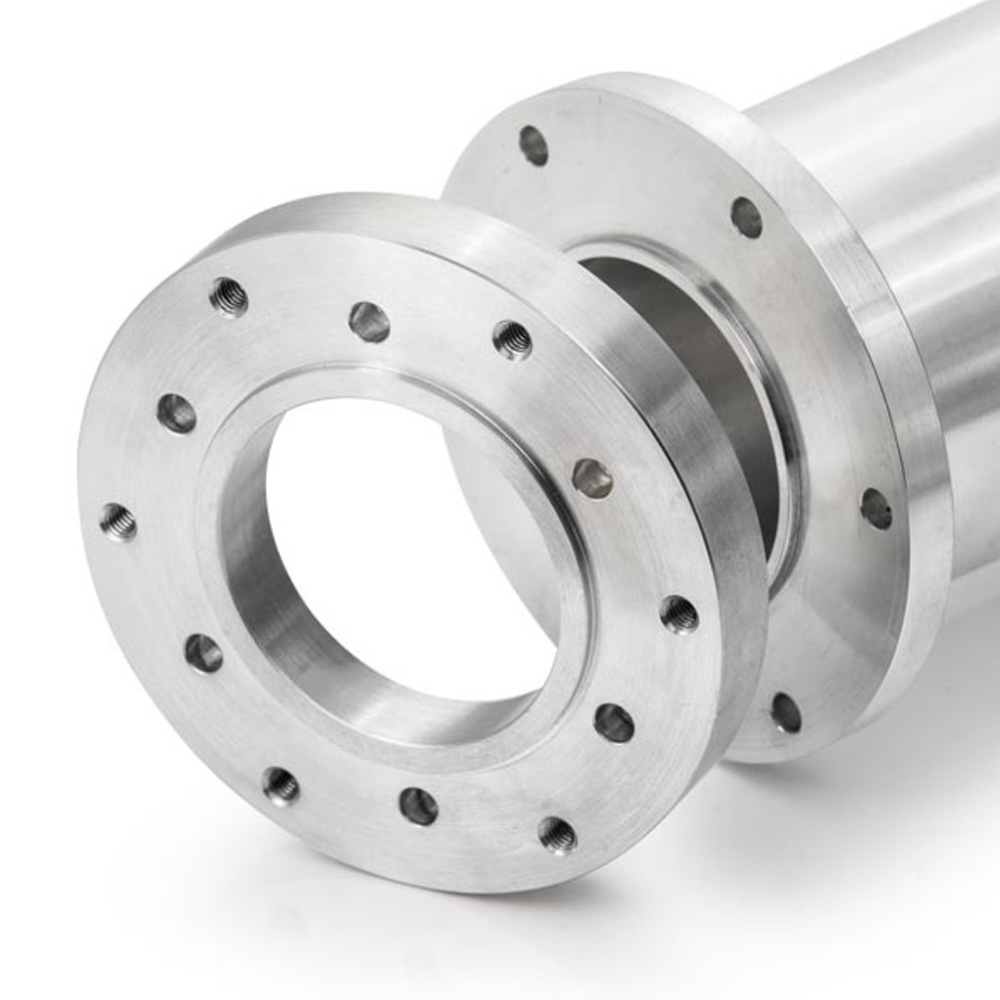

| The intermediate flanges are custom fit precisely according to the distance between the encoder flange and the application interface. In this way they guarantee the safety integrated mechanical attachment of the encoder to the machine housing. They are available as a standard accessory part and as a certified safety component. Individually sized spacer rings ensure the right mechanical interface between the flange and the machine housing. | |
