Taylormade system solution for flange and foot attachments
Individuell fitting calculation and design
Simplified risk assessment and customer-side acceptance test
Options: on-site measurement and installation; isolated version; safety certified version to DIN EN ISO 13849-2 (PL e)
| Technical Data | |
| Attribute | Value |
| Product usage | Solid shaft attachment points: Optionally with functional safety requirement (PL e) |
| Mounting type |
Attachment situation according to customer interface, for example, - B5 attachment: Safety coupling with safety intermediate flange for sensor as flange mount design - B3 attachment: Safety coupling for sensor as foot mount design - Feather key (keyed joint must be guaranteed) - Safety encoder series 41 and 42 (SIL/PL certified) - Optional standard encoder (according to requirement) |
| Mounting accuracy | Calculated individually case-by-case /design as per consultation |
| Maximum rotation | Calculated individually case-by-case /design as per consultation |
| Temperature range | Calculated individually case-by-case /design as per consultation |
| Shock resistance | Calculated individually case-by-case /design as per consultation |
| Vibration resistance | Calculated individually case-by-case /design as per consultation |
| Insulated against currents | Optionally possible |
| Mechanical options | Calculated individually case-by-case /design as per consultation |
| Special features and certificates |
- Isolated version - Optional on-site measurement and installation (by Hübner-Gießen service personnel) |
| The taylormade package solutions | |

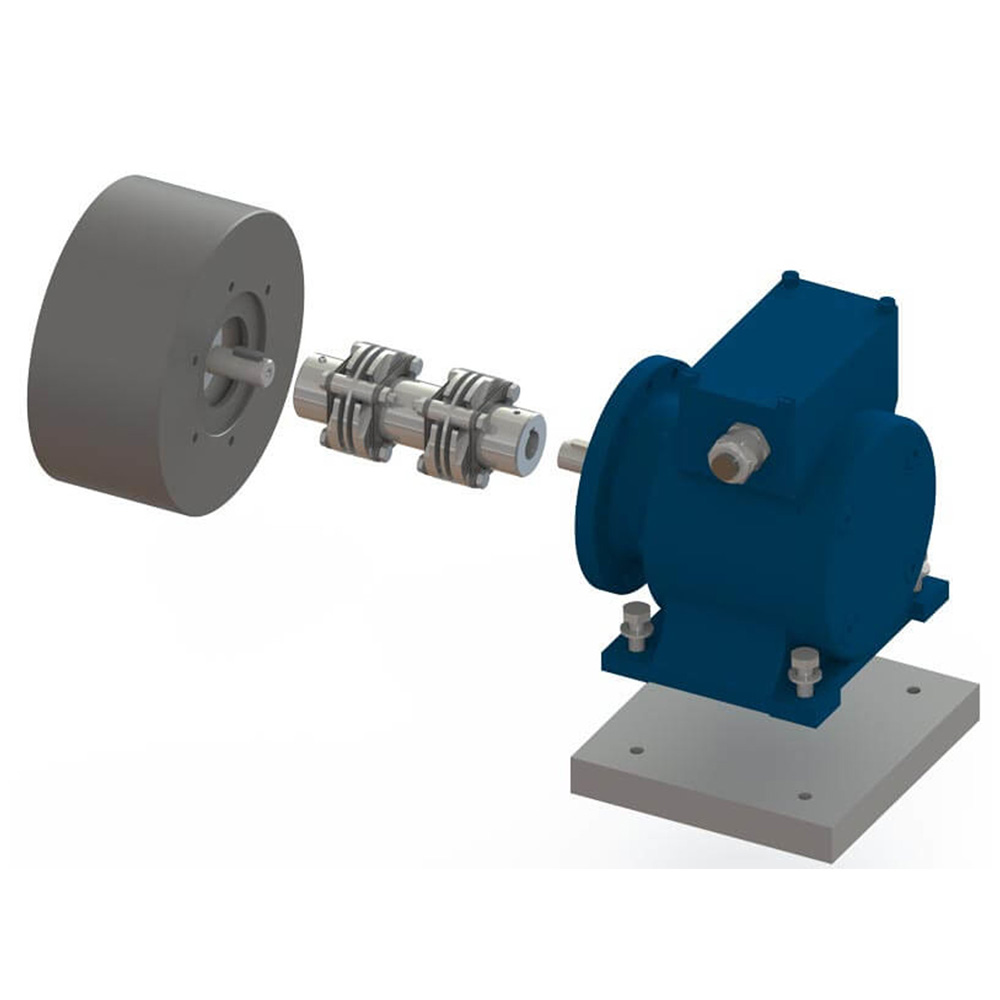

| The taylormade system solutions for solid shaft attachment consisting of solid shaft encoders as well as fitting mechanical accessories. Depending on the version this is implemented for flange attachment by means of a coupling and taylormade intermediate flange or for foot attachment by means of a fitting coupling. As an option there are solutions for isolated solid shaft assembly against shaft currents or as certified assembly with fatigue resistant safety components for applications with functional safety requirements. On-site measurement and installation possible, if required. | |
