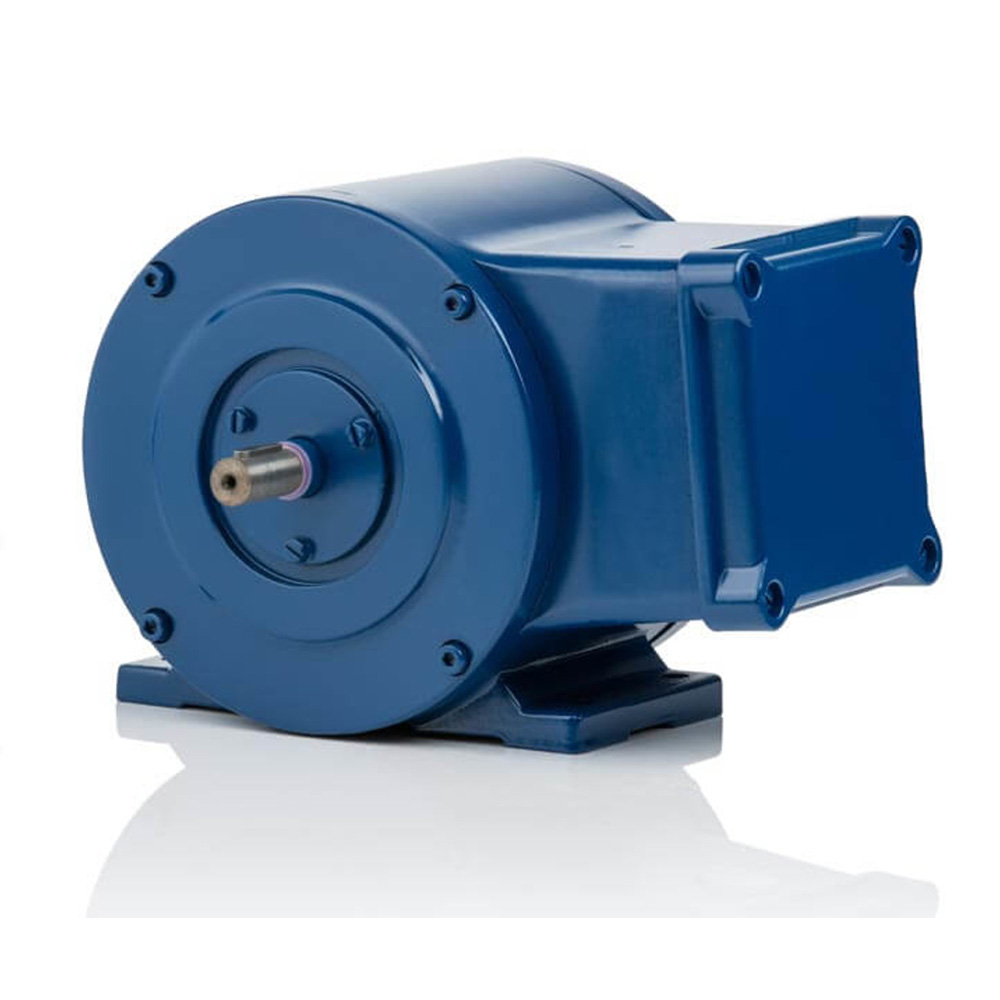

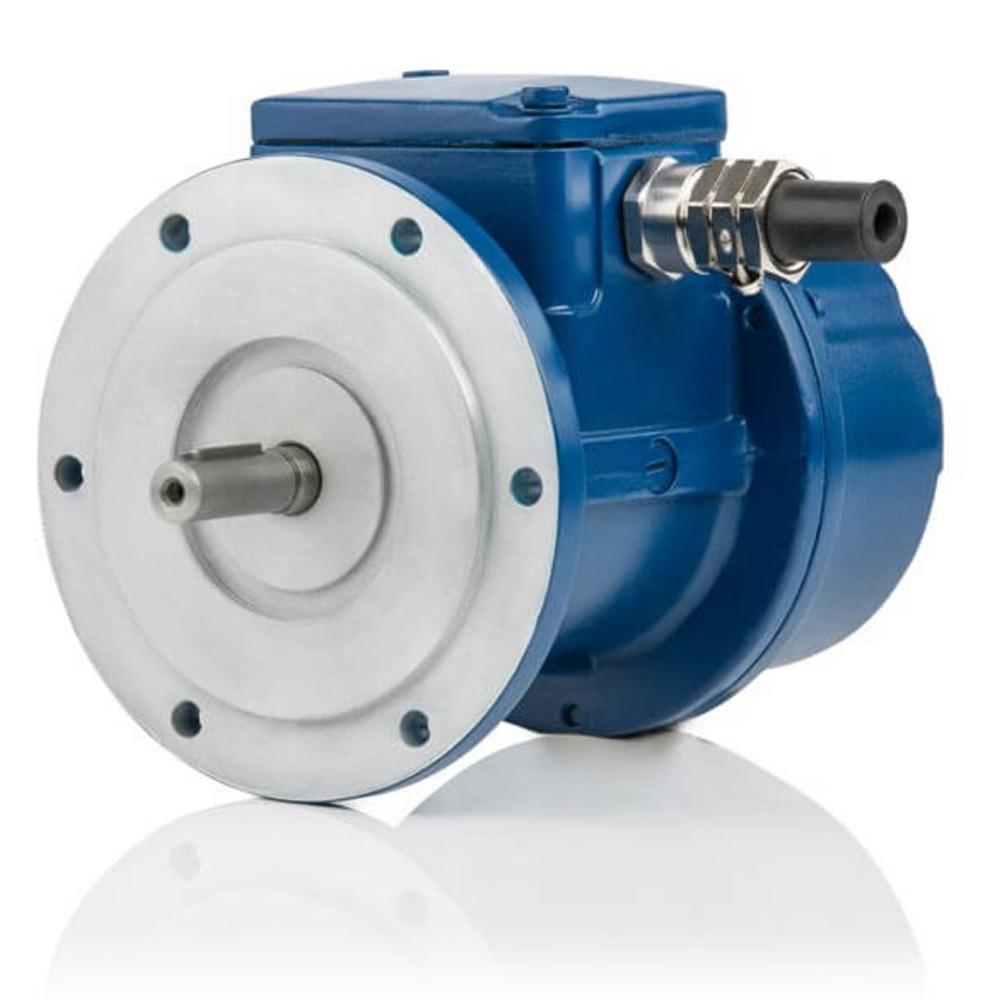

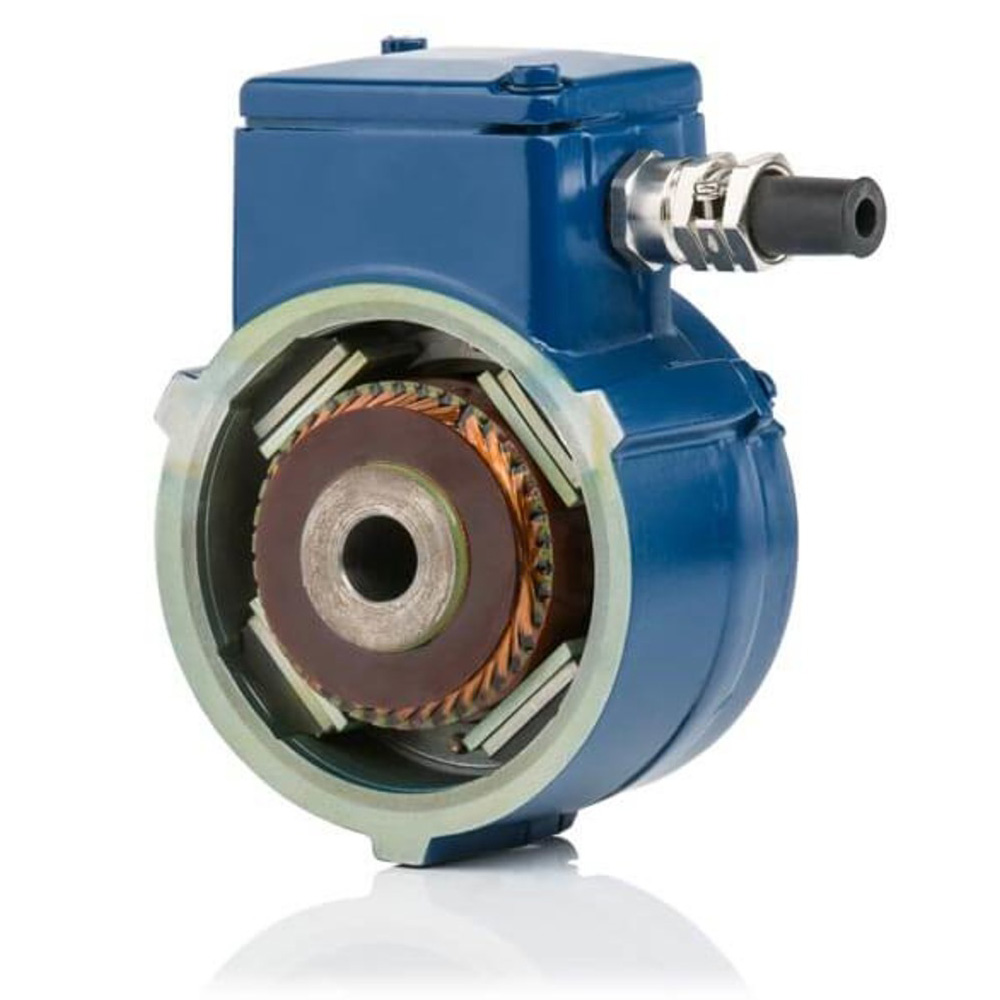

Solid shaft (flange or foot mounting), hollow shaft (A4 or hollow shaft type tacho generator)
Output signal with high-precision linearity 10-500 V / 1000 rpm
Application suitable voltage version
Options: Second shaft end, temperature compensation, attachment/combination with further encoders or overspeed switches
| Technical Data | |
| Attribute | Value |
| Output | Up to 100 W |
| Speed | Up to 9000 rpm |
| Torque | Up to 1 Nm |
| Voltage | Up to 500 V |
| Current | Up to 2.5 A |
| Electrical connection | Terminal box |
| Degree of protection | Up to IP67 |
| Device options |
- Double tacho-generators (2 electrically isolated windings, a common magnetic system) - Double tacho-generators (2 electrically isolated windings, two separate magnetic systems) - Magnetic shunt ring to adjust voltage during operations - Humid and tropical protection - Reduced voltage tolerance - Winding construction for no-load voltage possible (on request) - Temperature compensation up to +100 °C |
| Mechanical options |
- Second shaft end - Special sizes in inches possible |
| Special features and certificates | UL/CSA (TDP 0,7) |
| The proven | |
| Tacho generators are analog transducers for instrumentation and control technology. The permanently excited generators form the speed with which they are driven to a voltage proportional to that speed. Thanks to their robust design and construction they are suitable for larger industrial drives. Depending on the requirements the tacho generators are produced in customized sizes and connections as well as in a variety of voltage versions. They are available with IP rating IP55 to IP67. | |
