Torque brackets

Inquire now
  • Optimized output signals by compensating inaccuracies

  • Maintenance-free and corrosion proof version

  • Individual custom-fit design

  • Options: Certified safety component to DIN EN ISO 13849-2 (PL e) and isolated version


Technical Data
Attribute Value
Product usage

Compensate smaller mounting inaccuracies of hollow shaft encoders

(radial eccentricity of the drive shaft / radial eccentricity resulting from fit tolerances / axial movement of the drive shaft)

Mounting type

Calculated individually case-by-case /design as per consultation :

- Variable torque bracket lengths (B), bracket lengths (L)

- Special mounting positions possible (for example, foot facing to side or upward depending on local situation)

- Different angle between bracket arm and lever arm possible as agreed (for example, 45° instead of 90°)

- Adapted base plates or flange plates

- Isolated version

Mounting accuracy Calculated individually case-by-case /design as per consultation
Maximum rotation Calculated individually case-by-case /design as per consultation
Temperature range Calculated individually case-by-case /design as per consultation
Shock resistance Calculated individually case-by-case /design as per consultation
Vibration resistance Calculated individually case-by-case /design as per consultation
Insulated against currents Yes (optional)
Mechanical options Accessories (base plates etc.)
Special features and certificates Designed as safety component with fault exclusion to DIN EN ISO 13849-2 (up to PLe), with CE declaration of conformity
The stable solutions for optimum signal quality

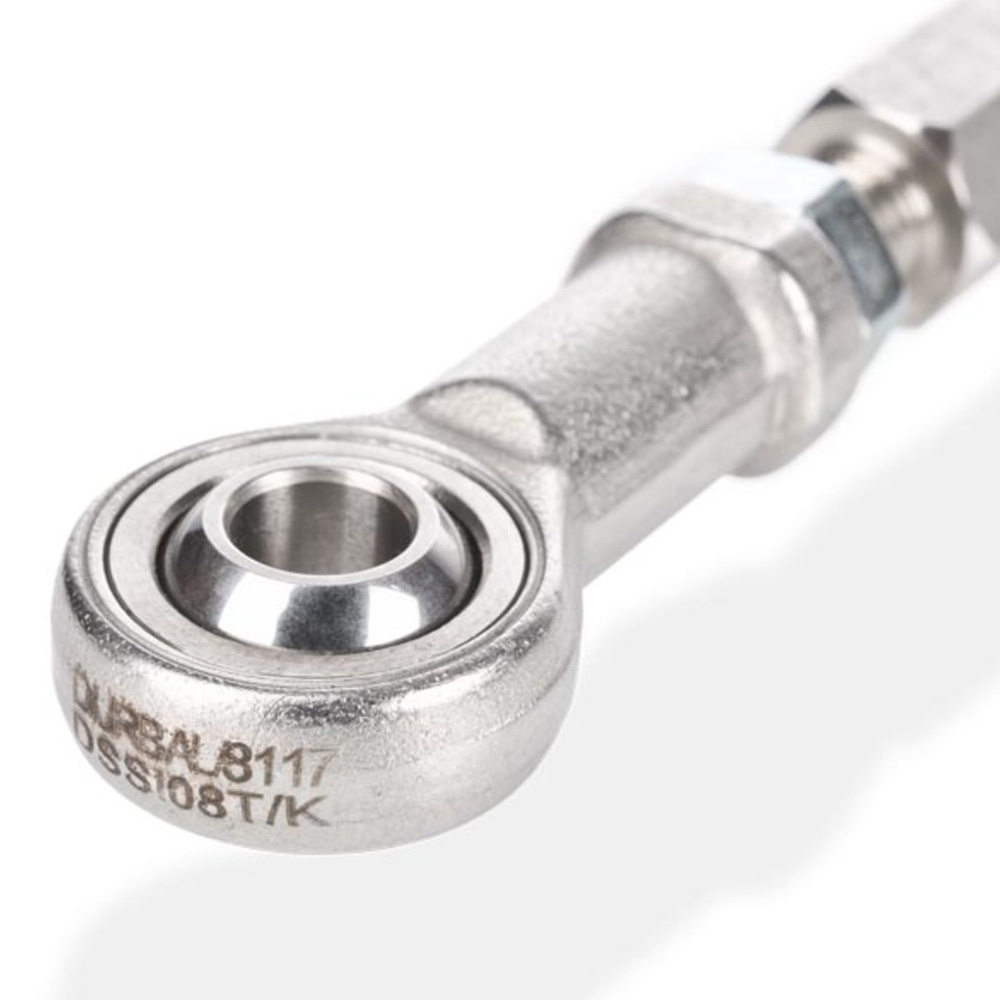

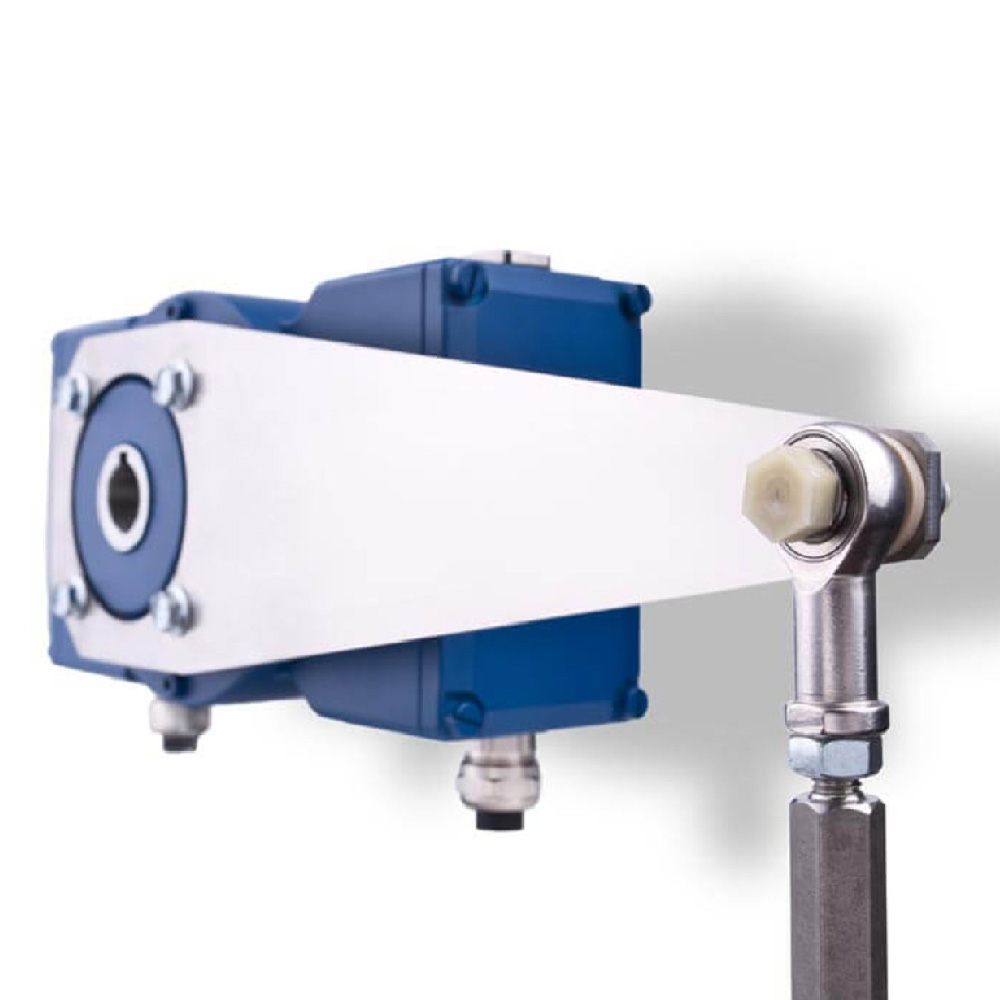

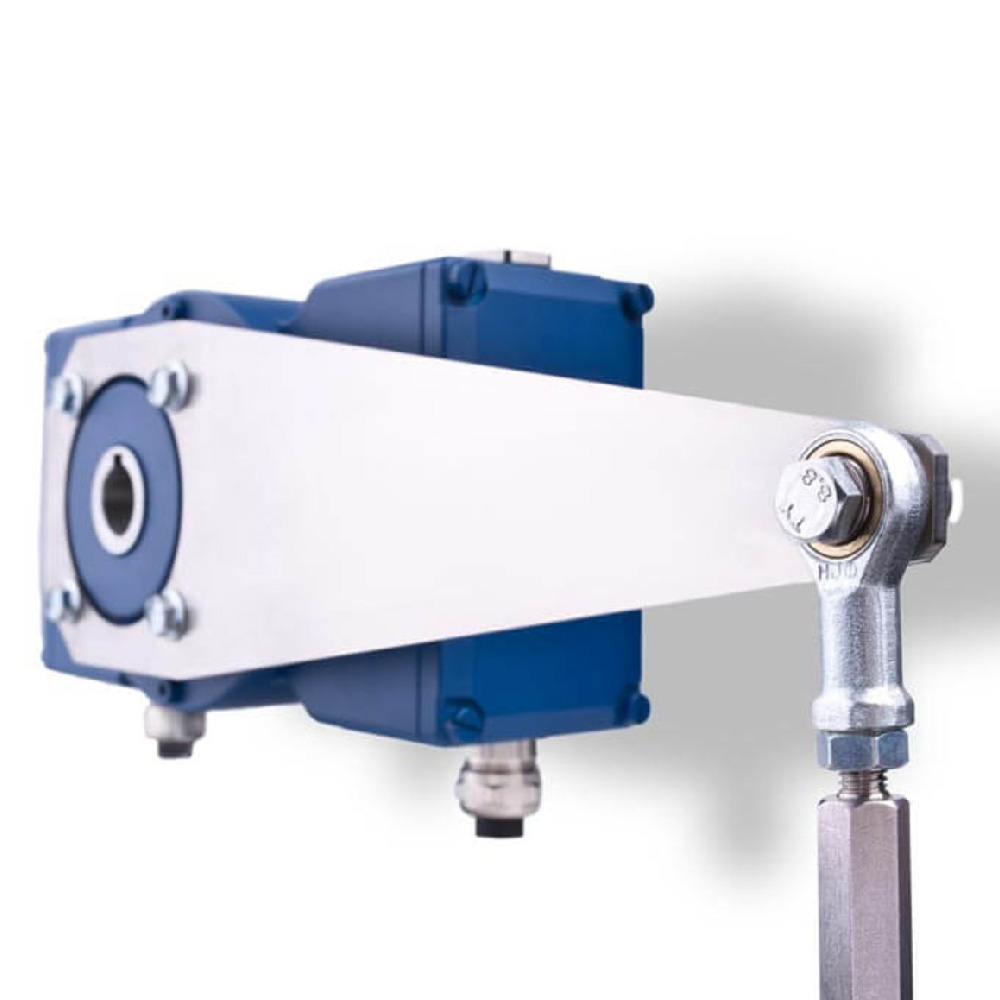

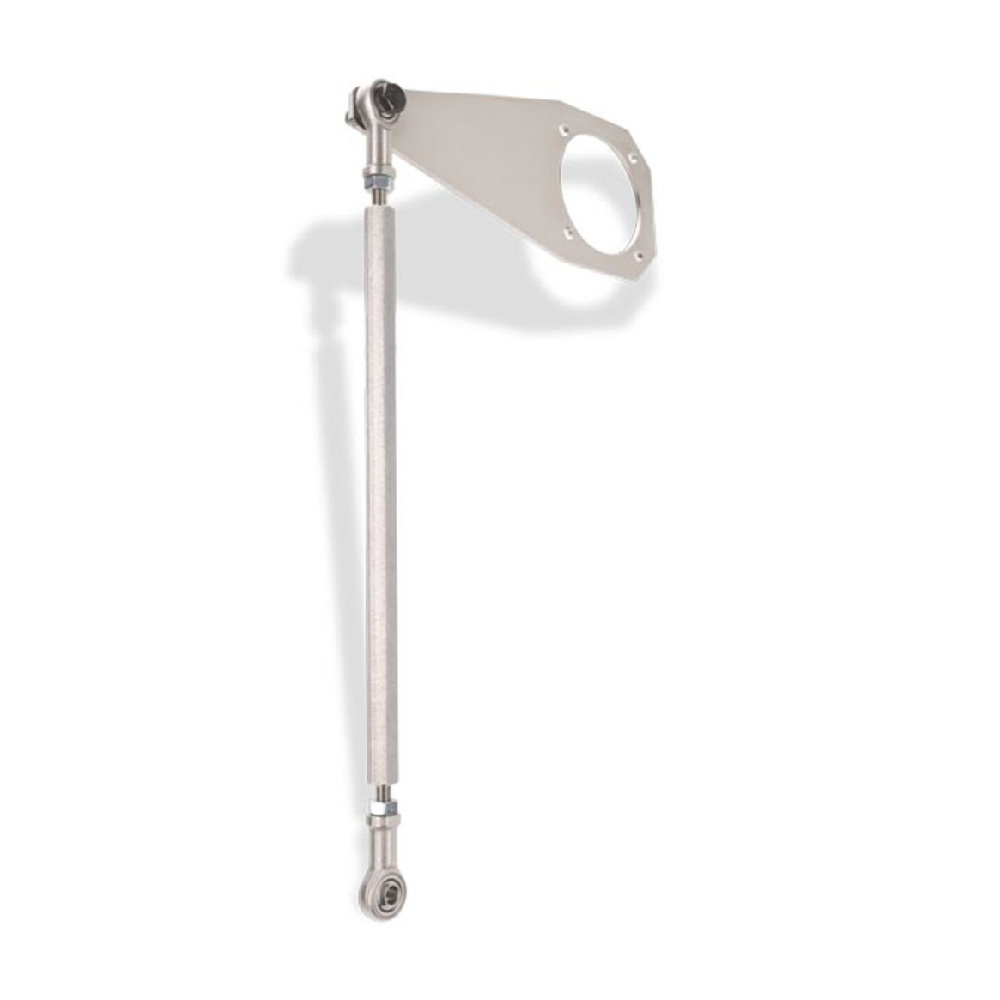

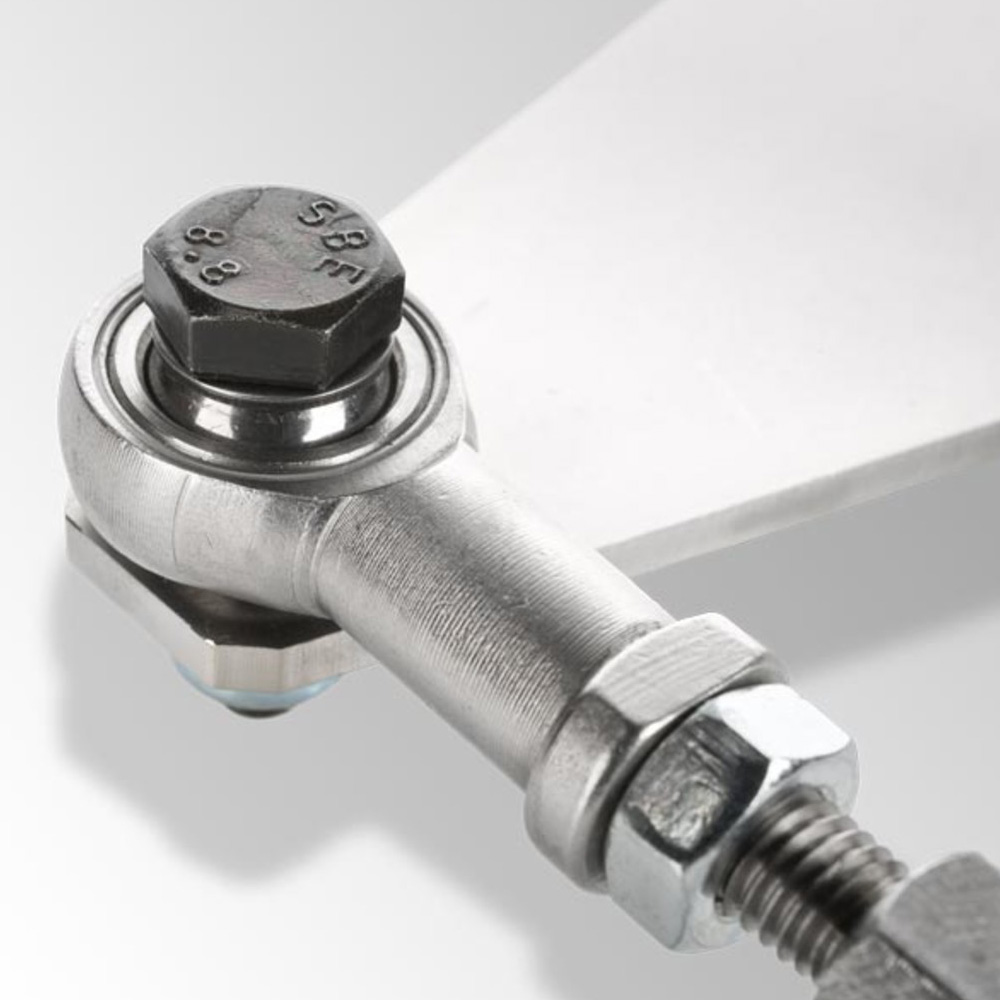

The torque brackets compensate tolerances resulting from radial eccentricity of the drive shaft, radial eccentricity resulting from backlash and axial movement of the drive shaft when attaching hollow shaft encoders. They are fitted with maintenance-free and corrosion proof high-performance link heads and torque bracket rods; the lever length and mechanical interface are customized to meet application requirements. They are also available as certified safety components, if required.
