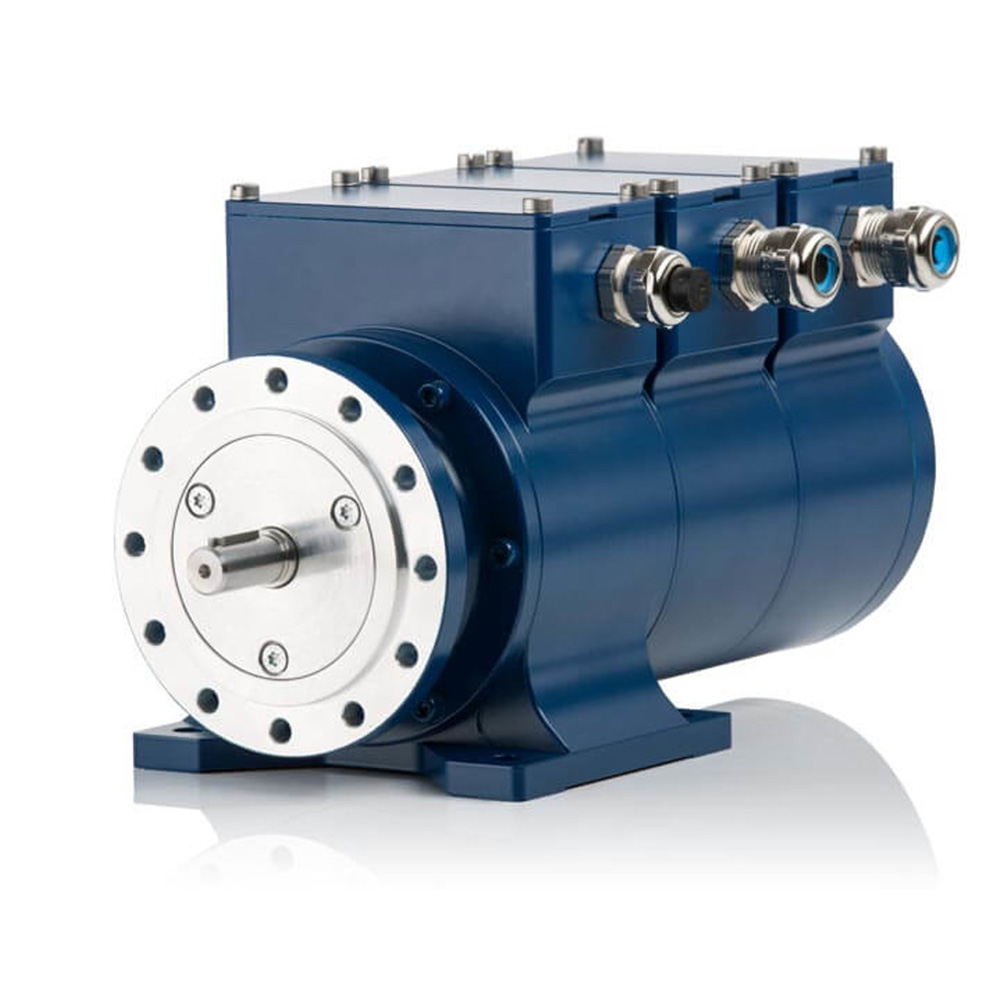

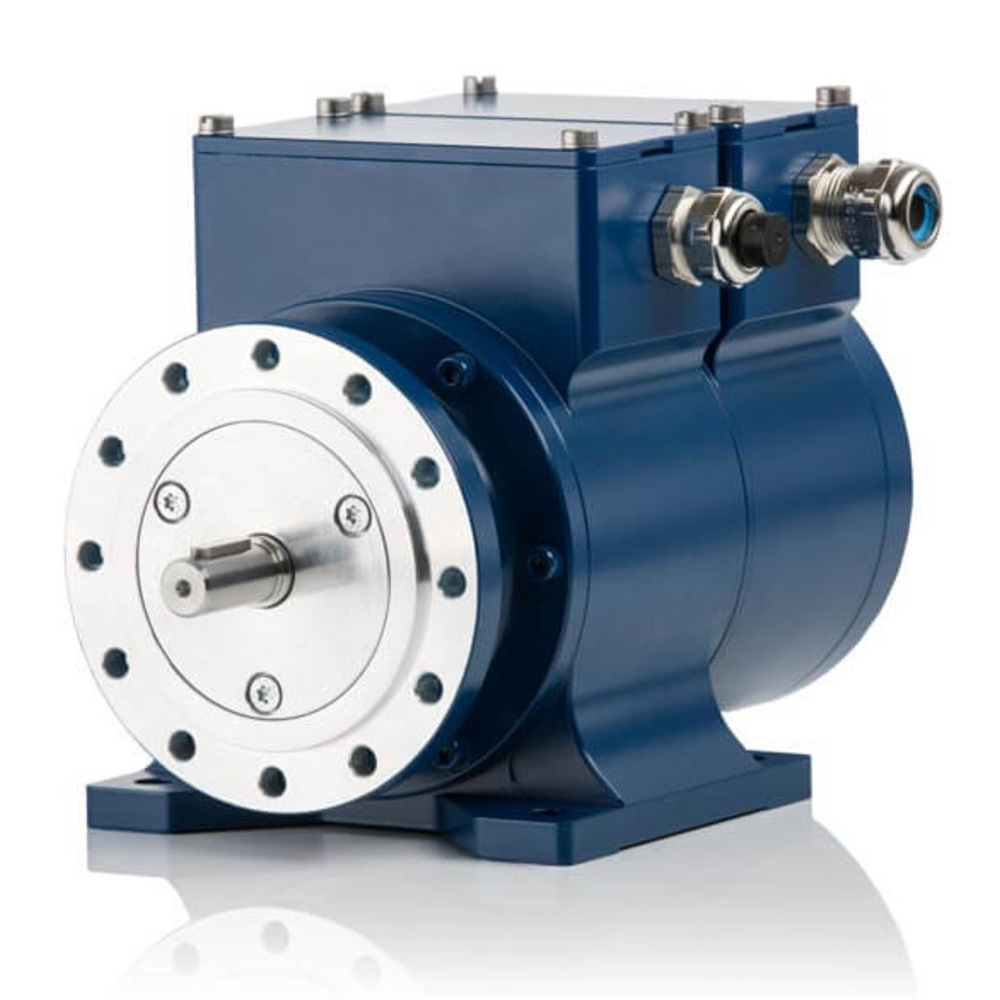

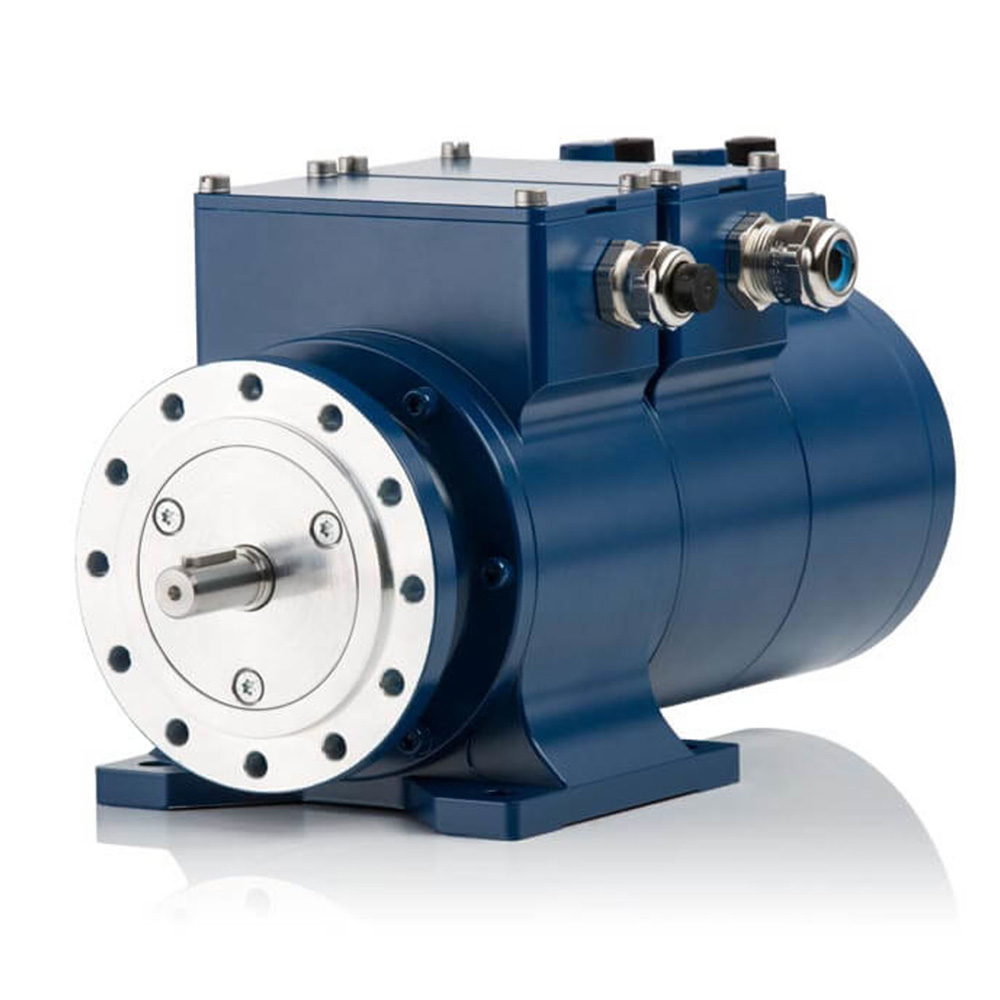

A modular encoder system with attached function modules in a robust housing
Position and speed monitoring, both optionally available with safety certification SIL 2 / PL d
Signal transmission via copper cable
Resolution: absolute 13 bit singleturn / 15 bit multiturn and incremental up to 4096 ppr
| Technical Data | |
| Attribute | Value |
| Supply voltage | 15-27 VDC |
| Resolution |
- Multiturn 15 bit (32768 rotations) - Singleturn 13 bit (8192 steps per rotation) |
| Switching outputs |
Speed and position switch modules (NO contact 5…230 V / 0.5 A AC/DC): - Speed switch (0.5-2520 rpm) - Position switch (max. 32768 rotations) - Failure switch Further switching functions on request |
| Signal outputs/Interfaces |
Basic unit (SCU): - Current output 4-20 mA (without SIL) - Incremental output 1024 / 4096 pulses configurable (without SIL) - Status output and error output Absolute value interface (bus module) UOC 40: - PROFIBUS-DP (without SIL): Resolution: 12 bit singleturn / 12 bit multiturn Absolute value interface (bus module) USC 42: - PROFIsafe via PROFIBUS-DP (SIL 2 / PL d): Resolution: 13 bit singleturn / 15 bit multiturn - PROFIsafe via PROFINET IO (SIL 2 / PL d) |
| Maximum rotation | Solid shaft: up to 2800 rpm |
| Electrical connection |
- Base module: Terminal box (copper cable) + USB interface - Switching module: Terminal box (copper cable) - Termination module: Fieldbus box |

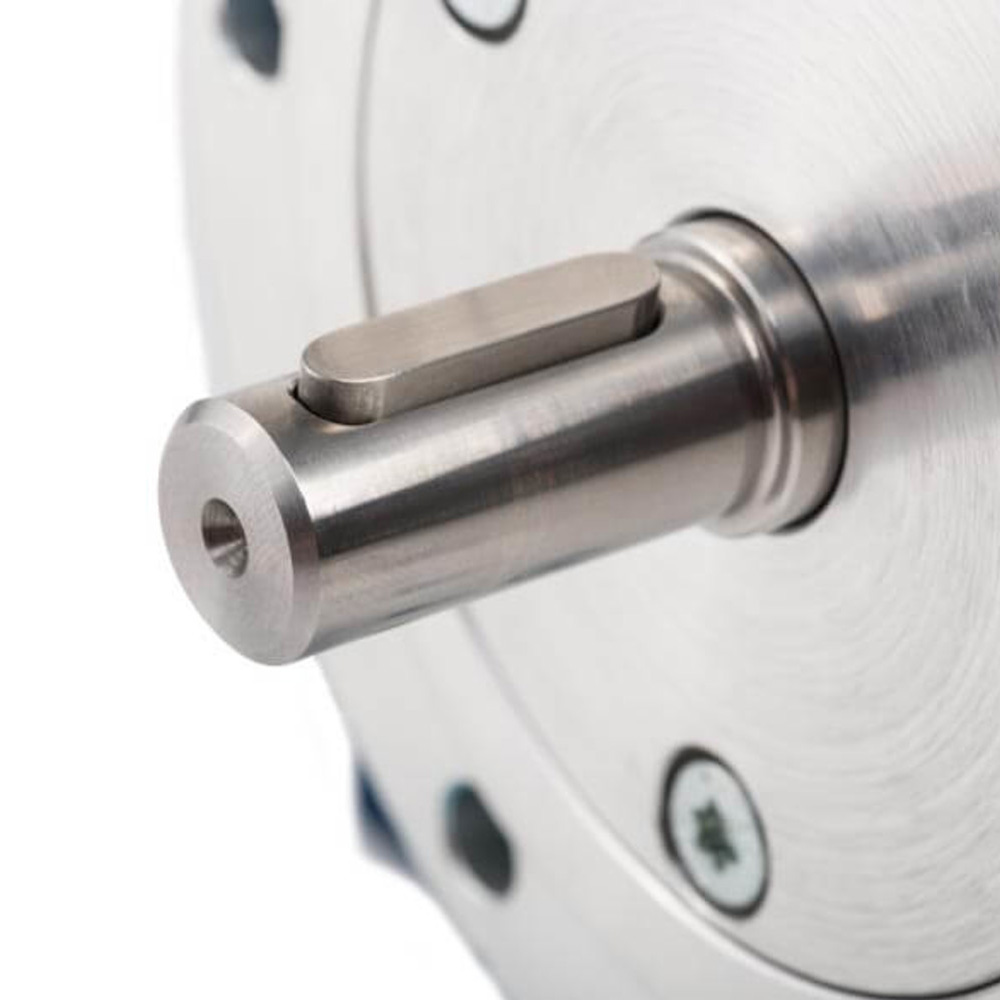

| Construction type / Ø shafts | Solid shaft (B5, B35) / Ø 14 mm with feather key |
| Device temperature range | -25 °C to +70 °C |
| Degree of protection | IP66 |
| Weight | Approx. 3.6 kg + 0.8 kg/module |
| Device options |
- Modularly extendable (compact combination of different electronic function modules) - SIL 2 (DIN EN 61508); PL d (DIN EN ISO 13849); Category 3 (DIN EN ISO 13849) with USC 42 |
| Mechanical options |
- Additional foot (solid shaft construction type) - MI: Saliferous environment |
| Special features and certificates | For USC 42: SIL 2 (DIN EN 61508); PL d (DIN EN ISO 13849); Category 3 (DIN EN ISO 13849), system-wide two channel architecture incl. internal cross-checking |
| The compact all-in-one systems | |

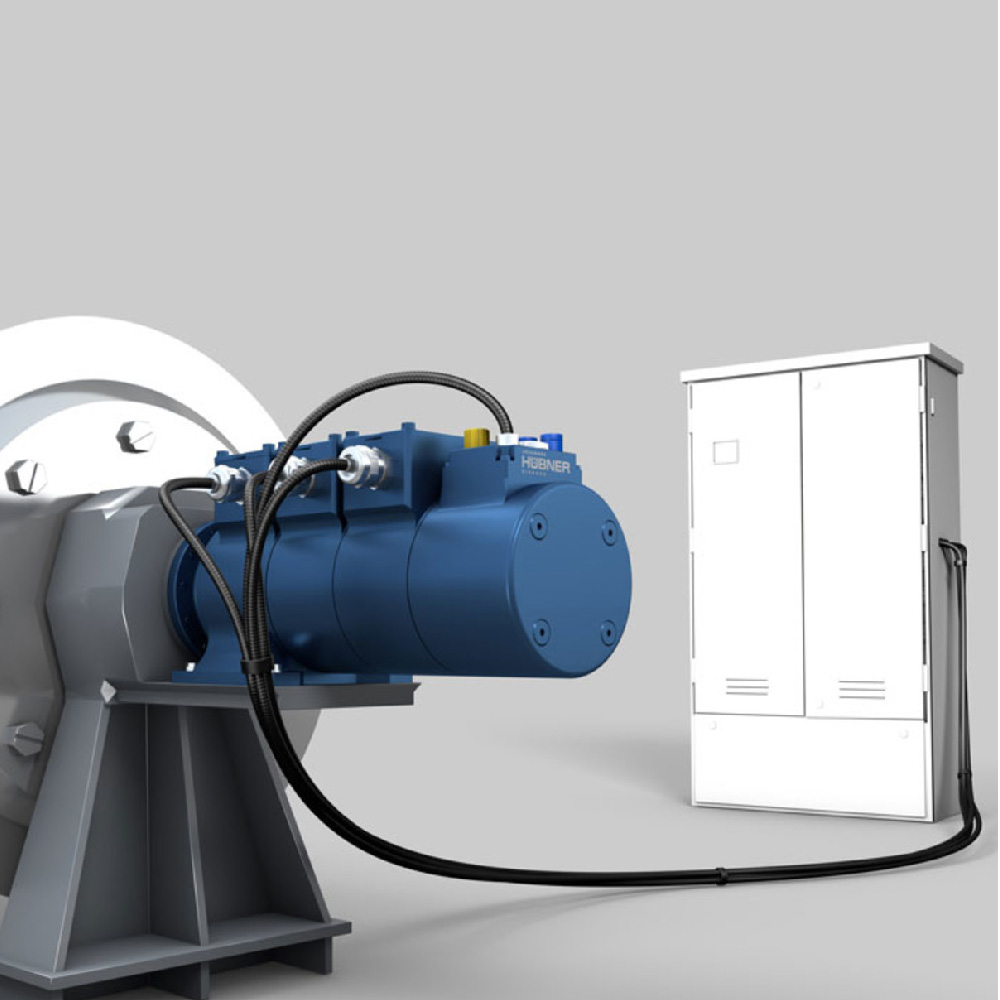

| The compact U-ONE(-SAFETY)-Compact universal encoder systems for speed and position monitoring improve performance by making optimal use of permitted speed ranges and fast and precise positioning. They combine different functions in a robust housing and are therefore ideal for the simple modernization of existing solutions when continuing to make use of legacy cabling or when there is no space in the switchboard for electronic function modules. The all-in-one systems are directly mounted onto the shaft that needs to be monitored. They therefore require no additional mechanical components such as distribution gears, distribution couplings or speed increasing gears and additionally offer higher accuracy. The simple parameter input and preset function after maintenance work ensure high system availability. The systems are optionally available with all components certified for use in safety applications with requirements up to SIL 2 / PL d. | |
